Automated Track Inspection is revolutionizing the way railways maintain their tracks, offering a more efficient and accurate alternative to traditional inspection methods. This technology uses advanced systems such as ultrasonic rail detectors and automated visual inspection tools to detect flaws and ensure track integrity.
In this article, we will explain how automated track inspection works, the technologies involved, its benefits, and the challenges it presents for railway operators. Whether you’re a railway professional or simply interested in the latest developments in rail safety, this guide will provide you with a clear understanding of this important innovation.
Traditional Track Inspection Methods
Before the advent of automated solutions, manual visual inspections were the standard method for ensuring the safety and reliability of railroad tracks. Inspectors would physically walk the tracks, visually checking for signs of wear, damage, or defects.
While this method has been effective for many years, it is time-consuming and often prone to human error. The process requires extensive manpower and typically involves lengthy downtime, especially when tracks are being inspected over long distances.
Limitations of Manual Methods
Despite their long-standing use, manual methods of track inspection come with several limitations. Human inspectors can miss subtle flaws or defects that may not be immediately visible, leading to potential safety risks.
Furthermore, these inspections are often inconsistent, with results varying based on the inspector’s experience and attention to detail. The process also tends to be slower and less thorough compared to automated alternatives, making it less suitable for modern rail operations that require more frequent and reliable inspections.
Advancements in Automated Track Inspection
With the growing need for more efficient and reliable track inspections, the rail industry has embraced advancements in Automated Track Inspection. These automated systems can quickly detect defects that might be missed by the human eye, significantly improving the accuracy and speed of track assessments.
Emergence of Automated Visual Inspection Technologies
One of the key developments in this area is the emergence of automated visual inspection technologies. These systems use high-resolution cameras and advanced image processing software to scan and analyze tracks for any visible defects.
Unlike manual inspections, automated visual inspections can cover vast distances in a fraction of the time, ensuring thorough checks without the need for human intervention.
Integration of Ultrasonic Rail Detectors
Another breakthrough in Automated Track Inspection is the integration of ultrasonic rail detectors. These tools use sound waves to detect internal flaws in the rails that may not be visible on the surface.
By sending high-frequency sound waves through the rail, ultrasonic systems can identify cracks, corrosion, and other issues that could pose a risk to track safety. This technology enhances the detection capabilities of automated systems, allowing for more accurate assessments of track conditions.
Role of NDT (Non-Destructive Testing) Equipment
Non-Destructive Testing (NDT) equipment plays a vital role in the automated inspection process. NDT methods, including ultrasonic and magnetic particle testing, enable the examination of railroad tracks without causing any damage to the materials.
These tools allow for a deeper understanding of the track’s structural integrity, identifying hidden issues that could lead to serious failures. By integrating NDT into automated systems, rail operators can ensure the long-term safety and reliability of their networks, making these tools essential for modern track inspection.
Key Technologies in Automated Track Inspection
Automated Track Inspection relies on a variety of advanced technologies that enable efficient and precise detection of track defects. These key technologies enhance the overall reliability of rail networks, ensuring tracks remain in optimal condition.
1. Ultrasonic Inspection Tools
Ultrasonic inspection tools are among the most widely used technologies in automated track inspection. These tools use sound waves to detect flaws within the rails that are not visible to the naked eye.
Ultrasonic waves are directed into the rail, and the resulting echoes are analyzed to identify any internal cracks, corrosion, or other defects. This method is particularly useful for detecting issues that could compromise the structural integrity of the track, making it one of the most reliable non-destructive testing methods in the industry.
2. Automated Ultrasonic Systems

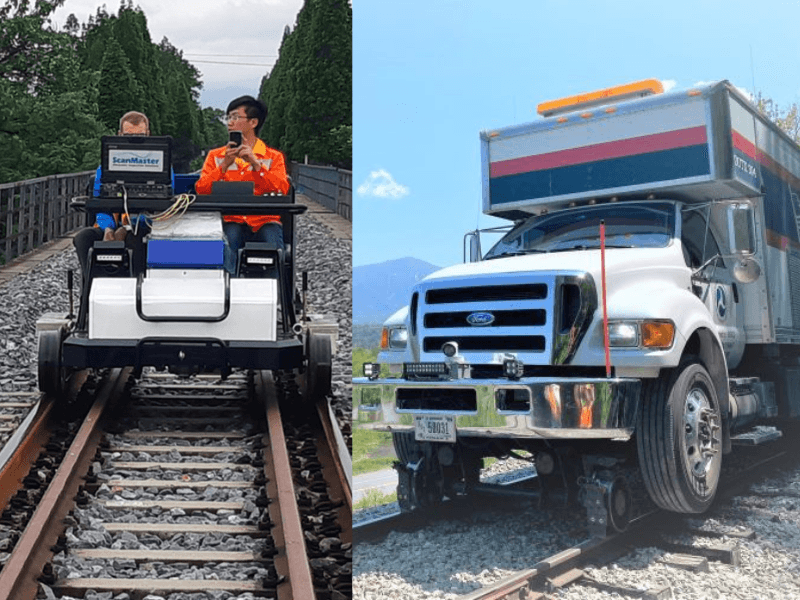

Automated ultrasonic systems take the traditional ultrasonic inspection technology a step further by automating the process. These systems are mounted on trains or specialized inspection vehicles, allowing for continuous and efficient rail inspections without the need for human involvement on-site.
As the train moves along the tracks, ultrasonic sensors scan the rails, sending real-time data to a central system for analysis. The automation of this process not only speeds up inspections but also reduces the potential for human error, ensuring consistent results across all inspections.
3. Rail Flaw Testers
Rail flaw testers are specialized devices designed to identify defects and irregularities in rail tracks. These testers work by using electromagnetic or ultrasonic waves to detect cracks, corrosion, and other potential hazards in the track’s surface.
Rail flaw testers can be incorporated into automated track inspection systems to perform both surface and subsurface analysis, identifying weaknesses that might lead to track failure. Their role in automated track inspection ensures that even the most subtle defects are detected before they pose a risk to train operations.
Benefits of Automated Track Inspection
The adoption of Automated Track Inspection offers numerous advantages over traditional manual inspection methods. These benefits not only improve the efficiency of track maintenance but also enhance safety and compliance across the railway industry.
1. Enhanced Accuracy and Consistency
Automated Track Inspection systems provide a level of accuracy and consistency that is difficult to achieve with manual inspections. Automated systems use advanced sensors and imaging technology to detect even the smallest defects in the track, ensuring no flaw is overlooked.
With automation, the risk of human error is minimized, and inspections are carried out with the same precision every time. This leads to more reliable track assessments, which is crucial for maintaining rail safety and preventing accidents.
2. Increased Inspection Frequency
One of the key advantages of automated track inspection is the ability to conduct inspections more frequently. Unlike manual inspections, which are labor-intensive and time-consuming, automated systems can inspect large sections of track in a fraction of the time.
This increased inspection frequency allows for a more proactive approach to track maintenance, identifying potential problems early before they escalate into serious issues. More frequent inspections also enable railway operators to monitor track conditions over time, ensuring ongoing safety and minimizing the risk of track-related incidents.
3. Improved Safety and Compliance
Safety is paramount in the railway industry, and automated track inspection plays a critical role in improving safety standards. With automated systems, track inspections are more thorough and reliable, helping to detect defects before they lead to accidents. Additionally, these systems help ensure compliance with regulatory standards by providing accurate records of inspections and track conditions.
Automated inspections also reduce the need for human inspectors to work directly on the tracks, which lowers the risk of accidents or injuries in hazardous environments. This leads to a safer, more compliant railway network for both passengers and operators.
Regulatory Framework and Standards
The regulation of track inspections is crucial to ensuring the safety and reliability of rail systems worldwide. Automated Track Inspection plays a significant role in meeting regulatory requirements, but it must be aligned with established safety standards and protocols.
Governments and regulatory bodies have set clear guidelines to ensure that rail operators maintain tracks in a condition that protects both passengers and cargo.
Overview of Relevant Regulations
There are several regulations that govern the inspection and maintenance of railroad tracks. These regulations often vary depending on the country or region, but they all focus on ensuring that rail operators conduct inspections regularly and maintain track integrity.
In the United States, for example, the Federal Railroad Administration (FRA) sets strict guidelines for track inspection and maintenance under its Track Safety Standards (TSS). These regulations outline the requirements for both visual and non-visual inspections, including the use of technologies like ultrasonic rail detectors and automated systems.
Similarly, other countries, such as those in the European Union, follow their own regulatory frameworks like the European Union Agency for Railways (ERA), which sets standards for track inspections, safety, and technology usage.
Compliance Requirements for Rail Operators
Rail operators must adhere to various compliance requirements to ensure they meet safety standards and minimize risks to passengers and cargo. Automated Track Inspection technology can help operators meet these compliance mandates by providing accurate, consistent, and documented inspections.
For example, automated systems can generate detailed reports that confirm inspections have taken place, providing proof of compliance for regulatory audits. Additionally, the use of automated systems ensures that inspections are conducted at regular intervals, helping operators maintain compliance with guidelines that specify how often tracks should be checked.
However, it is important for rail operators to stay up-to-date with evolving regulations, as safety standards and inspection requirements are continually updated.
The integration of new technologies, such as AI-based analysis or more advanced ultrasonic tools, must be in line with these changing regulatory frameworks to ensure that operators avoid penalties and stay compliant with all safety standards.
Challenges and Considerations
While Automated Track Inspection offers numerous benefits, it also comes with several challenges and considerations that rail operators must address for successful implementation.
From integrating new technologies into existing infrastructure to managing the large volume of data produced by automated systems, there are several factors to consider in ensuring these systems perform optimally.
1. Integration with Existing Infrastructure
One of the main challenges in adopting Automated Track Inspection is the integration of new technologies with existing infrastructure. Railways often have decades-old track systems and inspection protocols, making it difficult to introduce cutting-edge technologies without significant upgrades.
Automated inspection systems, particularly those that rely on sensors and ultrasonic tools, may need specialized equipment or new vehicles to conduct inspections effectively.
Additionally, ensuring compatibility between automated systems and older track maintenance equipment requires careful planning and investment. Rail operators must also train staff to work with new technologies and adapt their processes to the automation, which can present logistical hurdles.
2. Data Management and Analysis
Automated Track Inspection generates vast amounts of data, which can be both a blessing and a challenge. On the one hand, the data provided by automated systems offers invaluable insights into track conditions, identifying issues that may have otherwise gone unnoticed.
On the other hand, managing and analyzing this data effectively can be overwhelming. Rail operators must implement robust data management systems to process, store, and analyze the information in a timely manner.
This involves employing advanced software for data processing and ensuring that the results can be easily interpreted by maintenance teams. Additionally, integrating this data with existing track maintenance schedules and predictive analytics systems is essential to make informed decisions about track repairs and replacements.
3. Cost Implications
Another consideration for rail operators is the cost of implementing and maintaining automated track inspection systems. While these systems can provide long-term savings by reducing manual labor and minimizing track failures, the initial investment can be significant. Costs associated with purchasing inspection vehicles, upgrading infrastructure, and training personnel must be factored into the overall budget.
Additionally, ongoing maintenance and software updates for automated systems may contribute to long-term costs. Despite these costs, the overall value of automated track inspection such as fewer service disruptions, enhanced safety, and compliance with regulations may ultimately justify the investment.
However, rail operators must carefully evaluate their financial resources and consider the return on investment (ROI) before fully adopting automated technologies.
Conclusion
In conclusion, Automated Track Inspection is transforming the way railways maintain and ensure the safety of their tracks. By integrating advanced technologies such as ultrasonic inspection tools, automated ultrasonic systems, and rail flaw testers, rail operators can achieve higher accuracy, efficiency, and safety in their inspections.
This automated approach not only enhances the frequency and consistency of track checks but also helps meet regulatory requirements and improve compliance standards.
While there are challenges to integrating these systems with existing infrastructure and managing the large volumes of data they generate, the long-term benefits such as reduced downtime, improved safety, and cost savings make automated track inspection a crucial investment for the future of rail operations.
As the technology continues to evolve, it promises to further enhance the reliability and safety of railroad networks worldwide, making Automated Track Inspection an essential tool for the modern railway industry.
Key Points
- Automated Track Inspection is a modern technology that enhances the efficiency and accuracy of railroad track maintenance.
- Ultrasonic inspection tools use sound waves to detect internal flaws and cracks in rails, offering a reliable non-destructive testing method.
- Automated ultrasonic systems streamline the inspection process by using sensors on moving trains or specialized vehicles, enabling continuous, real-time data collection.
- Rail flaw testers identify defects like cracks and corrosion in the tracks, ensuring that both surface and subsurface issues are detected.
- Automated visual inspection technologies utilize high-resolution cameras and image processing software to scan and analyze tracks for visible defects quickly and accurately.
- Benefits of Automated Track Inspection include enhanced accuracy, increased inspection frequency, and improved safety and compliance with regulations.
- Regulatory frameworks such as the Federal Railroad Administration’s Track Safety Standards (TSS) set guidelines for inspections and maintenance, which automated systems help meet.
- Compliance requirements for rail operators include frequent, documented inspections, and automated systems help ensure these regulations are consistently followed
- Challenges in integrating Automated Track Inspection include aligning new technologies with existing infrastructure, managing large data sets, and the initial costs of implementing these systems.
- Data management and analysis play a critical role in maximizing the benefits of automated systems, as it allows for real-time decision-making and predictive maintenance for track safety.
FAQs
What challenges are associated with Automated Track Inspection?
Challenges include the initial costs of implementing the technology, integrating it with existing infrastructure, managing and analyzing the large volumes of data generated, and ensuring compliance with regulatory standards.
How does data management work in Automated Track Inspection systems?
These systems collect vast amounts of data on track conditions, which are then analyzed using advanced software to identify defects and prioritize maintenance. Effective data management ensures timely and accurate decision-making for track repairs.
Can Automated Track Inspection systems detect all types of track defects?
While Automated Track Inspection systems are highly effective at detecting a wide range of defects, including cracks, misalignments, and wear, they may not identify every possible issue. Therefore, they are often used in conjunction with manual inspections to ensure comprehensive track safety.
What is the future outlook for Automated Track Inspection technology?
The future of Automated Track Inspection technology includes advancements in AI and machine learning, which will further enhance defect detection capabilities, predictive maintenance, and overall efficiency in railway operations.
