Basic Principles of Ultrasonic Testing

Ultrasonic waves can reveal what the human eye cannot, hidden cracks, voids, or weaknesses deep within solid materials. The Basic Principles of Ultrasonic Testing form the foundation of this powerful inspection method used across industries to ensure safety, reliability, and structural integrity without causing damage.

As a leading technique under Non-Destructive Testing (NDT), Ultrasonic Testing (UT) relies on high-frequency sound waves to detect even the smallest internal flaws in metals, composites, and other materials.

This article explains the essential concepts behind Ultrasonic Testing, how sound waves travel through materials, the role of key equipment, and the different inspection techniques used in practice.

You’ll also learn about the wave modes, advantages, and limitations of UT, along with its real-world applications in industries like manufacturing, construction, and aerospace. By the end, you’ll have a clear grasp of the fundamental principles of Ultrasonic Testing and why it remains a trusted tool in modern quality assurance.

Core Principles of Ultrasonic Testing

At the heart of the Basic Principles of Ultrasonic Testing lies the science of how sound waves behave when they pass through solid materials. Ultrasonic Testing (UT), a key branch of Non-Destructive Testing (NDT), uses high-frequency sound waves, typically between 0.5 and 25 MHz, to probe the internal structure of a material without causing any damage.

When these waves encounter a boundary between two different materials or a flaw such as a crack or void, part of the wave reflects back while the rest continues to travel through. These returning echoes are then analysed to locate and measure the defect’s size and depth.

How Ultrasonic Waves Travel Through Materials

Sound waves move as mechanical vibrations through materials, and their behaviour depends on the properties of the medium. In UT, denser and more elastic materials allow sound waves to travel faster. The equipment records how long it takes for the sound wave to reach a flaw and return, helping inspectors calculate the flaw’s position and depth accurately.

Reflection, Refraction, and Attenuation

When ultrasonic waves hit a boundary between two materials, three key phenomena occur:

Reflection: Part of the wave bounces back toward the transducer. This reflection identifies discontinuities or boundaries within the test object.
Refraction: The wave bends as it moves between materials of different densities. This helps in angled inspections and complex geometries.
Attenuation: The wave loses strength as it travels through a material. This loss can indicate surface roughness or material inconsistencies.

Understanding these physical behaviours is essential to mastering the Principles of Ultrasonic Testing. But to make those principles work in real-world inspection, several measurable parameters must also be considered.

Key Parameters: Frequency, Velocity, and Wavelength

The precision of Ultrasonic Testing depends heavily on controlling three main parameters:

Frequency: High frequencies produce detailed images but penetrate less deeply. Lower frequencies reach deeper areas but with reduced resolution.
Velocity: Determined by material density and elasticity, it’s crucial for calculating distance and flaw depth.
Wavelength: Defines the minimum size of a detectable flaw; shorter wavelengths can reveal smaller imperfections.

Balancing these parameters ensures accurate, reliable inspection results. Yet principles alone are not enough, effective testing requires precise tools.

Main Components and Equipment

Every UT setup brings the Basic Principles of Ultrasonic Testing to life through specialised equipment. Each component plays a vital role in generating, transmitting, and analysing ultrasonic waves to detect flaws accurately.

Key Components in Ultrasonic Testing (UT)

A typical UT system includes the following main parts:

Transducer: Converts electrical energy into ultrasonic waves and vice versa. It can be a straight-beam transducer for perpendicular testing or an angle-beam transducer for weld inspection.
Pulser/Receiver: Generates electrical pulses to drive the transducer and amplifies the returning signals.
Display Unit: Displays received signals as waveforms (A-scan) that help inspectors interpret flaw size, location, and type.
Couplant: A gel or liquid that ensures efficient transmission of ultrasonic energy between the transducer and the test surface by eliminating air gaps.

These components must work together seamlessly. Even a small variation in setup can affect accuracy and lead to missed or false indications.

Calibration and Setup for Accurate Results

Proper calibration and setup are vital to obtain consistent, trustworthy readings. Calibration aligns the UT system’s measurements with known reference standards to ensure accuracy.

Key steps for calibration and setup:

Select the right transducer frequency and beam angle.
Apply couplant evenly for good contact.
Adjust gain, range, and sweep on the display unit.
Use reference blocks with known flaws for system verification.

When correctly calibrated, the Ultrasonic Testing system becomes a dependable inspection tool capable of detecting minute defects invisible to the naked eye.

The next step builds upon this foundation, applying these tools through Ultrasonic Inspection Techniques designed for different materials, structures, and inspection goals.

Ultrasonic Inspection Techniques

The Basic Principles of Ultrasonic Testing are applied through various inspection techniques that adapt to the material, structure, and type of defect being investigated. Each technique offers unique advantages in how ultrasonic waves are introduced, transmitted, and received within the test material. Selecting the right Ultrasonic Inspection Technique ensures accuracy and efficiency in Non-Destructive Testing (NDT).

Pulse-Echo Method

This is the most widely used technique in Ultrasonic Testing (UT). A single transducer sends a pulse into the material and then receives the reflected echoes from internal flaws or the back wall.
Advantages include:

Access to only one side of the test material.
Simple setup with fast results.
Ideal for weld inspection and corrosion monitoring.

However, interpreting the echo patterns requires skill and experience, especially when multiple reflections overlap.

Through-Transmission Method

In this method, two transducers are used, one to send the sound waves and another to receive them on the opposite side. The signal’s reduction in amplitude indicates the presence of a defect.

Best suited for:

Thin materials or laminates.
Detecting large or continuous defects.
Situations where internal echo analysis is difficult.

Its main drawback is that both sides of the material must be accessible, limiting its use in certain applications.

Angle-Beam Method

The angle-beam technique is essential for detecting defects that do not lie perpendicular to the sound path. The transducer introduces the wave into the material at an angle using a wedge, allowing for the detection of cracks and lack-of-fusion defects in welds.

Common uses:

Weld inspection in pipelines and pressure vessels.
Detection of surface and subsurface flaws near joints.

Contact, Immersion, and Phased-Array Techniques

The way ultrasonic energy is coupled into a material affects test accuracy and data clarity.

Contact Testing: The transducer is placed directly on the material surface using a couplant. It’s portable and suitable for on-site inspections.
Immersion Testing: The test object and transducer are submerged in water, ensuring consistent coupling and smooth scanning. Common in lab environments and automated systems.
Phased-Array Ultrasonic Testing (PAUT): Uses multiple small elements within one transducer to steer and focus sound beams electronically. It provides detailed imaging and faster coverage, making it ideal for complex geometries.

Each of these Ultrasonic Inspection Techniques is built upon a deep understanding of sound wave behaviour. And that brings us to another key aspect, the different types of waves used in Ultrasonic Testing and how they interact with materials.

Wave Modes in Ultrasonic Testing

Sound waves do not all behave the same way. In Ultrasonic Testing (UT), different wave modes travel through materials, each interacting uniquely with flaws and surfaces. Knowing these wave types is crucial to applying the Principles of Ultrasonic Testing effectively.

Longitudinal Waves

These are the most common waves used in UT. The particle motion is parallel to the direction of wave travel, allowing them to move efficiently through solid, liquid, and gaseous materials.

Shear Waves

Shear (or transverse) waves move particles perpendicular to the direction of travel. They cannot travel through liquids or gases but are highly sensitive to flaws.

Used for:

Detecting cracks, weld defects, and near-surface flaws.
Applications where direction and orientation of defects matter.

Surface and Plate Waves

Surface waves (Rayleigh waves) travel along the material surface, while plate waves (Lamb waves) move within thin materials.

Typical uses:

Surface waves for detecting surface-breaking cracks.
Plate waves for inspecting thin sheets and bonded materials.

How Wave Modes Affect Flaw Detection and Material Analysis

Each wave type interacts differently with materials, providing complementary insights:

Longitudinal waves detect deep internal flaws.
Shear waves reveal angled or oriented cracks.
Surface waves identify defects open to the surface.

By selecting the right wave mode and inspection method, technicians can create a complete picture of material integrity. But the story of Ultrasonic Testing doesn’t end here, the next step is applying this knowledge to real-world inspections, where precision, calibration, and interpretation come together to ensure safety and reliability.

Advantages, Limitations, and Applications

The Basic Principles of Ultrasonic Testing make it one of the most valuable tools in Non-Destructive Testing (NDT). Its precision, depth of penetration, and versatility allow industries to inspect materials without compromising strength or structure. However, like any inspection technique, Ultrasonic Testing (UT) also comes with practical challenges that must be managed carefully.

Advantages of Ultrasonic Testing (UT)

Ultrasonic Testing offers several benefits over other NDT methods such as radiography, magnetic particle testing, and dye penetrant inspection.

Key advantages include:

High accuracy and sensitivity: UT can detect very small internal flaws, cracks, or inclusions that may not be visible with other techniques.
Deep penetration: Capable of inspecting thick materials and multilayered structures.
Immediate results: Inspectors can view and interpret data in real time using digital displays.
No radiation hazard: Unlike radiographic testing, UT poses no health risks and requires minimal safety precautions.
Quantitative results: Provides information about flaw size, shape, and position.
Portable and versatile: Equipment can be used in the field or in controlled environments.

Because of these benefits, UT is widely used across industries such as aerospace, construction, oil and gas, and manufacturing. But even the most advanced systems face certain real-world constraints.

Limitations and Challenges in Ultrasonic Testing

Despite its advantages, Ultrasonic Testing has limitations that can affect accuracy and reliability if not addressed.

Common challenges include:

Surface preparation: Rough or dirty surfaces can interfere with sound transmission, requiring cleaning and smoothing before testing.
Couplant dependency: A consistent layer of couplant is necessary for sound transfer, especially in contact testing.
Operator skill: UT data interpretation requires trained and certified technicians. Misreading waveforms can lead to inaccurate conclusions.
Complex geometry issues: Irregular shapes or coarse-grained materials can scatter or distort ultrasonic waves.
Access limitations: Some methods, such as through-transmission, require access to both sides of the component.

These limitations do not diminish UT’s importance but highlight the need for expertise and proper calibration to ensure precise results. And when properly applied, the technique becomes indispensable in many inspection scenarios.

Applications of Ultrasonic Testing in Industry

Ultrasonic Testing is a cornerstone of modern inspection programs. Its flexibility allows it to adapt to diverse materials, environments, and inspection goals.

Common applications include:

Weld inspection: Detecting cracks, porosity, and lack of fusion in welded joints.
Thickness measurement: Evaluating pipe walls, tanks, and structural components to monitor wear and corrosion.
Corrosion detection: Identifying internal corrosion or pitting in ageing infrastructure such as pipelines and vessels.
Composite testing: Assessing integrity of advanced materials used in aerospace and automotive sectors.
Bond quality checks: Verifying adhesive or welded joints in layered structures.

Across these applications, the Principles of Ultrasonic Testing ensure reliable detection of internal flaws long before they cause failures.

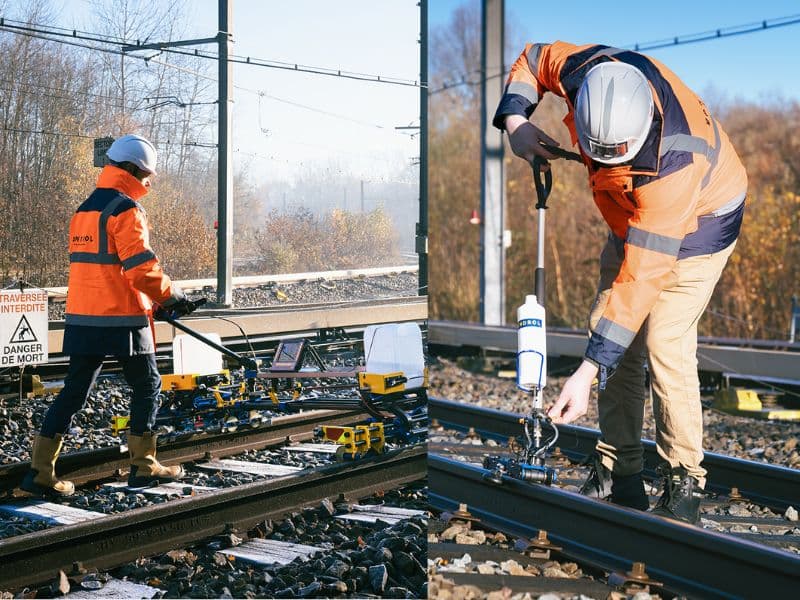

Overall, understanding the basics of ultrasonic testing is key to mastering railway inspection and safety. Our ultrasonic examination services apply these principles to detect internal defects with accuracy, while our Level III services ensure expert evaluation and compliance. Enhance your inspection reliability with our professional NDT solutions.

Conclusion

The Basic Principles of Ultrasonic Testing highlight why this method remains one of the most trusted techniques in Non-Destructive Testing (NDT). By using high-frequency sound waves, Ultrasonic Testing (UT) allows inspectors to detect hidden flaws, measure material thickness, and assess structural integrity, all without causing damage. Its ability to deliver precise, real-time results makes it essential in industries where safety and reliability cannot be compromised.

From the propagation of sound waves and reflection principles to the use of advanced inspection techniques such as Phased-Array Ultrasonic Testing (PAUT), UT combines science and technology to ensure consistent performance.

While it requires proper calibration and skilled operators to overcome challenges like surface irregularities or complex geometries, its advantages far outweigh its limitations.

In essence, the Principles of Ultrasonic Testing provide more than a testing method, they establish a standard for quality assurance and preventive maintenance across sectors such as aerospace, construction, and energy.

As technology continues to advance, ultrasonic inspection will only become more accurate, efficient, and indispensable in safeguarding the integrity of materials and structures worldwide.

Key Points

Ultrasonic Testing (UT) is a Non-Destructive Testing (NDT) method that uses high-frequency sound waves to detect internal flaws, measure thickness, and assess material integrity without causing damage.
The Basic Principles of Ultrasonic Testing involve the transmission of ultrasonic waves through materials, where reflections from flaws or boundaries are analysed to identify defects.
Sound wave behaviour in UT depends on material properties such as density and elasticity, which determine wave velocity and penetration depth.
The key physical interactions in UT are reflection, refraction, and attenuation, which reveal information about material structure and internal discontinuities.
Important wave parameters, frequency, velocity, and wavelength, influence detection accuracy and depth of penetration, requiring careful selection for each inspection.
The main UT components include the transducer, pulser/receiver, display unit, and couplant, all of which must be properly calibrated for accurate results.
Major Ultrasonic Inspection Techniques include pulse-echo, through-transmission, and angle-beam methods, along with contact, immersion, and Phased-Array Ultrasonic Testing (PAUT) approaches.
Wave modes such as longitudinal, shear, and surface waves each interact differently with materials, helping identify flaws based on orientation and depth.
UT offers advantages like high accuracy, deep penetration, and real-time results, but also faces limitations including surface preparation needs, operator skill dependency, and geometric challenges.
UT’s applications span multiple industries, including weld inspection, corrosion monitoring, and composite testing, making it a critical tool for ensuring safety, quality, and reliability in modern engineering.

FAQs

What are the limitations of ultrasonic testing?
Ultrasonic testing requires skilled operators, careful surface preparation, and access for probe placement. It may struggle with coarse-grained materials or complex geometries that scatter sound waves and reduce accuracy.

What types of waves are used in ultrasonic testing?
The main wave modes used are longitudinal, shear, and surface waves. Each interacts differently with materials, longitudinal waves penetrate deeply, shear waves detect angled flaws, and surface waves inspect near-surface defects.

How is ultrasonic testing different from other NDT methods?
Unlike methods such as radiography or magnetic particle testing, ultrasonic testing does not use radiation or magnetic fields. It provides precise internal defect information in real-time, making it safer and faster for many inspections.

Why is calibration important in ultrasonic testing?
Calibration ensures that the ultrasonic equipment provides accurate readings. It aligns instrument settings with known reference standards so that distance, depth, and flaw size measurements are consistent and trustworthy.
