Which method can detect hidden cracks in a structure, without breaking it apart? That’s where Non-Destructive Testing Methods come into play. These testing techniques help inspect materials and components without causing any damage, making them essential in industries like construction, aviation, oil and gas, and manufacturing.
This article will walk you through a comparison of key NDT methods, including ultrasonic, magnetic particle, radiographic, and more. You’ll learn about the types of non-destructive testing, their pros and cons, and how to choose the right technique for your needs.
We’ll also break down how ultrasonic testing compares to magnetic particle testing, so you can see the differences clearly. Whether you’re new to NDT or need a simple side-by-side look, this guide is built to help.
Types of Non‑Destructive Testing
There are many Non-Destructive Testing Methods used today to inspect materials and components without causing damage. These methods play a vital role in ensuring the safety and reliability of structures across sectors like construction, aerospace, and energy. Each method has its unique approach and is suited for different situations.
Let’s explore the most widely used types of non-destructive testing, starting from the simplest and moving toward the more advanced techniques.
1. Visual Testing (VT)
Visual Testing is the most straightforward NDT method. It involves checking the surface of an object for visible signs of damage or irregularity using the naked eye or visual tools like magnifying glasses, cameras, or borescopes.
- Best for spotting cracks, corrosion, surface misalignment, or welding defects
- Often used as a first step before applying other NDT techniques
Pros:
- Low cost and fast
- No specialised equipment needed
Cons:
- Limited to surface flaws
- Depends heavily on the inspector’s experience
It’s simple, but when internal defects are suspected, more advanced methods are needed.
2. Ultrasonic Testing (UT)
Ultrasonic Testing uses high-frequency sound waves to detect internal flaws. These waves travel through the material and reflect back from cracks or voids, creating patterns that reveal hidden problems.
- Commonly used for weld inspections, thickness measurements, and flaw detection inside metals or composites
- Suitable for both small parts and large structures
Pros:
- Excellent for internal defect detection
- Can be used on thick materials
- Delivers real-time results
Cons:
- Requires clean, smooth surfaces
- Needs a skilled operator
When comparing ultrasonic vs magnetic particle testing, UT stands out for deep flaw detection, but surface-level detection requires a different approach.
3. Radiographic Testing (RT)
Radiographic Testing involves using X-rays or gamma rays to create images of the interior of a component. These images show flaws that may not be visible on the surface.
- Often applied in the inspection of pipelines, castings, and pressure vessels
- Ideal for identifying internal voids, inclusions, or welding defects
Pros:
- Provides a clear, permanent image
- Can detect both internal and surface-connected flaws
Cons:
- Involves radiation, strict safety protocols required
- Equipment is expensive and testing is slower
It’s powerful and precise, but sometimes you need a method that doesn’t involve radiation and works faster on conductive surfaces.
4. Eddy Current Testing (ET)
Eddy Current Testing is based on electromagnetic induction. It’s highly effective for detecting surface and near-surface defects in conductive materials.
- Widely used in aerospace, power plants, and tubing inspections
- Also applied to measure coating thickness
Pros:
- Fast and contactless
- Very sensitive to surface cracks
- No need for consumables
Cons:
- Only works on conductive materials
- Interpretation of results can be complex
When the material is ferromagnetic, though, another method may be a better fit.
5. Magnetic Particle Testing (MT)
Magnetic Particle Testing is one of the most common Non-Destructive Testing Methods for inspecting ferromagnetic materials. It involves magnetising the component and applying fine magnetic particles to detect surface or near-surface cracks.

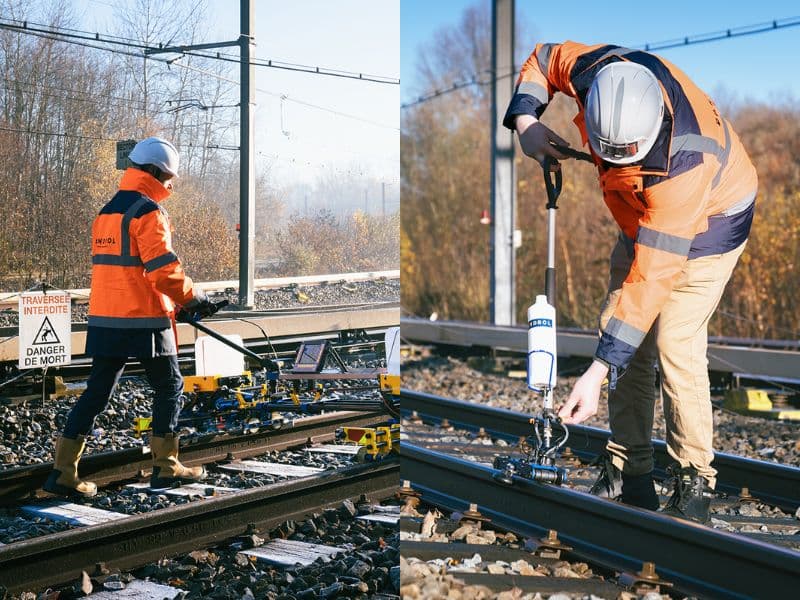

- Used for checking welds, structural steel components, and railway parts
- Especially effective for detecting fatigue cracks or sharp discontinuities
Pros:
- Easy to perform and low cost
- Highly reliable for near-surface flaws
Cons:
- Only works on magnetic materials
- Surface cleaning is often necessary
6. Liquid Penetrant Testing (PT)
Liquid Penetrant Testing uses a visible or fluorescent dye that seeps into surface cracks. After removing the excess dye and applying a developer, defects become visible.
- Great for detecting hairline cracks in non-porous surfaces
- Common in aerospace, automotive, and manufacturing industries
Pros:
- Inexpensive and simple
- Effective for very fine surface cracks
Cons:
- Only detects surface flaws
- Requires thorough cleaning before and after testing
7. Acoustic Emission (AE)
Acoustic Emission captures sound waves emitted by materials under stress. It’s often used to monitor structures like bridges or pressure vessels in real time.
- Excellent for detecting active flaws or crack propagation
- Helpful in structural health monitoring systems
Pros:
- Detects dynamic flaws as they happen
- Can cover large areas with multiple sensors
Cons:
- Sensitive to noise interference
- Requires expert analysis
AE listens to how a structure responds to stress, now let’s switch to a method that detects how a structure responds to pressure loss.
8. Leak Testing
Leak Testing focuses on finding flaws that let fluids or gases escape. It’s used in pressurised systems and sealed containers.
- Suitable for pipelines, valves, tanks, and HVAC systems
- Methods include pressure drop tests, bubble testing, and tracer gas methods
Pros:
- Highly sensitive
- Useful for safety-critical applications
Cons:
- Some methods are time-consuming
- Usually limited to closed, pressurised systems
If heat variation can signal a defect, then the next method might be exactly what you need.
9. Infrared/Thermographic Testing
Infrared Testing, also called Thermographic Testing, detects temperature differences on a material’s surface using thermal cameras. These differences can reveal defects like delaminations, moisture intrusion, or electrical faults.
- Common in building inspections, electrical maintenance, and composite material checks
Pros:
- Fast and non-contact
- Detects hidden anomalies indirectly
Cons:
- Surface must be accessible and unobstructed
- Environmental conditions can affect results
Now that we’ve explored the key types of non-destructive testing, it’s time to compare them side by side to understand which suits what purpose.
NDT Techniques Comparison
Not all Non-Destructive Testing Methods are created equal. The right choice depends on several factors, including the material type, flaw location, urgency of results, and complexity of equipment.
Here’s how the most widely used NDT techniques compare:
- Visual Testing (VT): Quick and affordable but only useful for surface flaws.
- Ultrasonic Testing (UT): Excellent for internal defect detection in metals and composites; requires trained operators.
- Radiographic Testing (RT): Offers detailed internal imaging, but is costly and requires strict safety precautions.
- Eddy Current Testing (ET): Great for detecting surface cracks in conductive materials; very fast but limited in use.
- Magnetic Particle Testing (MT): Ideal for finding surface and near-surface flaws in ferromagnetic materials.
- Liquid Penetrant Testing (PT): Best for revealing fine surface cracks in smooth, non-porous surfaces.
- Acoustic Emission (AE): Real-time monitoring of stress-related flaws in structures; ideal for long-term use.
- Leak Testing: Focused on pressure loss; essential for tanks, valves, and pipelines.
- Infrared Testing: Detects thermal variations that may indicate subsurface flaws; fast and efficient but environment-sensitive.
Each method has its own strengths and drawbacks. Your choice will depend on the kind of defect you need to find, how deep it is, and the type of material you’re inspecting.
Pros and Cons of Each Method
Each of the Non-Destructive Testing Methods offers unique advantages, and comes with its own set of trade-offs. Choosing the right one often depends on the type of flaw you’re looking for, the material under inspection, and how much time and resources you have. Here’s a closer look at the pros and cons of NDT methods, broken down by technique.
1. Ultrasonic Testing (UT)
Ultrasonic Testing stands out for its ability to detect internal flaws with great precision. It’s particularly useful for metals and composites and can measure thickness with high accuracy.
Pros:
- Penetrates deep into materials
- Excellent for detecting internal defects
- Provides real-time results
Cons:
- Requires skilled setup and trained operators
- May miss cracks if they’re oriented at unfavourable angles
- Surface condition affects accuracy
While UT is powerful, it’s not always ideal for quick, surface-level inspections. That’s where MT comes in.
2. Magnetic Particle Testing (MT)
Magnetic Particle Testing is one of the most efficient and widely used NDT techniques for ferromagnetic materials. It excels at detecting surface and near-surface defects in welds and castings.
Pros:
- Fast and easy to use
- Reliable for surface-level flaws
- Equipment is portable and affordable
Cons:
- Only works on ferromagnetic materials
- Requires proper surface preparation
- Limited to near-surface inspections
It’s a great choice for routine checks on steel structures, but for permanent records or more detailed analysis, another method might suit better.
3. Radiographic Testing (RT)
Radiographic Testing is valued for its ability to reveal internal flaws and preserve a permanent image record. However, the need for radiation protection and slower processing times make it more specialised.
Pros:
- Detects both internal and surface-connected flaws
- Offers a clear visual record for documentation
- Suitable for complex assemblies
Cons:
- Involves X-ray or gamma radiation, strict safety required
- Slower and more expensive
- Not ideal for frequent or quick inspections
When accuracy and documentation matter more than speed, RT proves its worth.
4. Eddy Current Testing (ET)
Eddy Current Testing is highly effective for inspecting conductive materials. It works without physical contact and is commonly used for tubing, surface cracks, and coating thickness checks.
Pros:
- Very quick and contactless
- Sensitive to small surface flaws
- Excellent for conductive materials
Cons:
- Limited penetration, can’t detect deep flaws
- Requires careful calibration and interpretation
- Only works on conductive materials
ET is best when surface inspection speed matters, but for deeper insights, other methods are needed.
5. Liquid Penetrant Testing (PT)
Liquid Penetrant Testing is among the simplest and most cost-effective ways to find fine surface cracks. It’s widely used in routine maintenance checks across industries.
Pros:
- Low-cost and easy to perform
- Good for detecting small surface cracks
- Minimal equipment needed
Cons:
- Cannot detect subsurface flaws
- Requires thoroughly clean, smooth surfaces
- May miss flaws on rough or porous materials
PT is a great entry-level NDT option, but only if surface access is sufficient.
6. Visual Testing (VT)
Visual Testing is the first line of defence in most inspections. Though limited, it’s fast, low-cost, and useful for identifying obvious defects.
Pros:
- Extremely cost-effective
- Easy to perform
- Requires no advanced equipment
Cons:
- Detects only visible surface flaws
- Prone to human error
- Doesn’t provide any internal information
When paired with other Non-Destructive Testing Methods, VT becomes an essential starting point.
7. Acoustic Emission (AE), Leak Testing, and Infrared Testing
These advanced NDT techniques offer niche but critical benefits.
Acoustic Emission (AE):
- Pros: Real-time flaw detection over large structures
- Cons: Interpreting signals requires expertise
Leak Testing:
- Pros: Vital for gas/fluid system integrity
- Cons: Limited to pressurised components
Infrared/Thermographic Testing:
- Pros: Fast and contactless; great for electrical inspections
- Cons: Requires good environmental conditions and surface visibility
Now that we’ve broken down the pros and cons, the real decision lies in choosing between similar methods. The next section compares two of the most widely debated options.
Ultrasonic vs Magnetic Particle Testing
Choosing between Ultrasonic Testing (UT) and Magnetic Particle Testing (MT) depends on several key factors. Both are widely used Non-Destructive Testing Methods, but each serves a distinct purpose.
Here’s how they stack up across four key criteria:
Flaw Detection Capability
- UT: Detects deep, internal flaws and provides accurate thickness measurements
- MT: Best for surface and near-surface cracks, especially in welds and joints
If you’re dealing with critical internal issues, UT is the better choice. For surface cracks, especially in steel structures, MT is highly reliable.
Speed and Ease of Use
- UT: Requires calibration and an experienced operator
- MT: Fast to set up and easy to perform in the field
When speed is key, such as in routine field checks, MT offers a big advantage.
Cost and Equipment
- UT: Involves more complex, expensive equipment
- MT: Simple, portable, and more budget-friendly
UT may provide better detail, but MT is far more accessible for regular inspections.
Material Limitations
- UT: Works on a wide range of materials
- MT: Limited to ferromagnetic metals
If you’re working with non-ferrous alloys or composites, MT is off the table, UT is your go-to.
If you need detailed insights into internal flaws and can afford skilled technicians, go with Ultrasonic Testing. For quick, cost-effective checks on steel or iron components, Magnetic Particle Testing remains a top choice.
How to Choose the Right NDT Method
Selecting the most suitable Non-Destructive Testing Method is critical to achieving reliable results. With a variety of NDT techniques available, choosing the right one depends on several factors related to the inspection scenario. This section outlines the key considerations to help guide your decision.
Flaw Type: Surface vs Internal
Different types of non-destructive testing are designed to detect different kinds of flaws. Knowing the nature and location of possible defects will narrow your options quickly.
- Surface flaw detection:
Use methods like Visual Testing (VT), Liquid Penetrant Testing (PT), or Magnetic Particle Testing (MT). These are ideal for cracks, pits, and corrosion on or near the surface. - Internal flaw detection:
Select techniques such as Ultrasonic Testing (UT), Radiographic Testing (RT), or Acoustic Emission (AE). These methods penetrate deeper and are suited for identifying hidden voids, inclusions, or cracks.
Failing to match the method to the flaw type can result in missed defects, posing safety and operational risks.
Material Compatibility
Not every NDT method works on every material. Material type plays a vital role when making an NDT techniques comparison.
- Ferromagnetic metals: MT is effective but limited to iron-based alloys
- Conductive materials: ET works best on these but not on plastics or ceramics
- Dense or composite materials: UT and RT are often the best choices
Choosing a method that complements the material’s properties ensures accurate flaw detection and reduces false readings.
Speed, Portability, and Application Environment
How quickly do you need results? Are you working on-site or in a controlled environment?
- Fast, portable methods: MT, ET, and VT are ideal for field inspections and urgent checks
- More detailed, time-intensive methods: UT and RT may require controlled environments and skilled technicians
Balancing speed and accuracy is essential, especially when inspections are part of ongoing operations or scheduled shutdowns.
Cost and Skill Level Required
Budget constraints and technician availability also affect which Non-Destructive Testing Methods are feasible.
- Lower cost, minimal training needed: VT, PT
- Moderate investment and training: MT, ET
- High cost, specialist skills required: UT, RT
While low-cost methods are appealing, they may not provide the depth of information needed for critical applications.
Combining NDT Methods
Relying on a single method may not always deliver a complete picture. In many cases, combining multiple Non-Destructive Testing Methods provides better coverage and increases inspection reliability. This approach, known as multi-method testing, is common in safety-critical industries.
Why Combine Testing Methods?
No single technique can detect every flaw across all materials. Some methods are limited by depth, while others might miss fine cracks or require ideal conditions. Combining techniques helps overcome these limitations.
Benefits of combining methods:
- More accurate results through cross-verification
- Improved detection of both surface and internal flaws
- Reduced chances of missed or misidentified defects
- Compliance with industry regulations and quality standards
Common Method Combinations
Here are a few effective pairings widely used in real-world applications:
- VT + PT: Ideal for surface crack inspections during routine maintenance
- VT + PT + UT: Common in weld inspections, ensuring both surface and internal coverage
- MT + RT: Used in pipelines and pressure vessels to cover different flaw depths and orientations
Combining methods ensures that both minor and critical flaws are detected before they lead to operational failure.
When Should You Combine Methods?
You may want to use more than one NDT method in the following situations:
- Components where safety and reliability are non-negotiable
- Inspection of complex materials or welds
- Verification required by regulatory bodies or clients
- Critical assets nearing end-of-life or post-repair validation
Although multi-method testing may involve higher costs and time, the payoff is greater confidence in the integrity of your equipment and structures.
Conclusion
Non-Destructive Testing Methods play a critical role in ensuring the safety, quality, and longevity of materials and structures across industries. From surface-level cracks to deeply embedded flaws, each NDT technique offers unique strengths, whether it’s the high penetration of Ultrasonic Testing or the simplicity of Visual Inspection.
As explored in this article, understanding the types of non-destructive testing, their advantages and limitations, and how they compare helps in selecting the right method for the job.
Factors like flaw location, material type, inspection speed, and cost must all be considered during selection. In many cases, combining multiple methods provides a more complete and reliable picture, especially in high-risk or regulated environments.
Choosing the correct NDT approach isn’t just a technical decision, it’s a strategic one. With the right method or combination in place, organisations can catch defects early, avoid costly failures, and maintain a strong safety record. Whether you’re inspecting a pipeline, weld, aircraft component, or pressure vessel, using the right NDT techniques makes all the difference.
Key Points
- Non-Destructive Testing (NDT) Methods are essential for detecting flaws in materials without causing damage, ensuring safety and quality in critical industries.
- Common NDT types include Visual Testing, Ultrasonic Testing, Radiographic Testing, Magnetic Particle Testing, Liquid Penetrant Testing, Eddy Current Testing, Acoustic Emission, Leak Testing, and Infrared Testing.
- Visual Testing (VT) is the most basic method, offering low-cost surface inspections but lacking the ability to detect internal flaws.
- Ultrasonic Testing (UT) is ideal for locating internal defects with high accuracy but requires skilled operators and complex equipment.
- Radiographic Testing (RT) can reveal internal flaws and provides permanent records, though it involves safety risks due to radiation.
- Magnetic Particle Testing (MT) and Eddy Current Testing (ET) are quick and effective for surface and near-surface flaws but are limited by material type.
- Liquid Penetrant Testing (PT) is simple and cost-effective for surface cracks, but it only works on clean, non-porous surfaces.
- Each NDT method has pros and cons based on flaw type, material compatibility, cost, speed, and operator training requirements.
- Ultrasonic Testing vs Magnetic Particle Testing shows that UT is better for internal flaws and versatile materials, while MT is quicker and easier for surface defects in ferromagnetic metals.
- Combining NDT methods, such as VT + PT + UT, can provide more comprehensive results, especially in high-risk or regulated inspection scenarios.
FAQs
How do Non-Destructive Testing Methods differ from destructive testing?
Destructive testing (DT) applies stress until a part fails to assess its properties. In contrast, NDT inspects reliability without harming the material, making it ideal for ongoing use and cost efficiency.
Which NDT method is best for finding internal flaws?
For internal defects, Ultrasonic Testing (UT) and Radiographic Testing (RT) are top choices. UT offers depth accuracy, and RT provides a visual record. Both require skilled technicians and more time than surface-level methods .
Can a single NDT method detect both surface and internal defects?
Some methods can detect both, such as RT (surface + internal) and UT (mainly internal but can detect near-surface flaws). However, most techniques focus on one type, making a combined approach more reliable
