Dye Penetrant Examination (DPE) is a nondestructive testing (NDT) method that detects surface-breaking defects in non-porous materials, making it an invaluable tool in the railway and construction industries. Unlike other NDT methods, Dye Penetrant Examination highlights surface-level flaws that could compromise structural integrity, such as cracks, seams, and porosity. EMA Quality Industries applies DPE to identify imperfections, ensuring the safety and reliability of railway infrastructure.

What is the Dye Penetrant Examination?

Dye Penetrant Examination involves applying a visible or fluorescent dye to the surface of a component. The dye penetrates any open flaws, such as cracks or porosity, which are then revealed under a special light or through visual inspection. This method is highly effective for non-magnetic materials and can detect minute, surface-breaking defects that might go unnoticed otherwise.

How Dye Penetrant Examination Works:

1. Surface Cleaning: The surface is thoroughly cleaned to remove contaminants.

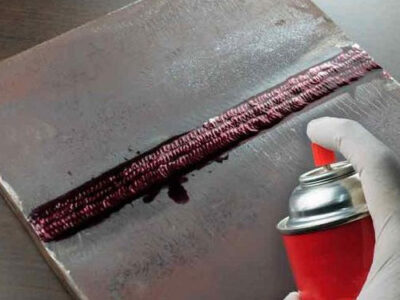

2. Application of Penetrant: A visible or fluorescent dye is applied to the surface.
3. Dwell Time: The dye is left on the surface to penetrate any flaws.
4. Excess Dye Removal: The surface is cleaned to remove excess dye.
5. Developer Application: A developer is applied, drawing out any dye trapped in flaws.
6. Inspection: Flaws are identified by the visible dye outline or under UV light.

Benefits of Dye Penetrant Examination in Railway Maintenance

Dye Penetrant Examination is especially useful for inspecting non-ferromagnetic materials and can be applied to various components, from welds to castings. DPE is also cost-effective, efficient, and does not require complex equipment, making it ideal for field inspections.

Advantages of Dye Penetrant Examination:

• High sensitivity to small, surface-breaking defects
• Applicable to a wide range of non-porous materials
• Cost-effective for regular maintenance
• Provides clear, visual indications of flaws

Types of Defects Detectable by Dye Penetrant Examination

Dye Penetrant Examination can detect a variety of surface flaws, such as:

1. Surface Cracks: Detects visible cracks in metals and other non-porous materials.
2. Porosity: Highlights tiny pores in welded joints or castings.
3. Seams and Laps: Finds unbonded or improperly joined material sections.
4. Welding Defects: Reveals flaws like undercuts and incomplete fusion in welds.
5. Fatigue Cracks: Identifies early-stage cracks caused by repetitive stress.

Identifying these issues early through Dye Penetrant Examination allows operators to address weaknesses before they escalate, ensuring safer and longer-lasting rail components.

Why Choose EMA Quality Industries for Dye Penetrant Examination?

EMA Quality Industries provides reliable and high-quality Dye Penetrant Examination services, following strict industry standards to ensure precise and consistent results. Our certified technicians are trained in advanced inspection techniques, delivering accurate data that helps clients maintain a proactive approach to maintenance.

Our DPE Approach Includes:

• Certified Technicians: Our team is experienced in NDT methods and certified to industry standards.
• Detailed Reporting: Each inspection is documented with clear findings and recommendations.
• Compliance with Industry Standards: Adheres to FRA and AREMA guidelines for railway safety.
• Tailored Solutions: Customized inspection plans based on client needs and component specifications.

The Dye Penetrant Examination Process Explained

To ensure thorough inspection, our DPE process follows a methodical approach that guarantees accuracy and safety. The DPE process not only reveals current surface defects but also serves as a preventative measure, providing clients with critical information for maintaining safe operations.

1. Preparation and Cleaning: Before applying the penetrant, the component is cleaned to remove any contaminants, ensuring the dye’s effectiveness.
2. Applying Penetrant: Our technicians apply a visible or fluorescent dye to the surface and allow sufficient time for it to penetrate any flaws.
3. Removing Excess Dye: After the dwell time, excess dye is removed, ensuring that only dye in cracks or pores remains visible.
4. Developer Application: A developer is applied to draw out any trapped dye, making flaws clearly visible.
5. Inspection: Our trained inspectors analyze the developed surface under appropriate lighting, such as UV light for fluorescent dyes.
6. Documentation and Reporting: We provide a comprehensive report detailing any defects found, including their location and recommended actions.

Importance of Dye Penetrant Examination for Railway Safety

Railway components are exposed to extreme conditions, including constant vibrations and temperature fluctuations. Over time, these conditions can lead to fatigue and stress-related defects on the surface. Regular Dye Penetrant Examination ensures these issues are detected and addressed before they impact safety. By choosing EMA Quality Industries for DPE, clients receive a preventive inspection solution tailored to railway safety standards.

Primary Benefits of DPE in Rail Maintenance:

• Efficiency: Enables quick and easy surface inspections.
• Cost Savings: Minimizes extensive repair costs through early flaw detection.
• Enhanced Safety: Prevents failures that could disrupt operations and pose safety risks.

Frequently Asked Questions about Dye Penetrant Examination

1. What types of materials can undergo Dye Penetrant Examination? DPE is suitable for any non-porous materials, including metals, ceramics, and some plastics.
2. Is Dye Penetrant Examination effective on all defect types? DPE is effective for surface-breaking defects but may not detect subsurface flaws.
3. How often should Dye Penetrant Examination be conducted? The frequency of DPE varies depending on the component’s use, operating conditions, and regulatory guidelines, with more frequent inspections for high-stress parts.
