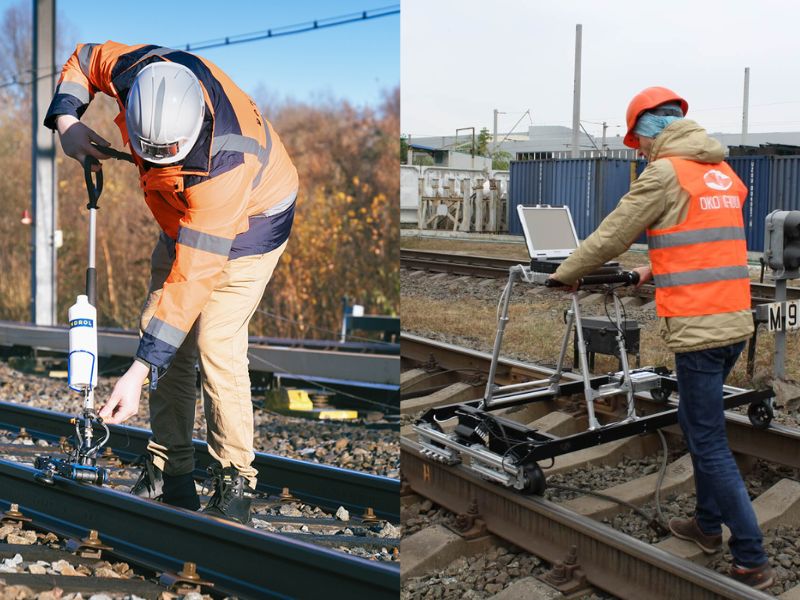

When it comes to maintaining railway safety and performance, eddy current testing vs. ultrasonic testing often stands at the forefront of inspection methods. Both techniques are critical tools within Nondestructive Testing (NDT), offering unique capabilities for detecting flaws in rail infrastructure.
This article explores their key differences, advantages, and limitations while highlighting their applications in rail inspections.
Whether you’re assessing surface-level cracks or subsurface defects, this guide will help you understand how each method contributes to ensuring rail safety and efficiency.
Basics of Eddy Current Testing
Eddy Current Testing (ECT) is a Nondestructive Testing (NDT) technique used to detect surface and near-surface flaws in conductive materials. It operates by inducing an alternating magnetic field into the material through a coil.
When the magnetic field encounters a flaw, it disrupts the flow of eddy currents, which can be detected and analyzed using specialized equipment.
Applications in Rail Inspections
In the railway sector, ECT is particularly useful for identifying surface cracks, corrosion, and material wear in rail tracks, wheels, and axles. It is also effective for inspecting rail welds and other areas prone to fatigue or stress.
Advantages
- Fast Setup: Requires minimal preparation, allowing quick deployment.
- Minimal Surface Preparation: Works efficiently on painted or coated surfaces, reducing inspection time.
- Adaptability: Probes can conform to irregular surfaces, making it ideal for complex geometries like railheads.
Limitations
- Limited Penetration Depth: Only effective for detecting surface and near-surface flaws.
- Reliance on Conductive Materials: Not suitable for non-conductive materials, limiting its scope of application.
ECT is widely used for its speed and efficiency but is best complemented by other methods, such as Ultrasonic Testing (UT), for deeper inspections. This makes it a valuable but specialized tool in comprehensive rail maintenance strategies
Basics of Ultrasonic Testing
Ultrasonic Testing (UT) is a Nondestructive Testing (NDT) method that uses high-frequency sound waves to detect internal flaws in materials. The process begins with a transducer that emits sound waves into the test material.
These waves travel through the material until they encounter a boundary, such as a crack or a void, causing the waves to reflect back. By analyzing these reflections, inspectors can determine the presence, size, and location of defects with high precision.
To facilitate the transfer of sound waves, a coupling material, such as gel or water, is applied between the transducer and the test surface. This ensures efficient energy transfer and minimizes signal loss.
Advanced systems, such as Phased Array Ultrasonic Testing (PAUT), allow for more detailed imaging and customized inspection parameters.
Applications in Rail Inspections
UT is particularly effective in railway testing, where it provides volumetric analysis for detecting subsurface defects. Common applications include:
- Rail Tracks: Identifying internal cracks, voids, and inclusions that may not be visible on the surface.
- Weld Inspections: Assessing the integrity of rail welds and joints to ensure they meet safety standards.
- Thick Components: Evaluating axles, wheels, and other rail components where deep flaws could compromise performance.
UT’s ability to penetrate through dense materials makes it invaluable for identifying potentially catastrophic defects that might be missed by surface-only inspection methods.
Advantages
- High Accuracy: Capable of detecting minute subsurface flaws with precise size and depth measurements.
- Thick Material Analysis: Can inspect thick components and structures, such as rail tracks and axles, without compromising reliability.
- Non-Invasive: Does not damage the material, making it ideal for repeated inspections.
Limitations
- Coupling Material Requirement: The need for coupling materials, like gels or water, can complicate field inspections, especially in challenging weather conditions.
- Extensive Operator Training: UT systems require skilled operators to interpret results accurately, as misinterpretation of signals could lead to incorrect assessments.
- Time-Consuming for Complex Structures: Inspecting complex geometries or large areas can be labor-intensive compared to methods like Eddy Current Testing.
Despite its limitations, Ultrasonic Testing is a cornerstone of railway inspection, offering unparalleled insight into subsurface flaws and ensuring the structural integrity of critical components
Key Differences: Eddy Current Testing vs. Ultrasonic Testing
When comparing Eddy Current Testing (ECT) and Ultrasonic Testing (UT) for rail inspections, it’s essential to understand how these two techniques differ in their capabilities and applications.
Both are powerful tools within Nondestructive Testing (NDT) but serve distinct purposes depending on the type of flaws being inspected and the material characteristics.
This section highlights the key differences, including their depth of penetration, defect detection capabilities, portability, and advancements in technology, to provide a clearer picture of their roles in ensuring railway safety and performance.
1. Penetration Depth
- Eddy Current Testing (ECT): ECT is primarily a surface inspection method, ideal for detecting flaws at or near the material’s surface. Its effectiveness diminishes with increasing depth, limiting its use for subsurface defect detection.
- Ultrasonic Testing (UT): UT excels at volumetric inspections, penetrating deep into the material to locate subsurface flaws. It is particularly effective for identifying internal defects in thick or dense materials, such as rail tracks or axles.
2. Defect Types Detected
- ECT: Best suited for identifying surface cracks, corrosion, and minor defects that disrupt the flow of eddy currents. Common applications include checking for wear, fatigue cracks, and conductivity issues in rail components.
- UT: Capable of detecting internal flaws such as voids, weld defects, and inclusions. It is often used for assessing the structural integrity of thick components like rail welds and axles.
3. Portability and Setup
- ECT: Lightweight and portable equipment makes ECT convenient for field inspections. It requires minimal setup, enabling rapid testing of large areas.
- UT: UT equipment is more complex and requires careful calibration. The need for coupling materials and specialized transducers can make setup and operation more challenging, particularly in field conditions.
4. Efficiency
- ECT: Known for its speed and efficiency, ECT is ideal for scanning large surface areas quickly. It is especially valuable when inspecting conductive materials with irregular surfaces.
- UT: While more time-intensive due to its thoroughness, UT provides detailed information on defect size, depth, and orientation. This comprehensive analysis is critical for high-stakes applications where safety is paramount.
5. Instrumentation and Software
- ECT: Advances in eddy current array technology allow for faster and more accurate detection across broader surfaces, improving the method’s efficiency.
- UT: Modern phased array ultrasonic testing (PAUT) systems use advanced scanning and imaging technologies to generate high-resolution 2D or 3D images, enhancing defect characterization. Both methods benefit from the integration of sophisticated software for real-time data analysis and reporting, streamlining the inspection process.
Applications in Railway Testing
Railway components like tracks, welds, wheels, and axles face constant stress, making regular inspections crucial for safety and performance. Eddy Current Testing (ECT) and Ultrasonic Testing (UT) are among the most commonly used Nondestructive Testing (NDT) techniques in the railway industry.
Each method addresses specific inspection needs, ensuring thorough evaluations of surface and subsurface flaws. The following sections explore how these methods are applied to various railway components, highlighting their strengths in maintaining infrastructure integrity.
1. Rail Tracks
Rail tracks are prone to surface-level wear, cracks, and corrosion, which can weaken their structural integrity over time. Eddy Current Testing (ECT) is highly effective for detecting these surface flaws due to its rapid and non-contact nature, allowing large sections of track to be inspected quickly.
In contrast, Ultrasonic Testing (UT) is better suited for subsurface flaw detection. By sending high-frequency sound waves into the rail, UT can identify internal cracks and inclusions that are not visible from the surface. Together, these methods provide comprehensive coverage, addressing both surface wear and hidden structural defects.
2. Welds
Welded joints are critical points in railway infrastructure, where material failure can have catastrophic consequences. ECT is often used for inspecting the surface of welds, particularly for detecting cracks or surface irregularities.
However, Ultrasonic Testing (UT), especially when using advanced techniques like Phased Array Ultrasonic Testing (PAUT), is the preferred choice for assessing internal weld quality.
PAUT enables inspectors to generate detailed images of weld structures, helping to identify internal defects such as lack of fusion, porosity, or slag inclusions. This combination of methods ensures that welds meet safety standards and remain structurally sound under operational stress.
3. Wheels and Axles
Railway wheels and axles endure significant stress, making them susceptible to both surface and subsurface damage. ECT is ideal for surface inspections, such as identifying fatigue cracks, wear, or corrosion on wheel treads and axles. Its speed and adaptability make it a practical choice for routine checks.
For deeper inspections, UT provides the necessary capability to identify subsurface cracks or internal voids that could compromise the component’s integrity. By combining these techniques, inspectors can ensure the safety and longevity of these critical components, preventing failures that could disrupt railway operations.
Choosing the Right Method
Selecting between Eddy Current Testing (ECT) and Ultrasonic Testing (UT) for rail inspections depends on several factors, as each method offers distinct advantages and limitations.
The decision often hinges on the type of flaw being investigated, the depth of inspection required, and the specific operational constraints of the railway environment.
Factors Influencing the Choice
1. Type of Flaw
- For surface and near-surface defects like corrosion, wear, or small surface cracks, ECT is usually preferred. Its non-contact nature and quick scanning capabilities make it ideal for detecting surface irregularities efficiently.
- For internal defects, such as voids, inclusions, or subsurface cracks, UT provides unmatched precision and depth, offering detailed insights into structural integrity.
2. Inspection Depth
- ECT is limited to shallow penetration, making it unsuitable for deep flaw detection. However, this shallow focus is highly effective for surface-level evaluations.
- UT can penetrate thick materials and detect flaws at significant depths, making it the go-to choice for inspecting rail welds, wheels, and axles where subsurface defects may be hidden.
3. Operational Constraints
- ECT is portable, requires minimal preparation, and works effectively on irregular surfaces, making it convenient for rapid field inspections.
- UT demands more preparation, including the application of coupling materials and precise calibration, which may increase inspection time but delivers comprehensive results.
How Both Methods Complement Each Other
Rather than being viewed as competing techniques, ECT and UT are often used in tandem for comprehensive rail inspections. ECT’s speed and efficiency allow it to identify surface flaws quickly, while UT provides a deeper analysis of structural components.
For example, a rail inspector might use ECT to scan for visible surface cracks and follow up with UT to investigate potential subsurface damage in critical areas.
By combining these methods, railway operators can achieve a balance between efficiency and accuracy, ensuring that all potential defects whether on the surface or deep within the material are detected and addressed.
This integrated approach not only enhances safety but also optimizes maintenance strategies, extending the lifespan of critical railway components
Conclusion
In conclusion, both Eddy Current Testing (ECT) and Ultrasonic Testing (UT) are indispensable tools for ensuring the safety and integrity of railway infrastructure.
While Eddy Current Testing vs. Ultrasonic Testing may offer distinct advantages in terms of depth, flaw detection capabilities, and efficiency, the two methods complement each other in comprehensive rail inspections.
ECT excels at rapid surface inspections, identifying cracks and corrosion, while UT provides a detailed analysis of subsurface flaws and structural integrity. By combining these techniques, railway operators can maximize the effectiveness of their maintenance programs, ensuring that both surface and internal defects are detected and addressed.
Ultimately, choosing the right method depends on the specific inspection needs, but together, ECT and UT form a powerful duo in safeguarding the rail industry.
Key Points
- Eddy Current Testing (ECT) and Ultrasonic Testing (UT) are essential Nondestructive Testing (NDT) methods for rail inspections. ECT is ideal for surface flaws, while UT is used for subsurface defects.
- ECT detects surface flaws like cracks, corrosion, and wear efficiently. It offers fast, non-destructive inspections over large areas.
- UT detects internal flaws such as cracks, voids, and inclusions. It provides deep penetration and high accuracy, particularly for welds and thick components.
- ECT works by inducing electrical currents and measuring their response, while UT uses sound waves to detect flaws based on reflections. Both methods have their unique detection capabilities.
- ECT’s advantages include rapid setup and minimal surface preparation. Its limitations are shallow penetration and reliance on conductive materials.
- UT’s advantages include high accuracy in detecting deep internal flaws, especially with Phased Array Ultrasonic Testing (PAUT). However, it requires coupling materials and specialized training.
- The main difference between the methods is ECT’s focus on surface flaws and UT’s ability to perform volumetric analysis. UT allows for a deeper and more detailed inspection.
- ECT is portable and quick to set up, making it ideal for routine inspections. UT, while more precise, is more complex and requires more time and training.
- The two methods complement each other in rail inspections. ECT is used for surface inspection, and UT ensures thorough evaluation of deeper structural issues.
- The choice of method depends on flaw type, inspection depth, and operational constraints. Combining both methods enhances the effectiveness and safety of rail inspections.
FAQs
What types of rail defects can Ultrasonic Testing detect?
UT is highly effective for detecting internal defects such as cracks, corrosion, and material inconsistencies deep within the rail. It can also provide detailed measurements of defect size and depth.
How do Eddy Current Testing and Ultrasonic Testing complement each other in rail inspections?
These two methods are often used together to provide a more comprehensive assessment. ECT can quickly detect surface issues, while UT can identify deeper or more complex internal flaws.
What are the limitations of Ultrasonic Testing in rail inspections?
UT requires more surface preparation, such as cleaning or removing coatings, to ensure accurate results. It can also be less effective on complex geometries or in areas where access is limited.
Can both Eddy Current Testing and Ultrasonic Testing be automated for rail inspections?
Yes, both testing methods can be integrated into automated systems for continuous monitoring, helping improve inspection efficiency and accuracy, particularly in high-speed rail environments
