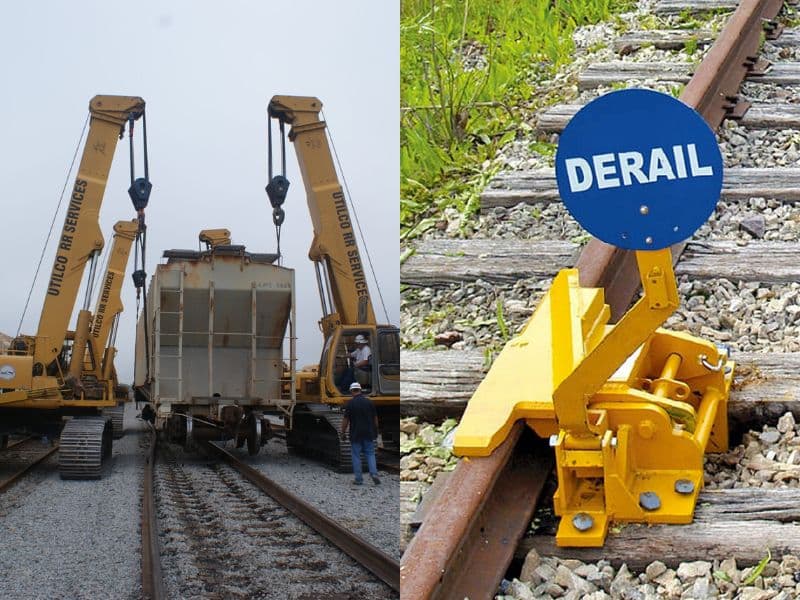

Equipment Used to Recover a Derailed Train: Guide For 2024

Train derailments can be catastrophic events that require quick and efficient responses to minimize damage, prevent further incidents, and restore rail services. The recovery process involves a wide range of specialized equipment and expertise to safely lift, move, and repair derailed trains and damaged tracks.

In this article, we’ll delve into the advanced tools and machinery used in 2024 to recover a derailed train, from powerful cranes to hydraulic jacks, and everything in between. Whether you’re a rail professional, an enthusiast, or simply curious about how these complex recoveries are handled, this article will give you a detailed look at the equipment that makes it possible.

Read on to understand how each piece of equipment plays a critical role in restoring rail operations efficiently and safely.

What Are Train Derailment Recovery Equipments?

Train derailment recovery equipment refers to the specialized tools and machinery designed to help lift, realign, and recover trains after they have come off the tracks. These equipment pieces are critical for ensuring the safe removal of derailed trains, minimizing disruption to rail services, and protecting the surrounding environment.

Simply, the primary purpose of recovery equipment is to assist in the stabilization, lifting, and repositioning of train cars, helping to clear the area and restore normal operations efficiently.

Types of Train Derailment Recovery Equipment

Below are some of equipments used to recover derailed trains. Each of them are designed to handle different aspects of the recovery process.

1. Derailed Train Recovery Vehicles

Recovery vehicles are specially designed to handle the complex and heavy-duty tasks involved in lifting and moving derailed train cars. These vehicles are often equipped with powerful cranes, hydraulic systems, and rail adapters that allow them to operate both on roadways and train tracks. Their versatility and strength make them an essential part of any derailment recovery team.

Here are some examples of popular models and their capabilities:

Rail-Bound Cranes: These large, heavy-duty cranes are mounted on railcars and are used to lift derailed train cars back onto the tracks. They are capable of lifting substantial weights and can be positioned directly along the rail lines for maximum efficiency.
Hi-Rail Trucks: These are trucks that can operate both on standard roads and rail tracks, equipped with hydraulic lifts, towing equipment, and tools to help move derailed cars. Their mobility allows for rapid deployment to accident sites.
Recovery Cranes (Road & Rail): These cranes are capable of working on road surfaces or the rail network, making them versatile options for different types of derailment scenarios. They can lift both locomotives and railcars, depending on their capacity.

Each of these vehicles plays a critical role in the safe and swift recovery of derailed trains, ensuring rail lines can be restored quickly and efficiently.

2. Hydraulic Jacks and Lifting Systems

Hydraulic jacks are vital in train recovery operations for lifting heavy railcars and locomotives that cannot be moved otherwise. These jacks provide the precise control needed to lift trains carefully and reposition them without causing additional damage.

Examples: Brands like Simplex and Enerpac manufacture hydraulic jacks with high lifting capacity that are used globally in train recovery scenarios.

3. Winches and Cable Systems

These are used to pull train cars or sections of the train back onto the track or into a safer position. High-powered winches provide controlled force to drag or shift derailed trains.

Applications: Cable winches are often used in combination with cranes to reposition the train cars or pull sections of the train from difficult-to-reach areas.

4. Re-railing Devices

These are compact, portable systems designed to help lift and slide derailed trains back onto the tracks. They work in conjunction with hydraulic jacks and winches to guide the wheels of a derailed train back into the correct position.

Popular Models: Companies like ZAGRO produce re-railing devices that are frequently employed in train recovery efforts due to their precision and ease of use.

5. Track Panels and Rail Replacement Tools

Sometimes, the tracks themselves are damaged in derailments and need replacement before the train can be rerouted or moved. Track panels and rail replacement tools allow crews to quickly swap damaged sections of track, minimizing further delays in restoring service.

Applications: This equipment is essential when derailments lead to track damage or when re-railing requires the replacement of bent or broken rails.

6. Mobile Command Centers and Equipment Transporters

In large derailments, mobile command centers help manage recovery operations by coordinating the equipment and teams at the site. Like lowboy trailers, transporters are used to bring heavy recovery machinery to the derailment site, especially in remote or challenging terrains.

By using a combination of these specialized tools, train recovery teams can efficiently manage derailment situations, ensuring the safe and quick restoration of services.

What Are The Key Equipment Used in Train Derailment Recovery?

There are mainly 3 types of equipment that are used in train derailment recovery. They are as follows:

1. Rerailing Equipment

Rerailing equipment is essential for safely returning derailed trains to the tracks. These systems are designed to lift and guide derailed cars back onto the rails without causing further damage.

There are two main types of rerailing systems:

Hydraulic Rerailing Systems: These systems use hydraulic power to lift and move derailed train cars. They provide precise control and can handle heavy loads with minimal manual intervention. Hydraulic systems are often favored for their strength and ability to lift even the largest locomotives.
Mechanical Rerailing Systems: Mechanical systems rely on manual force or mechanical leverage to lift and rerail train cars. While not as powerful as hydraulic systems, they are simpler and often used for smaller derailments or in situations where hydraulic equipment may not be available.

Features and Benefits of Modern Rerailing Equipment:

Compact and Portable: Modern rerailing systems are designed to be lightweight and easy to transport, allowing rapid deployment to derailment sites.
High Precision: Hydraulic systems offer controlled lifting and positioning, reducing the risk of further damage.
Safety Mechanisms: Many modern rerailing systems come with integrated safety features such as pressure control valves and load sensors to prevent accidents during the rerailing process.

2. Sidebooms and Cranes

Sidebooms and cranes are integral to lifting and repositioning derailed train cars during recovery operations. They provide the power and reach necessary to safely handle large, heavy loads.

Sidebooms: These are specialized vehicles fitted with a boom arm on the side, used to lift and move derailed train cars. Sidebooms are often used in tandem to lift a car evenly and place it back on the rails. Their ability to move alongside the tracks gives them versatility in reaching derailed cars from different angles.
Cranes: Cranes are used for heavy lifting in more complex recovery operations. There are various types of cranes used:
1. Rail-Mounted Cranes: Positioned directly on the tracks, these cranes are capable of lifting entire train cars or locomotives.
2. Mobile Cranes: Deployed on roads or nearby access points, mobile cranes can be positioned quickly to assist with recovery.

Comparison of Crane Types:

Rail-Mounted Cranes: Provide high lifting capacity and are ideal for heavy-duty operations directly along the rail line.
Mobile Cranes: Offer more flexibility in terms of positioning but may not handle as much weight as rail-mounted cranes. However, they are faster to deploy in areas without easy rail access.

3. Lifting Systems

Lifting systems are another crucial component of train derailment recovery, used to elevate derailed cars to allow repositioning.

Lifting Cylinders: Hydraulic cylinders are used to lift heavy train cars smoothly and safely. These cylinders provide the force needed to raise even the heaviest loads with precision.
Airbags: Inflatable lifting airbags are used to gradually raise train cars by filling the airbag with compressed air. Airbags are often used in conjunction with other lifting devices and are valued for their ability to distribute weight evenly.

Safety Features and Operational Efficiency:

Overload Protection: Both lifting cylinders and airbags often feature safety mechanisms to prevent overloading, reducing the risk of accidents.
Quick Deployment: Modern lifting systems are designed for quick setup and operation, enabling faster recovery times.
Precision Control: Hydraulic systems allow for controlled and even lifting, preventing further damage to derailed cars during recovery.

Each of these key pieces of equipment plays a vital role in ensuring that train derailments are managed safely, efficiently, and with minimal disruption to rail operations.

How Does The Recovery Process Conducted For Derailed Train?

Recovering a derailed train involves a carefully coordinated process that starts with assessing the site and ends with safely rerailing and repositioning the train. The recovery operation requires the use of specialized equipment and experienced personnel to ensure the work is carried out efficiently and safely.

Here’s a breakdown of the key stages involved in a successful train derailment recovery:

1. Initial Assessment

The first step in any train derailment recovery process is conducting a thorough initial assessment of the situation. This evaluation is crucial for determining the extent of damage, the number of derailed cars, and any potential hazards in the surrounding area, such as leaks or damaged infrastructure.

Steps Taken to Evaluate the Situation Post-Derailment:

Site Safety Check: The recovery team assesses the site to ensure it’s safe for workers, checking for risks like fuel leaks, damaged overhead power lines, or unstable terrain.
Damage Assessment: A detailed inspection of the derailed cars, track conditions, and nearby infrastructure is carried out to understand the severity of the derailment.
Incident Reporting and Coordination: Recovery teams communicate with railway operators and local authorities to coordinate the recovery plan and ensure proper resource allocation.
Strategic Planning: Based on the assessment, a step-by-step recovery plan is formulated, identifying the specific equipment and techniques needed for the operation.

2. Equipment Deployment

Once the assessment is complete, the appropriate equipment is deployed based on the type and scale of the derailment. The timing and selection of tools are critical to ensure efficiency and safety.

How and When to Deploy Specific Recovery Equipment:

Staging the Recovery Vehicles: Specialized vehicles like sidebooms, cranes, and hi-rail trucks are positioned at strategic points around the site. The deployment is planned to ensure these vehicles can access the derailed cars without causing further disruption.
Deploying Rerailing Systems: Hydraulic or mechanical rerailing systems are brought in to lift and reposition the derailed cars. The choice of system depends on the size and weight of the train, as well as the complexity of the derailment.
Use of Lifting Systems: Lifting cylinders or airbags are positioned under the derailed cars to safely raise them for rerailing. This equipment is deployed based on the recovery team’s plan, ensuring weight is distributed evenly and lifting is controlled.

3. Execution of Recovery Operations

With all the necessary equipment deployed and in place, the recovery team can begin the physical process of rerailing and repositioning the derailed cars. This process requires precision, coordination, and adherence to safety protocols to ensure a successful recovery.

Techniques for Rerailing and Repositioning Trains:

Lifting and Stabilizing: Hydraulic cylinders, airbags, or cranes are used to lift the derailed cars off the ground, while stabilizers are put in place to prevent any unwanted movement during the operation.
Rerailing: Once the cars are lifted, rerailing systems or sidebooms guide the train wheels back onto the tracks. Careful positioning is essential to avoid damaging the train cars or the tracks themselves.
Repositioning: If cars are misaligned or need further adjustments, sidebooms or rail-bound cranes are used to reposition them properly. For severely damaged cars, the team may decide to tow them away from the site for repair or dismantling.
Inspection and Final Adjustments: After the cars are back on the rails, the recovery team inspects the integrity of the train and tracks. If necessary, final adjustments are made to ensure everything is operational before rail service can resume.

The entire recovery process involves coordination, the use of specialized equipment, and adherence to safety guidelines to ensure minimal disruption and a quick restoration of train services.

Challenges in Train Derailment Recovery

Train derailment recovery operations are complex and often fraught with challenges that can impede the recovery process. These challenges can range from environmental conditions to safety risks for recovery personnel. Thus, having a good understanding on these obstacles is essential for effectively managing recovery efforts and minimizing the impact on rail operations.

Environmental Factors

Environmental conditions play a significant role in the success of train derailment recovery efforts. The terrain and weather can complicate the logistics of deploying recovery equipment and can influence the methods used to rerail and reposition derailed trains.

Impact of Terrain and Weather on Recovery Operations:

Terrain Challenges: Uneven or unstable ground can make it difficult for recovery vehicles to reach the site of the derailment. Slopes, ditches, or rocky surfaces may hinder the movement of heavy equipment, necessitating additional preparation or alternative methods for accessing derailed cars.
Weather Conditions: Adverse weather conditions, such as heavy rain, snow, or high winds, can significantly affect recovery operations. Wet or icy surfaces may pose safety risks and impede vehicle mobility, while low visibility can complicate assessments and operations. Recovery teams may need to delay operations until weather conditions improve to ensure safety and effectiveness.

Safety Considerations

Safety is paramount during train derailment recovery efforts. The potential for accidents or injuries is heightened in the chaotic aftermath of a derailment, making adherence to safety protocols critical.

Importance of Safety Protocols During Recovery Efforts:

Worker Safety: Recovery teams operate in hazardous environments that may involve unstable equipment, heavy lifting, and exposure to toxic materials. Implementing safety protocols, such as wearing personal protective equipment (PPE) and adhering to strict operational guidelines, helps minimize risks.
Emergency Preparedness: Recovery teams must be prepared for various emergency scenarios, including equipment failures, fires, or further accidents. Having a well-defined emergency response plan ensures that personnel can act quickly and effectively if unexpected situations arise.
Site Management: Proper management of the recovery site is essential to prevent unauthorized access and ensure that all personnel are aware of potential hazards. Establishing clear zones, communicating effectively among team members, and monitoring conditions can help maintain a safe working environment.

Innovations in Train Derailment Recovery Equipment

Recent advancements in technology have significantly enhanced the efficiency and effectiveness of train derailment recovery operations. These innovations focus on improving equipment capabilities, increasing safety, and streamlining the recovery process.

Here is an overview of new technologies enhancing recovery efficiency:

Automated Recovery Systems: Some modern recovery vehicles now incorporate automation technologies, enabling more precise control during lifting and rerailing operations. Automated systems can reduce human error, enhance safety, and allow for more efficient maneuvering of heavy equipment.
Advanced Materials: New lightweight yet robust materials are being used in the construction of recovery equipment, such as cranes and lifting systems. These materials enhance the strength-to-weight ratio, making it easier to transport and deploy equipment while maintaining high performance levels.
Smart Sensors and IoT Integration: Many recovery vehicles are now equipped with smart sensors that provide real-time data on load, pressure, and stability during operations. IoT (Internet of Things) integration allows teams to monitor equipment performance remotely, enabling timely maintenance and minimizing downtime.
3D Mapping and Drones: Drones equipped with 3D mapping technology are increasingly being used to assess derailment sites. They provide aerial views and detailed maps, helping recovery teams identify the best approaches for equipment deployment and maneuvering, as well as assessing environmental conditions.
Hydraulic Innovations: Recent advancements in hydraulic technology, such as faster response times and improved energy efficiency, have made hydraulic rerailing systems more effective. These innovations enable smoother and more controlled lifting and positioning of derailed trains.

Future Trends in Recovery Equipment

As technology continues to evolve, the future of train derailment recovery equipment is poised for significant advancements. Several trends are emerging that are likely to shape the industry in the coming years.

Here are some predictions for future developments in the field:

Increased Automation: The trend towards automation is expected to grow, with more recovery processes becoming fully automated. This will reduce reliance on manual labor, enhance safety, and improve the speed of recovery operations.
Enhanced Robotics: The integration of robotics into recovery operations may become more prevalent, with specialized robotic systems designed to handle specific tasks, such as lifting or repositioning train cars. These robots could work in hazardous environments where human intervention is risky.
Augmented Reality (AR) Training: AR technology may be used for training recovery personnel, providing immersive simulations of derailment scenarios. This will allow teams to practice recovery operations in a safe environment, improving readiness for real-life situations.
Sustainability Innovations: As the industry shifts towards more sustainable practices, future recovery equipment may focus on reducing environmental impact. This could include electric or hybrid-powered recovery vehicles and equipment designed to minimize noise and emissions during operations.
Predictive Maintenance Technologies: Advances in predictive analytics and maintenance technologies will allow recovery teams to anticipate equipment failures before they occur. This proactive approach can reduce downtime and improve the overall reliability of recovery operations.

Final Thoughts

Train derailments pose significant challenges that require prompt and efficient recovery efforts to mitigate damage and restore rail services.

In 2024, the use of advanced equipment and specialized techniques has become essential in these recovery operations. From powerful recovery vehicles and hydraulic jacks to rerailing systems and mobile command centers, each piece of equipment plays a crucial role in safely lifting, repositioning, and repairing derailed trains and damaged tracks.

Therefore, having a good understanding on the complexities of train derailment recovery is vital for industry professionals and enthusiasts alike. It’s because the successful execution of recovery operations not only minimizes disruptions to rail services but also ensures the safety of personnel and the surrounding environment.

Overall, as technology and equipment continue to evolve, the efficiency and effectiveness of recovery efforts are expected to improve, ultimately leading to a more resilient rail system.

Key Points

Timely recovery efforts are crucial to minimize damage, prevent further incidents, and restore rail services after a derailment.
Recovery operations utilize a wide range of specialized equipment, including cranes, hydraulic jacks, winches, and rerailing devices, each designed for specific recovery tasks.
Derailed train recovery vehicles, such as rail-bound cranes and hi-rail trucks, play a vital role in lifting and repositioning derailed trains efficiently.
Hydraulic jacks and lifting systems are essential for precisely lifting heavy railcars and locomotives without causing additional damage.
Rerailing systems, both hydraulic and mechanical, are critical for safely guiding derailed cars back onto the tracks, ensuring minimal risk during the recovery process.
High-powered winches and cable systems are used to pull train cars back onto the tracks, often in conjunction with other recovery equipment.
In cases where tracks are damaged during a derailment, track panels and rail replacement tools facilitate quick repairs to restore services.
Effective recovery operations require careful planning, coordination of equipment, and a well-trained recovery team to navigate the complexities of derailment situations.
Recovery efforts can be impacted by environmental factors such as unstable terrain and adverse weather conditions, necessitating adaptable strategies.
Ensuring the safety of recovery personnel is paramount. For that, strict adherence to safety protocols and emergency preparedness is essential in order to minimize risks during recovery operations.

FAQs

What types of equipment are used for train derailment recovery?

Various types of equipment are utilized, including rerailing vehicles, cranes, sidebooms, lifting systems, and specialized hydraulic tools designed for specific recovery tasks.

How does a derailed train recovery vehicle work?

A derailed train recovery vehicle is equipped with hydraulic systems and lifting capabilities that allow it to reposition and rerail derailed trains effectively, often using innovative techniques to minimize disruption.

What are the key steps in the train derailment recovery process?

The recovery process typically involves an initial assessment of the situation, deployment of appropriate recovery equipment, and execution of rerailing techniques to safely return the train to its tracks.

What challenges are faced during train derailment recovery?

Challenges include environmental factors such as difficult terrain and weather conditions, as well as safety concerns for the recovery team and nearby communities.

Are there any recent innovations in train derailment recovery equipment?

Yes, recent innovations include advancements in lightweight materials for equipment, automated systems for improved efficiency, and enhanced safety features to protect recovery teams during operations.

How quickly can a derailed train be recovered?

Recovery time varies based on the severity of the derailment and the specific circumstances but can range from a few hours to several days, depending on the complexity of the situation.

What safety measures are implemented during recovery operations?

Safety measures include thorough risk assessments, use of personal protective equipment (PPE), adherence to safety protocols, and continuous monitoring of the environment to ensure the safety of all personnel involved.
