Trains move thousands of people every day, but one mistake, a missed signal, speeding, or delayed braking, can lead to disaster. That’s where automatic train protection steps in, quietly working behind the scenes to keep passengers and operators safe. From high-speed rail to commuter lines, this safety system is becoming a vital part of modern railway operations.
In this article, we’ll look at how automatic train protection systems work, what makes them different from other safety technologies like PTC and TPWS, and how they use automatic braking to prevent accidents.
You’ll also learn about the challenges of putting these systems in place and where the future of railway safety is heading. Whether you’re in the industry or just curious about how trains stay on track, this guide will break it down simply and clearly.
What Is an Automatic Train Protection System?
When it comes to railway safety, automatic train protection (ATP) is a game-changer. It’s a safety system designed to automatically control the movement of trains to prevent accidents caused by human error. Whether it’s a missed signal or a train going too fast around a curve, ATP steps in to stop or slow the train when the operator doesn’t.
In simple terms, ATP systems monitor a train’s speed and position in real time. If the train is at risk of running a red signal or exceeding speed limits, the system takes over, often applying the brakes without driver input. That’s why ATP is now a key feature in many modern train protection and warning systems (TPWS) and positive train control (PTC) setups across the world.
Why is it used in railways?
Railways are high-risk environments. Even the most skilled train operators can make mistakes. Here’s where ATP makes a big difference:
- Prevents collisions by enforcing safe following distances
- Stops trains from running red signals
- Controls speed limits, especially in high-risk areas like curves and stations
- Reduces reliance on human decision-making, especially in emergencies
ATP doesn’t just improve safety, it builds public trust in train travel. And as more rail networks adopt automatic braking systems for trains, ATP becomes the foundation for safe, automated rail operations.
But how does this smart system actually work behind the scenes? Let’s break down the tech behind ATP.
How ATP Railway Systems Work
At the heart of every ATP railway system is a network of interconnected components, working together in real time. These systems constantly monitor the train’s status and the track conditions, ensuring that any risky situation is corrected immediately, often before the driver even realizes there’s a problem.
Key Components of ATP Systems
ATP relies on several important parts:
- Trackside equipment: Sends information about speed limits, signal status, and track conditions to the train
- Onboard computer systems: Receives track data and calculates if the train is exceeding limits or at risk
- Automatic braking system: Engages if the train violates a speed or signal rule

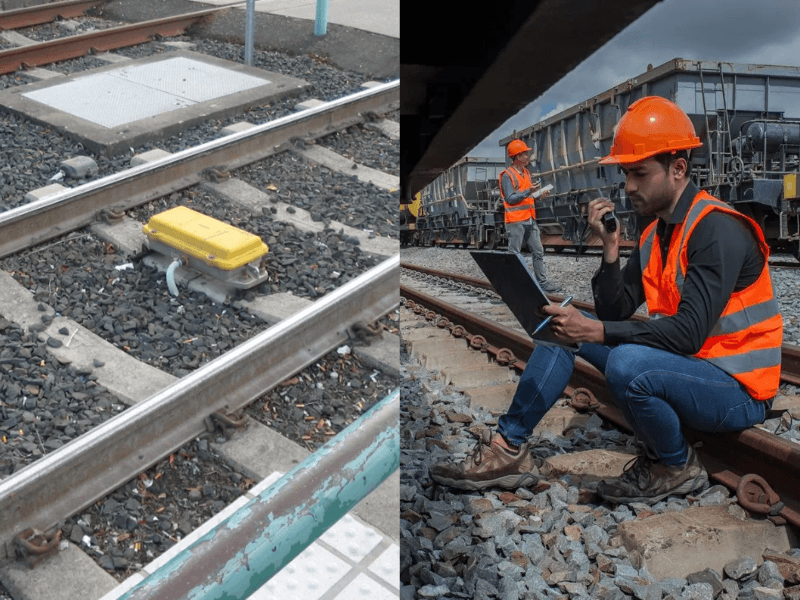

- Balises or beacons: Fixed devices on the track that communicate with passing trains
All of these work in sync to ensure the train stays within a safe operating window.
Sensors, Signals, and Onboard Controls
The real magic of automatic train protection lies in how these components communicate. ATP systems use a mix of sensors, signals, and onboard controls to keep trains within safe limits:
- Speed sensors monitor how fast the train is going at all times
- Signal receivers detect red lights or upcoming hazards
- Onboard displays alert drivers when they need to take action
- Override controls allow the system to apply the brakes automatically when a violation occurs
This constant feedback loop ensures instant response, even when the driver can’t react in time.
And that’s just the beginning. Different countries and rail networks use different kinds of ATP technologies, like positive train control (PTC) in the U.S. or ETCS in Europe, each with its own unique setup and advantages. So, what kinds of protection systems are out there, and how do they compare?
Let’s explore the main types of train protection systems next.
Key Types of Train Protection Systems
Not all train protection systems are built the same. Around the world, different regions use different technologies to keep their trains safe. However, they all aim to do one thing, prevent accidents by monitoring and controlling train movement. The most commonly used systems are Automatic Train Protection (ATP), Positive Train Control (PTC), and the Train Protection and Warning System (TPWS).
Let’s break down how these systems compare.
ATP vs. PTC vs. TPWS
- Automatic Train Protection (ATP): ATP is a comprehensive system that monitors train speed, enforces signal compliance, and automatically stops or slows the train if a safety rule is broken. It’s widely used in high-speed rail and metro systems, especially in Europe and Asia.
- Positive Train Control (PTC): Developed in the U.S., PTC is designed to prevent train-to-train collisions, derailments from excessive speed, and unauthorized entry into work zones. It uses GPS, wireless communication, and onboard computers to control train operations. While similar to ATP, PTC was developed to address specific safety gaps in the American railway system.
- Train Protection and Warning System (TPWS): Common in the UK, TPWS is a less complex system compared to ATP. It’s typically used to prevent trains from passing signals at danger and to automatically apply brakes if a train approaches a signal too fast. Unlike ATP, it doesn’t continuously monitor train speed or location.
Use of Automatic Braking Systems in Trains
One feature these systems often have in common is automatic braking. This allows the system to take control when a train fails to follow rules, stopping it before disaster strikes.
Key benefits of automatic braking:
- Stops trains that exceed speed limits
- Prevents overrunning red signals
- Acts when the driver is unresponsive
- Reduces reaction time to near-instant
While all systems aim to make train travel safer, ATP offers one of the most complete forms of real-time control and enforcement. But how exactly does this translate into fewer accidents and safer railways?
Let’s dive into the safety benefits next.
How ATP Improves Train Safety
The core goal of any automatic train protection system is to reduce the risk of accidents. By removing reliance on human judgment alone, ATP creates a safety net that responds faster and more accurately than a person could.
Prevents Speeding and Signal Violations
One of the leading causes of train accidents is speeding or ignoring signals. ATP solves this problem by enforcing:
- Speed limits across all track segments
- Obedience to red signals and caution zones
- Automatic slowing in high-risk areas like curves or station approaches
This keeps trains within safe operating conditions at all times, no matter how complex the route or how tired the operator.
Reduces Accidents Caused by Human Error
Train drivers face long hours, routine tasks, and high responsibility. Mistakes can happen especially in unexpected situations. ATP works as a constant safety check.
Here’s how ATP reduces human-error risks:
- Tracks the train’s location and speed at all times
- Warns the operator of danger ahead
- Automatically applies brakes if there’s no response
- Prevents manual overrides during dangerous conditions
It doesn’t replace the operator, it supports them when response time is critical.
Real-World Examples of Improved Safety
Countries that have adopted ATP have seen a sharp decline in signal-passed-at-danger (SPAD) incidents and derailments due to overspeed. For example:
- Germany’s high-speed ICE trains use ATP to manage rapid braking and prevent accidents at over 300 km/h
- Japan’s Shinkansen uses an advanced ATP system to maintain a perfect safety record with zero fatal accidents due to system failure
- European railways using ETCS Level 2 (an ATP-based system) have reported increased reliability and fewer emergency stops
With results like these, it’s no surprise that rail operators worldwide are racing to implement or upgrade their ATP networks.
Challenges and Future of ATP Systems
While automatic train protection (ATP) systems have proven to save lives and prevent accidents, adopting them across entire rail networks isn’t as simple or as fast as it should be.
Many operators face a mix of financial, technical, and operational challenges that slow down full-scale implementation. Still, advances in automation and smart technology are paving the way for the future of safer, more efficient railways.
Cost and Technology Upgrades
One of the biggest hurdles in expanding ATP is cost. Installing ATP on older tracks and trains often means replacing outdated equipment, adding new sensors, upgrading software, and training staff, all of which add up.
Key challenges include:
- High installation costs, especially for large networks
- Retrofitting older trains that lack onboard computer systems
- Compatibility issues between different countries and rail systems
- Long approval and testing processes for safety certifications
Smaller rail operators or those in developing regions may find it difficult to invest in ATP without government support or subsidies. And even when funding is available, rollout takes time, sometimes years.
But as technology evolves, things are changing fast.
The Future: Train Automation and Smart Protection Systems
The next generation of ATP is already being built into smarter, more connected trains. These new systems combine ATP with artificial intelligence, predictive analytics, and real-time data sharing to take rail safety even further.
Emerging trends include:
- AI-powered monitoring that detects potential issues before they happen
- Predictive maintenance systems integrated with ATP for faster repairs
- Communication-Based Train Control (CBTC) for driverless train operations
- Global standardization, like the EU’s ETCS system, to allow cross-border train movement
ATP will play a critical role in fully automated trains, where human input is minimal or even removed. These systems need more than just automatic braking, they need instant decision-making, data analysis, and fail-safe responses to unexpected conditions.
Conclusion
Railways are moving faster, farther, and more frequently than ever before, and with that progress comes the need for smarter, safer systems. Automatic train protection (ATP) is no longer a luxury; it’s a vital layer of defense that reduces human error, prevents accidents, and builds public trust in rail transport.
From the way ATP systems monitor speed and signals, to how they work alongside other technologies like Positive Train Control (PTC) and Train Protection and Warning Systems (TPWS), it’s clear that safety today relies on automation.
These systems have already proven their worth in countries with advanced rail networks, and they’re paving the way for fully automated trains of the future.
As the rail industry continues to evolve, investing in ATP and its next-gen upgrades isn’t just about safety, it’s about being ready for what’s next.
Key Points
- Automatic train protection (ATP) is a safety system that monitors train speed and signal compliance, applying brakes automatically when needed.
- ATP helps prevent accidents caused by human error, including speeding, missed signals, and failure to respond to warnings.
- ATP systems work through a network of components, including trackside equipment, onboard computers, sensors, and automatic braking systems.
- Key ATP-related technologies include Positive Train Control (PTC) in the U.S. and Train Protection and Warning System (TPWS) in the UK.
- ATP provides continuous, real-time oversight of train movement, enforcing safe speeds and stopping distances.
- Automatic braking is a core feature of ATP, engaging when a train violates a safety rule, even if the driver doesn’t react.
- Countries using ATP, like Germany and Japan, have seen significant reductions in signal violations and derailments.
- High costs, complex retrofitting, and technical compatibility issues are major challenges to widespread ATP adoption.
- The future of ATP involves AI integration, predictive maintenance, and fully automated train systems using smart safety controls.
- ATP is essential not just for improving current safety but for enabling the next generation of rail automation and efficiency.
FAQs
How does automatic train protection work?
ATP systems use trackside equipment like beacons or balises and onboard computers. Data from the track (speed limits, signals) is sent to the train. If the train begins to exceed those limits or risks running a signal, the onboard system triggers automatic braking.
What is the future of train protection systems?
The next-gen systems combine ATP with AI, predictive maintenance, and connected infrastructure through systems like CBTC and ETCS. These enhancements will support fully automated, driverless trains with smarter safety oversight.
How much does ATP cost to install?
Installation cost varies, but it involves trackside equipment, onboard computers, sensors, and testing. Some systems like India’s Kavach are among the cheapest ATP options globally. Costs can be significant for older networks needing retrofits, though government support can offset expenses.
