How can industries inspect critical components without causing any damage? The answer lies in advanced non-destructive testing (NDT) techniques and one of the most reliable among them is eddy current testing.
This electromagnetic testing method helps detect cracks, corrosion, and other surface defects in metal parts without drilling, cutting, or disassembling anything. Its accuracy, speed, and versatility make it a top choice across industries like aerospace, automotive, and manufacturing.
This article breaks down how eddy current testing works and why it’s such a valuable tool in modern inspection processes. We’ll cover how it fits into the broader category of non-destructive testing, explore its benefits and limitations, and look at real-world applications.
Whether you’re new to eddy current inspection or want to improve your existing process, this guide gives you the essentials, without any fluff.
Basics of Eddy Current Testing
How do you examine a component’s internal health without even touching it? That’s the power of eddy current testing, a key technique in the field of non-destructive testing (NDT). This method is based on the principle of electromagnetic induction, which allows inspectors to identify surface and near-surface flaws without damaging the material.
Eddy current testing works by passing an alternating current through a coil, creating a changing magnetic field. When this coil is placed near a conductive material, such as metal, this field induces circulating electrical currents in the material.
These are known as eddy currents. If there’s any disruption in the flow like a crack, corrosion, or a change in thickness, it will affect the electrical resistance and magnetic field, triggering a response that can be measured and interpreted.
Detection depends on monitoring how eddy currents behave within the material. If they encounter flaws or inconsistencies, they change in strength and pattern. The test equipment reads these variations as changes in coil impedance, allowing technicians to pinpoint defects with high accuracy.
Tools and Probes Used in Eddy Current Inspection
The type of equipment used depends on the inspection needs, from handheld devices to advanced automated systems. Some of the most commonly used probes and devices include:
- Pencil probes – Used for detecting small surface cracks and weld defects
- Differential probes – Ideal for identifying flaws in similar or symmetric components
- Absolute probes – Measure changes in material conductivity or thickness
- Encircling coils – Best suited for inspecting wires, tubes, and rods
Supporting equipment includes:
- Signal generators and amplifiers
- Portable digital displays
- Calibration blocks for accuracy checks
- Software for signal analysis and data storage
Leading suppliers like MFE Inspection Solutions, Techie Science, and NDE provide high-quality eddy current inspection equipment that’s trusted in industries worldwide.
Now that we understand how it works, what exactly makes eddy current testing such a preferred option in the world of NDT? Let’s dive into the advantages next.
Advantages of Eddy Current Testing in NDT
Eddy current testing offers several key advantages that make it a preferred method for many industrial applications. Unlike some NDT techniques that require contact or involve surface preparation, this method is fast, clean, and highly adaptable.
One major benefit is its ability to detect surface and near-surface defects, like cracks, pitting, and corrosion without causing any harm to the test object. That makes it perfect for aerospace, nuclear, and automotive industries, where even minor flaws can lead to serious risks.
Because it’s a non-contact testing method, eddy current testing can be used in environments where traditional methods fall short. It performs well on high-temperature components, underwater surfaces, and even painted or coated metals, all without removing surface layers or coatings.
Key Benefits at a Glance:
- Immediate, real-time feedback during inspection
- Portability for use in the field or on-site
- Lightweight and battery-powered equipment
- Minimal surface preparation required
The equipment’s portability and speed make it ideal for in-service inspections, reducing both inspection time and downtime. Inspectors can receive instant feedback and make quick decisions, improving operational efficiency.
Another major strength is its ability to handle complex shapes and layered structures. Whether it’s inspecting riveted aircraft panels, overlapping metal sheets, or oddly-shaped automotive parts, eddy current inspection adapts with precision.
Additionally, the method supports automation, making it ideal for high-volume, repetitive testing environments. Manufacturers can integrate eddy current systems into robotic lines or use them for inline inspection, allowing for consistent results with minimal human intervention.
Automated systems offer:
- High repeatability
- Reduced human error
- Fast scanning of uniform parts
While these strengths are impressive, no testing method is without its limitations. In the next section, we’ll look at where eddy current testing falls short, and when you might need to consider alternative NDT methods.
Limitations and Considerations
While eddy current testing is a powerful tool in the non-destructive testing (NDT) toolbox, it’s not without its limitations. Understanding these helps industries choose the right method for the right application, and avoid potential blind spots during inspection.
First, eddy current testing is only effective on electrically conductive materials, such as metals. This excludes non-metallic materials like ceramics, plastics, and composites, which are commonly used in modern manufacturing.
Another consideration is depth of penetration. Eddy currents primarily detect surface and near-surface flaws. The actual depth depends on factors such as material conductivity, frequency of the alternating current, and the geometry of the part. As the frequency increases, resolution improves but penetration depth decreases. This means deeper flaws may go undetected if not configured correctly.
The method is also highly sensitive to changes in magnetic permeability, especially in ferromagnetic materials like iron or steel. These variations can distort signals and complicate flaw detection. While specialized probes and calibration can help mitigate this, it still adds complexity to the process.
Skilled operators are essential in eddy current inspection. Unlike some automated NDT methods, signal interpretation requires expertise and experience. Incorrect probe handling or misreading impedance changes could result in missed defects or false positives.
Despite these limitations, eddy current testing is a go-to solution in many sectors. So, where is it most commonly applied, and why? Let’s explore that next.
Applications Across Industries
Eddy current testing is widely used across industries that demand precision, reliability, and minimal disruption to operations. Thanks to its speed and sensitivity, it’s a core method in aerospace, energy, transportation, and manufacturing.
Aerospace
In aviation, safety is everything. Eddy current inspection plays a crucial role in detecting cracks, corrosion, and fatigue in airframe structures, engine components, and fastener holes. Its ability to scan curved and layered materials without disassembly makes it ideal for routine aircraft maintenance.
Nuclear and Petrochemical
Facilities in these industries use eddy current testing to inspect heat exchanger tubes and boiler systems, where surface degradation or thinning can lead to hazardous leaks. Since these environments are high-risk, using a non-contact, reliable method is critical for ongoing safety.
Automotive and Manufacturing
In automotive and general manufacturing, eddy current testing helps detect surface flaws, hardness variations, and coating thickness on components like brake rotors, bearings, and gears. It can be seamlessly integrated into production lines for automated quality control.
Rail and Marine

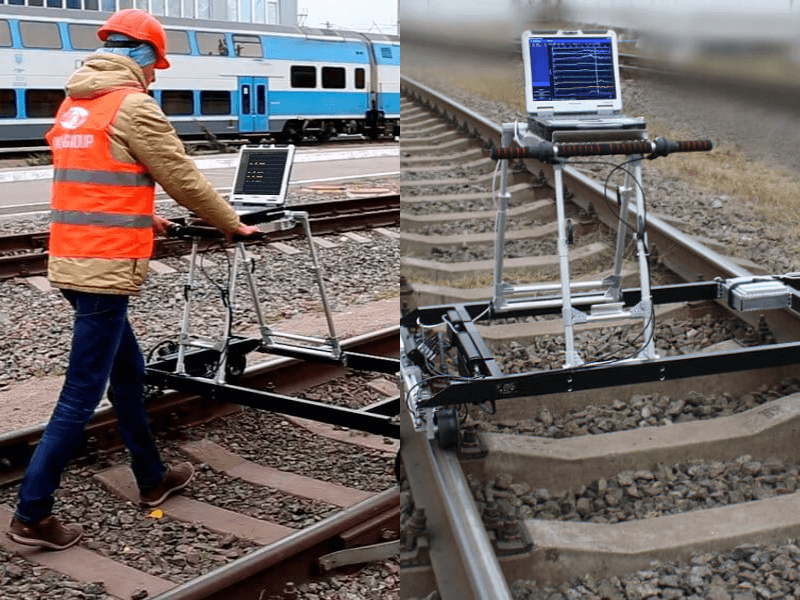

Railways use eddy current systems to inspect wheels, axles, and rail surfaces for fatigue and defects that could compromise safety. In marine environments, it is applied to test propeller hubs, boiler tubes, and hull structures, even when submerged or coated.
Factors Affecting Eddy Current Testing Performance
While eddy current testing is reliable and versatile, several factors influence how well it performs in real-world inspections. Knowing these variables helps technicians optimize accuracy during non-destructive testing (NDT).
A key factor is the frequency of the alternating current. Higher frequencies allow detailed surface inspection but limit depth. Lower frequencies reach deeper but can miss fine surface cracks. Choosing the right frequency depends on inspection goals and material thickness.
The electrical conductivity of the test material also plays a role. Materials like aluminum produce strong eddy currents and clear signals. However, magnetic permeability, especially in ferromagnetic materials like steel, can distort readings and reduce sensitivity.
Lift-off distance, or the gap between the probe and the material, is another challenge. A larger gap, caused by coatings, corrosion, or rough surfaces can weaken the eddy current signal, making flaw detection harder.
Part geometry affects current flow and detection accuracy. Curved or irregular shapes, varying thickness, or small features can all impact the strength and consistency of the eddy current signal.
Enhancing Inspection Processes with Eddy Current Testing
Industries are turning to innovation to boost the performance of eddy current testing. From better tools to improved workflows, these enhancements make inspections faster, smarter, and more reliable.
One major step forward is the integration of eddy current testing into broader NDT systems. Pairing it with ultrasonic or radiographic testing ensures both surface and deeper flaws are identified, offering complete coverage.
Multi-frequency testing is another upgrade. Using multiple frequencies either at once or in sequence helps improve the signal-to-noise ratio, especially useful when working with layered or noisy materials.
New probe designs have made inspection more flexible. Some probes are now tailored for specific parts, like small grooves or curved surfaces. Digital flaw detectors provide instant results, filter out interference, and allow for better data tracking.
Trained operators are key to success. Certification programs ensure that technicians know how to use the equipment correctly and interpret results accurately. This minimizes errors and increases confidence in inspection results.
Conclusion
Eddy current testing has become a powerful tool in the field of non-destructive testing (NDT), offering precise, fast, and reliable inspection of conductive materials. From detecting surface cracks in aircraft components to examining complex shapes in automotive manufacturing, its role across industries is growing rapidly.
Despite its limitations, such as depth constraints and material compatibility, eddy current inspection remains a top choice for identifying flaws without damaging the part being tested. With advancements in probe design, multi-frequency techniques, and better training, its accuracy and ease of use continue to improve.
As industries push for safer operations and higher quality standards, eddy current testing will play an even bigger part in modern electromagnetic testing workflows. For organizations looking to enhance their inspection processes, investing in this technology and the expertise to use it effectively is a step in the right direction.
Key points
- Eddy current testing (ECT) is a non-destructive method that uses electromagnetic induction to detect material flaws without causing damage.
- Principle of operation: Eddy currents are generated by alternating current passing through a probe, creating a magnetic field that interacts with the material being inspected.
- Frequency of alternating current impacts the depth of penetration, with higher frequencies detecting surface flaws and lower frequencies penetrating deeper for internal defects.
- Electrical conductivity and magnetic permeability of the material influence the strength of the eddy currents and the clarity of the signals detected.
- Lift-off distance between the probe and the material surface can weaken the signal, making it harder to detect flaws accurately.
- Eddy current testing is effective for detecting surface and near-surface flaws without damaging the material, making it ideal for critical components in aerospace, automotive, and other industries.
- Non-contact method allows for inspection of high-temperature, underwater, or hard-to-reach surfaces without physically touching the material, ensuring efficiency and safety.
- Immediate feedback from the equipment allows for real-time analysis and quick decision-making, improving productivity during inspections.
- Multi-frequency techniques improve the signal-to-noise ratio and provide better accuracy, especially for layered or complex materials.
- Training and certification of operators are essential for achieving reliable and accurate results, as they ensure proper signal interpretation and equipment use.
FAQs
Is operator training necessary for eddy current testing?
Yes, proper training is essential. Skilled operators are required to interpret results accurately, calibrate equipment correctly, and ensure reliable inspections. Certification programs are available to standardize training and competence in the field.
How does eddy current testing compare to other NDT methods?
Compared to methods like ultrasonic or radiographic testing, eddy current testing offers advantages in speed, portability, and the ability to inspect complex shapes. However, it may have limitations in depth penetration and sensitivity to material properties.
What materials can be tested using eddy current methods?
Eddy current testing is primarily used for conductive materials, including metals like aluminum, copper, steel, and titanium. It is not effective for non-conductive materials such as plastics or ceramics.
