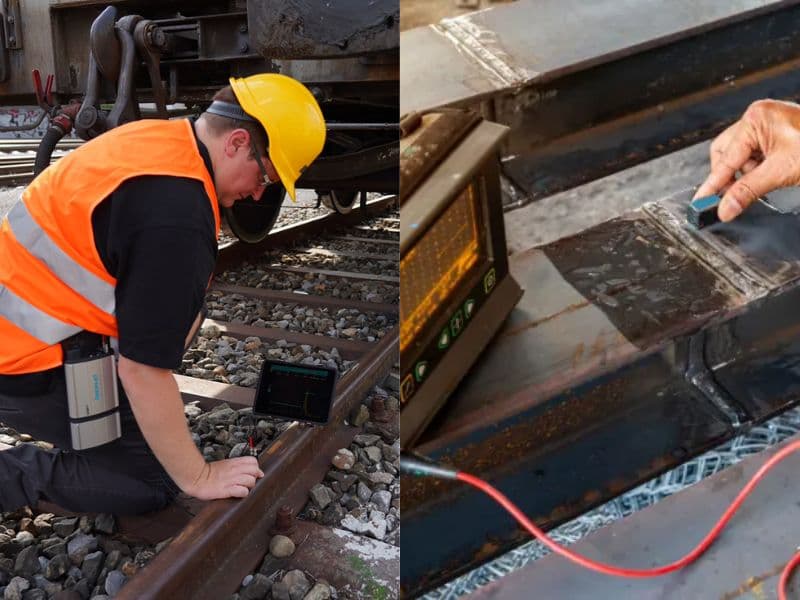

Pulse-Echo Ultrasonic Inspection is a powerful non-destructive testing (NDT) method that allows engineers to detect internal flaws in solid materials without causing any damage.
By transmitting high-frequency sound waves into a material and analyzing the echoes that bounce back, this technique can accurately locate cracks, voids, and other defects hidden beneath the surface.
This article will guide you through the essential aspects of Pulse-Echo Ultrasonic Inspection, including how it works, the equipment involved, its key benefits, common limitations, and practical applications across various industries.
Whether you’re a student or a professional, this overview will provide valuable insights into one of the most widely used tools in modern material testing.
How Pulse-Echo Ultrasonic Inspection Works
Pulse-Echo Ultrasonic Inspection is a technique used in ultrasonic testing that helps identify internal flaws in materials without damaging them. The process begins when a transducer sends high-frequency sound waves into the test material.
These waves travel through the material until they encounter a boundary, such as a crack, void, or material change, at which point they reflect back as an “echo.” The time it takes for the echo to return indicates the distance to the flaw.
This method is especially useful in industries that require flaw detection and weld testing, such as construction, aerospace, and manufacturing. It’s highly valued for its ability to detect even small defects buried deep within a structure, making it an essential part of defect detection protocols.
Ultrasonic Wave Propagation
Sound waves used in ultrasonic inspection are typically in the range of 1–10 MHz. When these waves hit an obstacle, they bounce back to the surface. This reflection is picked up by the transducer and translated into a visual signal.
Key facts about wave propagation:
- High-frequency waves travel through solid materials.
- Echoes are reflected from flaws or material boundaries.
- Time-of-flight (TOF) helps calculate flaw depth.
The quality of wave transmission and reflection determines the accuracy of the inspection, which is why equipment calibration and surface preparation are so important.
Role of Transducers in Emitting and Receiving Echoes
At the heart of Pulse-Echo Ultrasonic Inspection is the transducer. It acts as both the sender and receiver of ultrasonic waves. The transducer sends a pulse into the material and then switches to “listening” mode to receive any echoes.
Depending on the application, different types of transducers are used, some for deep penetration, others for detecting fine surface cracks. Dual-element probes are often used for echo testing on rough or curved surfaces, while single-element probes are common for general inspections.
The performance of the transducer directly affects the accuracy of defect detection, especially in high-stakes applications like pipeline integrity checks or aerospace component inspections.
Interpretation of Reflected Signals for Flaw Detection
Once the echoes are received, they’re translated into signals displayed on a screen. These waveforms are analyzed to locate and size flaws. Technicians look for unusual spikes or delays in the echo pattern, which may signal cracks, corrosion, or other internal issues.
Inspectors focus on:
- Echo amplitude (signal strength)
- Time delay (distance to flaw)
- Echo pattern shape (flaw type)
Proper interpretation requires training and experience, especially when differentiating between actual defects and harmless material variations.
Curious how all these components work together? Let’s look at the tools that make this inspection possible.
Key Components and Equipment Used
For Pulse-Echo Ultrasonic Inspection to be reliable, several specialized tools must work in sync. From the transducer to the display unit, each component plays a vital role in ensuring accurate and repeatable results.
Description of Ultrasonic Testing Devices
Ultrasonic testing devices vary based on the application, but most share the same basic structure. They include a pulse generator, a receiver, a transducer probe, and a display system. Portable models are popular for fieldwork, while larger, more complex machines are used in lab environments or automated production lines.
Modern systems often include digital signal processing and data storage features, allowing technicians to review results after the inspection. These systems support both manual and automated testing, making them suitable for everything from quick checks to detailed quality assurance.
Types of ultrasonic testing equipment:
- Portable flaw detectors
- Immersion systems for lab testing
- Robotic scanners for production lines
Importance of Coupling Agents in Ultrasonic Inspection
Ultrasonic waves don’t travel well through air, so a coupling agent is applied between the transducer and the test surface. This substance fills in surface irregularities and eliminates air gaps, allowing for efficient wave transmission.
Common coupling agents include:
- Glycerin
- Silicone-based gels
- Water-based fluids
These agents ensure that sound waves are transferred effectively, which is especially important in weld testing and inspections involving rough or uneven surfaces. Without proper coupling, the signal may weaken or distort, leading to false readings or missed defects.
Overview of Display Systems and Data Interpretation Tools
After the waves are received, they’re displayed on screens as waveforms or numerical data. Most modern ultrasonic inspection systems come with digital displays that allow for precise control over parameters such as gain, pulse repetition rate, and scan depth.
Software tools assist inspectors by:
- Highlighting unusual echo patterns
- Automatically measuring flaw depth and size
- Creating digital reports and data logs
Advanced systems even integrate AI-assisted analysis, improving both speed and consistency in flaw evaluation. These features are especially useful in industries where inspection time is limited but accuracy is critical.
So now that we’ve covered the tools and technology behind the method, it’s time to dive into how Pulse-Echo Ultrasonic Inspection is being used across industries, from bridges and buildings to aircraft and ships.
Applications of Pulse-Echo Ultrasonic Inspection
Pulse-Echo Ultrasonic Inspection is widely used across various industries due to its versatility and ability to detect flaws without causing damage. From metals to composites, this method is highly valued for its precision and efficiency in a variety of applications.
Flaw Detection in Metals and Weld Testing
One of the most common uses of Pulse-Echo Ultrasonic Inspection is in the detection of flaws in metals, especially in welded joints. This is particularly important in industries like aerospace, construction, and oil & gas, where the integrity of metal structures and welds must be guaranteed for safety reasons.
- Weld inspection: Identifying cracks, porosity, and inclusions in welds.
- Metal inspection: Detecting internal defects such as voids or delaminations.
The process ensures that structural elements, like pipes, beams, and tank walls, are free from dangerous flaws that could compromise their strength and safety.
Why it’s effective:
- Can detect deep flaws and imperfections.
- Provides a clear indication of the size and depth of defects.
Next, we explore how Pulse-Echo Ultrasonic Inspection is used on more advanced materials like composites, which are increasingly used in industries like aviation and automotive.
Inspection of Composite Materials and Structures
Composites, often made of fibers and resin, are gaining popularity in industries where lightweight, high-strength materials are required. However, due to their complex internal structures, inspecting composites for flaws can be tricky. This is where ultrasonic testing shines.
Common applications:
- Aerospace: Inspecting aircraft parts for delaminations or bonding issues.
- Automotive: Ensuring structural integrity of carbon fiber components.
- Wind Energy: Checking composite blades for internal damage or wear.
Pulse-Echo Ultrasonic Inspection helps identify subsurface damage such as cracks or voids that may not be visible on the surface. This is critical in maintaining the longevity and safety of composite materials.
Use in Thickness Measurement and Corrosion Detection
Beyond flaw detection, Pulse-Echo Ultrasonic Inspection is also effective in measuring material thickness and detecting corrosion. This is particularly valuable in environments where corrosion is a constant concern, such as in pipelines, tanks, and marine vessels.
Key benefits in this area:
- Thickness measurement: Ensuring materials meet specified thickness standards.
- Corrosion detection: Locating areas of material thinning, especially in pipes and pressure vessels.
- Monitoring wear: Detecting the onset of wear in machinery or structural components.
With ultrasonic testing, inspectors can assess the condition of a material without having to cut, drill, or damage it, making it an invaluable tool for preventive maintenance.
Now, let’s dive into the advantages and limitations of Pulse-Echo Ultrasonic Inspection to better understand when and why to use it.
Advantages and Limitations
Like any testing method, Pulse-Echo Ultrasonic Inspection has its benefits and limitations. Understanding these will help you decide when to use this technique, and how to optimize its effectiveness.
Benefits: High Sensitivity, Depth Penetration, and Immediate Results
Pulse-Echo Ultrasonic Inspection offers several advantages that make it a preferred method in various industries.
- High sensitivity: This method is highly sensitive to small flaws, even in thick or dense materials. Whether you’re inspecting welds or checking for internal cracks, pulse-echo can detect minute defects that might otherwise go unnoticed.
- Depth penetration: Unlike surface-level inspection methods, pulse-echo can penetrate deep into materials, making it ideal for thick metals, pipes, and composite structures.
- Immediate results: One of the biggest advantages is the ability to get instant feedback during the inspection. As echoes are reflected back and analyzed, the operator can immediately see if any defects are present, allowing for real-time decision-making.
- Non-destructive: This means you can inspect materials without altering or damaging them, saving time and money on repairs or replacements.
For industries like aerospace, automotive, and energy, this method’s ability to deliver accurate, real-time results is invaluable for ensuring the safety and durability of components.
Limitations: Requirement for Skilled Operators, Difficulty with Certain Materials
Despite its many benefits, Pulse-Echo Ultrasonic Inspection also has limitations that must be considered.
- Skilled operators required: Interpreting ultrasonic data and identifying flaws accurately requires extensive training and experience. Misinterpretation of echoes can lead to incorrect assessments and missed defects, so having a qualified operator is crucial.
- Difficulty with certain materials: While pulse-echo ultrasonic testing works well on many materials, it can be less effective with some composites or materials that have inconsistent or very rough surfaces. The method may also struggle with materials that are particularly thin or have irregular grain structures.
- Surface condition dependence: For accurate results, the test surface needs to be clean and smooth. If there is contamination, roughness, or scale on the surface, it can affect wave propagation and lead to false readings.
In addition to these limitations, Pulse-Echo Ultrasonic Inspection may not work well with highly attenuating materials, where the sound waves may be absorbed too much before they can return with useful data.
Despite these challenges, the method remains a reliable and essential part of modern inspection practices, as long as it’s used in the right circumstances by skilled professionals.
Conclusion
Pulse-Echo Ultrasonic Inspection is a vital, non-destructive testing method that has proven to be an invaluable tool in industries ranging from aerospace and automotive to construction and energy.
With its ability to detect flaws deep within materials, inspect welds, measure thickness, and detect corrosion, it offers unparalleled accuracy and real-time results. However, like any testing method, it requires skilled operators and may face challenges when dealing with certain materials or surface conditions.
By understanding how pulse-echo ultrasonic testing works, the equipment involved, its applications, and its benefits and limitations, industries can leverage this technology to ensure the safety and integrity of critical components.
As technologies evolve, so too will the precision and efficiency of ultrasonic testing methods, making them an essential part of quality control and maintenance strategies.
Whether you’re inspecting metal structures, checking composite materials, or assessing wear and tear in pipelines, Pulse-Echo Ultrasonic Inspection continues to be a trusted method for ensuring reliability and preventing costly failures.
The future of testing is brighter with innovations in ultrasonic technology, promising even greater accuracy and versatility.
Key Points
- Pulse-Echo Ultrasonic Inspection is a non-destructive testing method used to detect internal flaws in materials, such as cracks or voids, without causing any damage.
- Ultrasonic waves are emitted by a transducer, which then receives the reflected echoes, and the time it takes for the echo to return helps identify the size and depth of flaws.
- Transducers are crucial in sending and receiving ultrasonic waves, with different types used based on the application (e.g., deep penetration or fine surface cracks).
- The interpretation of reflected signals from the echoes helps technicians detect defects, with analysis focusing on echo amplitude, time delay, and pattern shape.
- Coupling agents are applied between the transducer and the test surface to ensure efficient wave transmission, as sound waves do not travel well through air.
- Pulse-Echo Ultrasonic Inspection is widely used for flaw detection in metals, especially in weld testing, ensuring structural integrity in critical industries like aerospace and construction.
- The method is also effective for inspecting composite materials in industries like aerospace and automotive, where subsurface damage can be detected without damaging the material.
- Thickness measurement and corrosion detection are key applications, particularly in pipelines, tanks, and marine vessels, to ensure material integrity over time.
- Key advantages of the method include high sensitivity, the ability to penetrate deep into materials, and the provision of immediate results during inspections.
- Limitations include the requirement for skilled operators to interpret data correctly and potential challenges when testing certain materials, such as composites with irregular surfaces or highly attenuating materials.
FAQs
What industries commonly use Pulse-Echo Ultrasonic Inspection?
Pulse-Echo Ultrasonic Inspection is widely used in industries that require precise inspection of materials. These industries include aerospace, automotive, construction, and energy.
In aerospace, for example, it is used to ensure the integrity of critical components, while in the automotive industry, it helps inspect vehicle parts for structural reliability. It is also essential in construction for testing structural elements and in the energy sector for evaluating pipelines, reactors, and other vital infrastructure.
How is data from Pulse-Echo Ultrasonic Inspection interpreted?
The data collected from Pulse-Echo Ultrasonic Inspection is often visualized in the form of waveforms. These waveforms provide information on the amplitude, time delay, and pattern of the reflected sound waves. The amplitude of the waves indicates the strength of the reflection, which helps determine the size of a defect.
The time delay is used to estimate the depth of the flaw, and the pattern of the waves can help identify the type of defect, whether it’s a crack, void, or other form of damage.
Is Pulse-Echo Ultrasonic Inspection suitable for all materials?
Pulse-Echo Ultrasonic Inspection is effective for a wide range of materials, including metals, plastics, and ceramics. However, it may face challenges when inspecting materials with irregular grain structures or those that strongly absorb or scatter sound waves.
For example, composites and some advanced materials may not provide clear echoes, making it harder to detect defects. In these cases, additional inspection methods may be needed to obtain accurate results.
