Ever wondered what goes into building the train tracks that support thousands of tons of moving steel every day? Train track construction is more than just laying rails on gravel, it’s a precise process that involves engineering, safety planning, and careful design choices to ensure reliability and durability.
Whether for high-speed travel or heavy freight, each track is built to withstand extreme conditions and constant use.

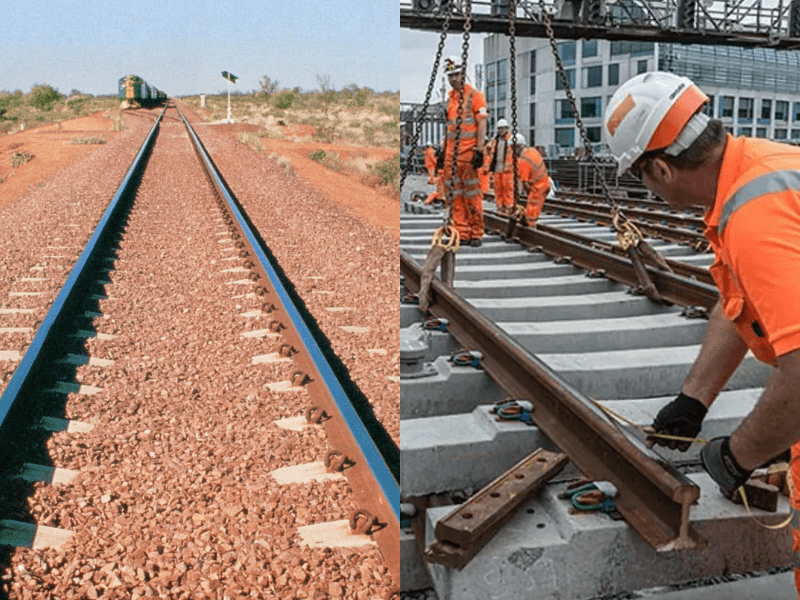

In this article, we’ll break down the essentials of railway track design and construction in simple terms. You’ll learn about key components of railway track engineering, core design principles, and a step-by-step look at the track laying process.
We’ll also touch on advanced methods used in modern rail systems and explain how maintenance keeps everything running smoothly. Whether you’re a student, industry professional, or just curious, this guide will give you a solid understanding of how railways are built and maintained.
Track Design Principles
Designing a railway track involves careful planning to ensure safety, durability, and efficiency. Several key principles guide this process, from analyzing the site conditions to selecting the right materials. Understanding these fundamentals is essential for successful train track construction.
Site Analysis: Terrain, Climate, and Track Use
A critical first step in train track construction is the detailed analysis of the site where the railway will be built. Engineers carefully study the terrain to understand the natural landscape’s challenges. For example, flat plains require different design considerations compared to hilly or mountainous areas, where curves and slopes must be planned to ensure trains can run safely without excessive wear or risk. Climate also impacts the design: regions with heavy rainfall need efficient drainage systems to protect the track from water damage, while areas with freezing temperatures require materials that can withstand frost and prevent ground heaving. Another essential factor is the type of traffic the track will serve. Freight trains are heavier and slower, requiring more robust track structures, while passenger trains often travel at higher speeds, demanding smoother curves and more precise alignments.
Alignment & Geometry: Curves and Superelevation
Once the site is understood, the next design principle focuses on the track’s alignment and geometry. The alignment defines the exact path of the rails, balancing safety, speed, and cost. Horizontal curves turn the track left or right, and their sharpness directly affects the speed trains can safely travel. Vertical curves manage changes in elevation, allowing trains to smoothly ascend or descend hills. To maintain stability on curves, engineers use superelevation, also called cant, where the outer rail is raised higher than the inner rail. This tilt counters the centrifugal forces acting on trains as they pass through curves, reducing wear and increasing passenger comfort.
Track Materials: Rails, Sleepers, Ballast, and Sub-ballast
Choosing proper materials is crucial for the track’s strength and longevity. Rails, typically made from high-quality steel, are designed to carry heavy loads and resist wear from constant traffic. Sleepers (or ties) support the rails and keep them spaced correctly. These can be made from wood, concrete, steel, or composite materials, each with its advantages depending on environmental conditions and expected loads. Beneath the sleepers lies the ballast, a layer of crushed stones with sharp edges that lock together to provide stability. Ballast not only holds the sleepers firmly but also allows for drainage and absorbs vibrations from passing trains. Under the ballast is the sub-ballast layer, made from finer materials that protect the track foundation from water infiltration and help spread train loads evenly.
Track Spacing, Clearance, and Safety Margins
Proper spacing between parallel tracks is vital to prevent accidents and ensure safe passage of trains. Clearances also allow room for maintenance activities and account for thermal expansion of rails, which expand and contract with temperature changes. Safety margins are carefully included in all dimensions to ensure that minor movements or settlements do not lead to dangerous conditions.
Railway Track Engineering Components
The physical components of a railway track work together to provide a strong, stable, and safe path for trains. Each element, from the ground beneath to the rails above, must be engineered carefully. Let’s explore the main components involved in railway track engineering.
Formation and Subgrade
The engineering foundation for any railway track begins with the formation and subgrade. The formation is the shaped and compacted earth or embankment that supports the track structure. It must be stable and free from soft spots that could cause settling or shifting under the weight of trains.
Below the formation is the subgrade, which is the natural ground. If the subgrade is weak or unstable, engineers often improve it by removing unsuitable soil or adding stabilizing materials such as gravel or geotextiles. A strong formation and subgrade are essential to maintain track geometry over time.
Ballast Bed: Depth, Materials, and Functions
Ballast is one of the most important components in railway track engineering. Typically, ballast depth ranges from 30 to 45 centimeters, depending on the expected traffic load. Made of crushed stone with angular edges, ballast locks tightly together, preventing track movement.
Its primary functions include holding sleepers in place, facilitating water drainage away from the track, absorbing vibrations and shocks from passing trains, and suppressing weed growth that could undermine track stability.
Sleepers and Fastenings: Types, Spacing, and Clip Systems
Sleepers play a crucial role by maintaining the correct distance between rails and transferring loads to the ballast. There are several types of sleepers used, including wood, concrete, steel, and composite materials. The choice depends on cost, durability, and environmental factors.
Sleepers are generally spaced between 50 and 70 centimeters apart, depending on the track’s design load. To secure the rails to sleepers, various fastening systems like clips, bolts, or screws are used. Modern clip systems allow the rails to expand and contract with temperature changes while keeping them firmly in place.
Rail Joints vs Welding
Rails can be joined by traditional rail joints or through continuous welding. Rail joints use fishplates and bolts to connect two rail ends. While joints make it easier to replace damaged sections, they can cause noise, increased wear, and a less smooth ride.
Continuous welded rail (CWR), on the other hand, involves welding rails into long continuous sections, minimizing joints. This creates a smoother track with less maintenance and allows higher train speeds.
How to Build a Railway Track (Track Laying Process)
Building a railway track is a complex process that involves multiple steps to transform the design plans into a safe, functioning railway. Proper execution of each phase is crucial for the track’s longevity and safety. This section breaks down the main steps involved in train track construction from site preparation to final inspection.
Site Preparation: Clearing, Grading, Earthwork, and Embankments
The first step in track laying is preparing the site. This involves clearing the area of vegetation, debris, and any obstacles that may interfere with construction. Next comes grading, where the land is leveled or shaped to form a stable base.
Earthwork may involve cutting into hills or filling low areas to create the desired track level. In many cases, embankments are built to raise the track above the surrounding terrain, helping with drainage and preventing flooding. Proper site preparation ensures a solid foundation for all subsequent work.
Subgrade and Sub-ballast Placement
After the land is prepared, the subgrade is inspected and sometimes further compacted or stabilized to support the railway structure. Then, the sub-ballast layer is placed. This layer consists of finer granular materials that protect the subgrade from water infiltration and distribute train loads evenly. Proper sub-ballast placement is essential to prevent settlement and maintain track geometry.
Ballast Laying and Spreading
Next comes the ballast layer, which is carefully laid and spread over the sub-ballast. Ballast material, usually crushed stone, must be distributed evenly to provide uniform support. Specialized machinery is often used to spread ballast to the correct depth and contour. This layer not only supports the sleepers but also allows water drainage and vibration absorption.
Laying Sleepers and Fastening Rails
Once the ballast is ready, sleepers are positioned at regular intervals. Sleepers act as the foundation for the rails, keeping them properly spaced and aligned. After placing the sleepers, rails are laid on top and fastened using clips, bolts, or other fastening systems to secure them firmly while allowing for thermal expansion and contraction.
Rail Laying: Joints or Continuous Welded Rail
Rails can be laid with joints, where individual rail sections are connected using fishplates and bolts, or as continuous welded rail (CWR), where long rail sections are welded together to create a smooth, joint-free track. While joints allow easier maintenance, CWR provides a quieter, more durable, and faster track for trains.
Tamping, Alignment, and Leveling
After rails and sleepers are in place, the track undergoes tamping. Tamping machines compact the ballast under sleepers to stabilize the track and restore the proper track geometry. Alignment and leveling ensure the rails are straight and at the correct height, providing a smooth ride and reducing wear on trains and track components.
Final Inspection, Testing, and Speed Clearance
The last phase involves thorough inspection and testing. Engineers check the track for correct alignment, secure fastenings, and proper ballast distribution. Testing may include running inspection trains to verify stability and safety at intended speeds. Once approved, speed limits are set based on track condition and design, officially opening the railway for operation.
Rail Track Design Principles in Action
Design principles come to life during the track construction and operation phases. Understanding how theoretical concepts translate into practical elements is key to building efficient and safe railways.
Curve Design: Radius and Versine Measurement Methods
Curve design is one of the most critical aspects of railway engineering. The radius of a curve determines how sharp it is, which in turn affects the train’s maximum safe speed.
To measure and design curves accurately, engineers use versine methods, such as the Hallade method, which help calculate the curve’s shape precisely. Proper curve design reduces wear on rails and wheels and improves passenger comfort.
Superelevation Calculations for Curves
To counteract the forces on trains navigating curves, engineers calculate superelevation, or cant. This involves raising the outer rail relative to the inner rail by a specific amount based on curve radius and expected train speeds.
Superelevation balances centrifugal force, minimizing the risk of derailment and reducing the lateral forces that cause track damage. Precise calculations ensure that the track is safe and comfortable for both freight and passenger trains.
Grade and Drainage Considerations
Finally, grade, the slope of the track and drainage are critical to track longevity. Excessive grades can slow trains and increase wear, so designers aim for gentle slopes where possible. Effective drainage systems prevent water accumulation, which can weaken the track foundation and cause deformation.
Combining proper grading with reliable drainage ensures the track remains stable and safe throughout its service life.
Maintenance and Refurbishment
Maintaining a railway track is just as important as building it. Proper maintenance ensures the track remains safe, reliable, and able to handle the stresses of daily train traffic. Over time, components like ballast and rails wear down or shift, so regular upkeep and refurbishment are essential parts of train track construction lifecycle.
Ballast Maintenance: Turnout, Cleaning, and Undercutting
Ballast plays a crucial role in keeping the track stable, but it can become fouled with dirt, vegetation, and broken stone fragments, reducing its effectiveness. Ballast maintenance involves several key processes:
- Turnout Maintenance: Areas where tracks diverge require extra attention since switches and crossings are more prone to wear and ballast contamination.
- Ballast Cleaning: Specialized machines remove contaminated ballast, separating reusable stone from unwanted materials.
- Undercutting: This process digs out fouled ballast beneath the sleepers, allowing fresh ballast to be inserted, restoring proper drainage and track support.
Regular ballast upkeep prevents track deformation and prolongs the life of sleepers and rails.
Realignment and Tamping Machines
To maintain the correct track geometry, realignment and tamping are carried out periodically. Realignment involves adjusting rails and sleepers that have shifted due to traffic loads or ground movement.
Tamping machines then compact the ballast beneath the sleepers to lock them into place. These machines use vibrating tools to lift and stabilize the track, ensuring a smooth surface and correct levels. Without regular tamping and alignment, tracks become uneven, increasing wear on trains and raising safety risks.
Conclusion
Building and maintaining a safe, efficient railway track requires careful planning, precise engineering, and ongoing upkeep. From the initial site analysis and track design principles to the detailed construction process and regular maintenance, every step plays a vital role in successful train track construction.
Understanding the key components and how they work together helps ensure that railway tracks remain strong and reliable for years to come. Whether for freight or passenger use, following proven design and engineering practices will keep trains running smoothly and safely across the network.
Key Points
- Train track construction begins with thorough site analysis, considering terrain, climate, and the type of rail traffic (freight or passenger).
- Proper alignment and geometry, including horizontal and vertical curves and superelevation (cant), are essential for safety and smooth train operation.
- Track materials such as steel rails, sleepers, ballast, and sub-ballast each play specific roles in providing strength, stability, and drainage.
- The formation and subgrade must be stable and well-prepared to support the track structure and prevent settlement.
- Ballast depth and quality are critical for holding sleepers in place, draining water, and absorbing vibrations.
- Sleepers come in various types (wood, concrete, steel) and are fastened to rails using different clip systems to maintain track gauge and allow thermal expansion.
- Rails can be joined by traditional joints or welded continuously to create smoother tracks with less maintenance.
- The track laying process involves site preparation, subgrade and ballast placement, sleeper laying, rail fastening, tamping, and final inspection.
- Curve design uses radius and versine measurements, with superelevation calculations to balance forces on trains and maintain safety.
- Regular maintenance, including ballast cleaning and tamping, is necessary to keep track geometry intact and extend the lifespan of railway infrastructure.
FAQs
How are curves and superelevation calculated?
Engineers calculate superelevation based on the curve’s radius and expected train speeds, ensuring safe navigation through curves.
What is ballastless track?
Ballastless track is a type of railway track where the traditional ballast layer is replaced with a solid concrete base, offering benefits like reduced maintenance and better track stability.
What is the role of tamping machines in track construction?
Tamping machines compact the ballast beneath the sleepers, aligning and leveling the track to maintain proper geometry and ensure smooth train operation.
