Cracks and hidden defects don’t wait for inspection, they lurk beneath the surface. Ultrasonic flaw detectors bring what’s unseen into the open, making sure that critical equipment keeps working safely and reliably. As a key tool in ultrasonic testing in railways, manufacturing, infrastructure, and more, these devices combine advanced waves and echo‑analysis to spot internal faults before they lead to failure.
In this article you will discover the top 4 applications of ultrasonic flaw detectors: where they’re used, how they work in practice, and why they matter in the world of non‑destructive testing (NDT) ultrasonic methods.
You’ll also learn about the real‑world benefits of this ultrasonic flaw detection technology and how these ultrasonic inspection methods apply across sectors. By the end, you’ll gain a clear view of how such tools deliver value, and in which scenarios they shine.
Application #1: Weld and Joint Inspection in Manufacturing
Welded joints form the backbone of many structures, from pipelines to heavy machinery. Ultrasonic flaw detectors play a crucial role in inspecting these welds, ensuring every connection is strong and defect-free before it bears any load.
By sending high-frequency ultrasonic waves through the welds, these devices can identify internal flaws invisible to the naked eye, such as cracks, porosity, and inclusions. This makes ultrasonic testing an essential part of quality assurance in manufacturing.
Key Ultrasonic Flaw Detection Methods
Ultrasonic flaw detection technology relies on specific inspection methods tailored to different defect orientations:
Straight-beam inspection
This method sends sound waves directly through the weld to detect flaws perpendicular to the surface, making it ideal for spotting porosity and inclusions.
Angle-beam inspection
Here, waves are introduced at an angle to detect flaws running along the weld, such as cracks along the fusion line. This method allows precise mapping of internal weld integrity, providing detailed information about potential weak points.
Benefits of Ultrasonic Flaw Detectors in Manufacturing
Using ultrasonic flaw detectors in manufacturing offers multiple advantages:
- Early defect detection prevents costly failures
- Minimises downtime through fast, non-invasive inspections
- Improves quality control, ensuring reliable and safe products
From welded joints, the applications of ultrasonic flaw detection technology extend into high-stress components in aerospace and heavy industry, where safety standards are even more critical.
Application #2: Component Inspection in Aerospace & Heavy Industry
In aerospace and heavy industry, components operate under extreme stress and harsh conditions. Ultrasonic flaw detectors are indispensable for inspecting structural metals, composites, and other critical parts.
Unlike visual inspection or some other NDT methods, ultrasonic inspection methods can detect hidden internal defects that could compromise component safety.
How Ultrasonic Inspection Works
Ultrasonic waves travel through metals and composites and reflect back when they encounter discontinuities. These reflections allow operators to locate and evaluate defects such as voids, delaminations, or inclusions. This non-destructive method ensures that components remain intact and safe throughout the inspection process.
Common Defects Detected
- Voids: Small pockets within materials that reduce strength
- Delaminations: Separation of layers in composite structures
- Inclusions: Foreign materials trapped in metals or alloys
Advantages in Aerospace and Heavy Industry
Ultrasonic flaw detectors are preferred for critical components because:
- They provide high precision in detecting internal flaws
- They can inspect complex geometries and layered materials
- They support non-destructive testing (NDT) ultrasonic methods, preserving expensive components
By revealing hidden defects in critical components, ultrasonic flaw detectors ensure safety and reliability. Next, their crucial role extends beyond components into the infrastructure that keeps our railways running safely and efficiently.

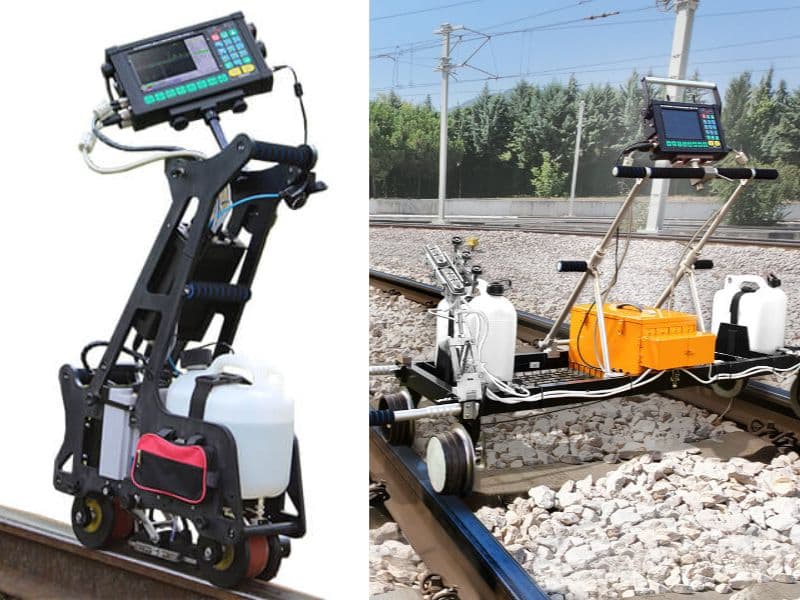

Application #3: Infrastructure & Railways – Ultrasonic Testing in Railways
Rail infrastructure carries heavy loads day in and day out, making safety inspections crucial. Ultrasonic flaw detectors are widely used in rail systems to examine rails, welds, and crossings for hidden defects. By sending high-frequency sound waves through the metal, these devices can reveal cracks, inclusions, or corrosion that are invisible to the naked eye. This makes ultrasonic testing in railways a key part of preventive maintenance and public safety.
Guided-Wave Ultrasonic Methods
One of the most effective ultrasonic inspection methods in railways is guided-wave testing. These waves can travel long distances along a rail, making it possible to inspect extended sections quickly and efficiently. Guided-wave ultrasonic methods are particularly useful for detecting:
- Fatigue cracks forming beneath the surface
- Internal corrosion or pitting
- Weld defects along track joints
Importance for Safety and Maintenance
Regular use of ultrasonic flaw detectors in railways provides several critical benefits:
- Reduces the risk of derailments by identifying faults early
- Minimises costly maintenance by addressing issues before they worsen
- Enhances overall reliability and safety of rail networks
While ultrasonic testing keeps trains running safely, the technology’s versatility extends even further, to pipelines, tanks, and pressure vessels, where internal flaws can cause catastrophic failures.
Application #4: In-service Inspection of Pipelines, Tanks & Pressure Vessels
Pipelines, storage tanks, and pressure vessels operate under high pressure and harsh conditions, making them susceptible to corrosion, erosion, and other internal flaws. Ultrasonic flaw detectors provide a reliable non-destructive way to inspect these assets without interrupting service or dismantling equipment.
How Ultrasonic Inspection Methods Work
By sending ultrasonic waves into the material, flaws such as wall thinning, cracks, and internal corrosion can be detected accurately. The reflections from these waves are analysed to pinpoint the size, location, and severity of defects.
Benefits of In-service Inspections
- Non-invasive testing reduces downtime and avoids operational disruption
- Early detection of corrosion and erosion prevents leaks or catastrophic failure
- Maintains safety standards while extending equipment life
Challenges and Solutions
Inspecting pipelines and pressure vessels comes with challenges:
- Accessibility: Some areas are hard to reach; flexible probes and scanners help overcome this
- Surface condition: Rough or coated surfaces can affect wave transmission; coupling gels or specialized transducers improve accuracy
By addressing these challenges, ultrasonic flaw detectors continue to be an indispensable tool in ensuring industrial safety and operational efficiency.
The versatility of ultrasonic inspection methods across manufacturing, aerospace, railways, and critical infrastructure demonstrates why these devices are central to modern non-destructive testing practices.
Comparative Benefits and Practical Considerations
Ultrasonic flaw detectors stand out among non-destructive testing (NDT) methods due to their versatility, precision, and speed. Compared with other NDT techniques such as radiography, visual inspection, or magnetic-particle testing, ultrasonic inspection methods offer unique advantages in detecting internal flaws without dismantling or damaging components.
Comparing Ultrasonic Flaw Detection Technology with Other NDT Methods
Radiography
- Uses X-rays or gamma rays to capture internal images
- Effective for detecting volumetric defects but requires safety precautions and longer processing time
Visual Inspection
- Quick and inexpensive
- Limited to surface defects; internal flaws remain undetected
Magnetic-Particle Testing
- Detects surface and near-surface cracks in ferromagnetic materials
- Ineffective on non-ferrous metals or deep internal flaws
Ultrasonic flaw detectors excel where these methods fall short, especially in complex geometries, layered materials, and components that cannot be removed for inspection.
Practical Factors to Consider
While ultrasonic inspection methods are highly effective, their performance depends on several practical factors:
- Equipment portability: Modern handheld ultrasonic flaw detectors are easier to carry, enabling on-site inspections
- Operator skill: Accurate interpretation of ultrasonic signals requires training and experience
- Surface preparation: Smooth, clean surfaces improve wave transmission; rough or coated surfaces may require coupling gels
- Material limitations: Some materials with high attenuation or coarse grain structures can reduce detection accuracy
Quick Tips for Effective Ultrasonic Testing
- Choose the right probe or transducer for the material and defect type
- Ensure proper calibration before each inspection session
- Consider environmental conditions, such as temperature and moisture, that may affect wave propagation
By understanding these benefits and practical considerations, operators can maximise the accuracy and efficiency of ultrasonic flaw detectors. With the right approach, these devices deliver reliable results across manufacturing, aerospace, railways, and infrastructure.
Also, our ultrasonic examination services use advanced equipment to locate hidden defects with precision, while our Level III services ensure expert evaluation and compliance. Strengthen your inspection process with our trusted NDT solutions.
Conclusion
Ultrasonic flaw detectors have become an essential tool across multiple industries, from manufacturing and aerospace to railways and critical infrastructure.
Their ability to detect hidden defects, whether in welds, structural components, rails, or pipelines, ensures safety, reliability, and operational efficiency. By using advanced ultrasonic inspection methods, these devices uncover cracks, voids, delaminations, and other internal flaws that might otherwise go unnoticed.
The benefits of ultrasonic flaw detection technology are clear: early defect detection, reduced downtime, cost savings, and improved quality control. While operator skill, equipment choice, and material considerations play a role, understanding and applying these practical factors ensures accurate and reliable inspections.
Whether for routine maintenance or critical safety checks, ultrasonic flaw detectors continue to be a cornerstone of non-destructive testing (NDT) ultrasonic methods, offering industries a dependable way to maintain standards and prevent failures before they occur.
Key Points
- Ultrasonic flaw detectors are essential tools for detecting internal defects in materials without causing damage.
- They are widely used in manufacturing for inspecting welded joints, fusion zones, and structural connections.
- Key inspection methods include straight-beam for perpendicular flaws and angle-beam for flaws along the weld.
- Benefits in manufacturing include early defect detection, reduced downtime, and improved quality control.
- In aerospace and heavy industry, ultrasonic flaw detectors inspect metals, composites, and critical components for voids, delaminations, and inclusions.
- Ultrasonic inspection methods detect defects that visual or other NDT methods might miss, ensuring safety and reliability.
- In railways, ultrasonic testing, including guided-wave methods, identifies fatigue cracks and defects in rails, welds, and crossings.
- For pipelines, tanks, and pressure vessels, ultrasonic flaw detectors enable non-destructive in-service inspections for corrosion, erosion, and internal flaws.
- Compared to other NDT methods, ultrasonic flaw detection offers high precision, can inspect complex geometries, and is effective on a variety of materials.
- Practical considerations for ultrasonic testing include operator skill, equipment portability, surface preparation, calibration, and environmental conditions.
FAQs
What criteria should be used when choosing an ultrasonic flaw detector?
Important criteria include: the material and geometry of the component being inspected, scanning speed required, depth of inspection needed, sensitivity of the device, portability (for field use) and data-recording capability. Evaluating these factors ensures the chosen equipment matches inspection objectives.
How often should inspections be carried out using ultrasonic flaw detectors?
Inspection frequency depends on factors like component criticality, usage conditions, regulatory requirements and past inspection history. For critical assets (rails, axles, welds) frequent inspections help maintain safety and reliability. The exact schedule should be part of a maintenance strategy rather than fixed only by the device.
What defects can be detected by ultrasonic flaw detectors in infrastructure?
Ultrasonic flaw detectors can find flaws such as cracks (transverse, longitudinal), voids or inclusions in materials, weld-joint defects (lack of fusion, slag), fatigue damage in wheels/axles and delaminations in composites or layered structures. The ability to detect internal and hidden flaws makes them essential for infrastructure inspection.
