What keeps trains running safely through switches, junctions, and crossings? The answer lies in turnout inspection, a routine yet vital part of railway operations. Turnouts, often called “track switches,” are where trains change tracks, making them one of the most stress-prone areas in the rail network. If these components fail, the consequences can be severe, from costly delays to catastrophic derailments.
This article breaks down why turnout inspection is critical for railway safety and reliability. You’ll learn which parts are inspected, the common defects found, the latest tools like ultrasonic rail inspection and rail flaw detection services, and how timely railway turnout maintenance prevents failures.
Whether you’re in railway operations or just curious about the backbone of rail safety, this guide covers the essential steps that help keep trains, and passengers, on the right track.
What Is Turnout Inspection and Why It’s Important
Have you ever wondered what happens when a train changes direction or crosses over to another track? It all happens at a turnout, a mechanical section of rail designed to guide wheels smoothly through track junctions.
Because of their design and function, turnouts undergo more mechanical stress and impact than regular rail sections. That’s why turnout inspection is one of the most crucial steps in any rail maintenance program.
A faulty turnout can trigger anything from slowdowns to serious derailments. These areas are subject to constant wheel loading, vibrations, and environmental factors like water, dust, and temperature fluctuations. Regular turnout inspections help railway operators detect damage, wear, and defects early, preventing issues before they escalate.
Why Turnout Inspection Matters
Turnouts are complex assemblies of moving and fixed parts, each of which must be in perfect condition to maintain safe operations. Inspections focus on ensuring that components like switch points, frogs, and fasteners are all aligned, secure, and functional.
By conducting routine inspections, rail operators can:
- Catch early signs of rail wear, joint movement, or fastener failure
- Reduce the risk of derailments and sudden mechanical failures
- Extend the life of turnout components through timely repairs
In high-traffic areas especially, neglecting turnout inspection can cause costly service disruptions and even put lives at risk. That’s why railway turnout maintenance strategies always begin with a structured inspection schedule.
So what exactly do inspectors examine during these routine checks? Let’s break down the critical components and where problems are most likely to show up.
Key Parts Checked During a Turnout Inspection
A complete turnout inspection covers all major structural and functional components of the turnout system. Since each part serves a unique purpose, inspectors take a systematic approach, starting at the switch point and moving through to the frog and fasteners.
Main Components That Require Inspection
Switch Points
These are the rails that move to direct the train from one track to another. Because they’re dynamic and handle high loads, they often show the first signs of wear or alignment issues. Inspectors look for cracked switch tips, bent sections, and whether the point rail properly contacts the stock rail without gaps.
Stock Rails and Closure Rails
These fixed rails work with the switch points to guide the wheels. They are inspected for surface wear, signs of spalling, and internal flaws. Ultrasonic rail inspection is often used here to detect hidden cracks or defects that aren’t visible to the eye.
Frog Assembly (Nose and Wing Rails)
The frog is one of the most impact-prone parts of a turnout. It’s where the train wheels cross over rail gaps. Inspectors focus on:
- Chipping or cracking in the frog nose
- Wear on wing rails
- Secure fit and fasteners holding the assembly
Flangeways and Guard Rails
Flangeways must be deep and wide enough to allow safe wheel flange passage. If debris builds up or the spacing narrows, derailments can occur. Guard rails are also checked to ensure they haven’t shifted or worn unevenly.
Fasteners, Bolts, and Tie Plates
Often overlooked, these components hold everything together. A single missing or loose bolt can cause misalignment over time. Inspectors check:
- Bolt tightness and rust
- Tie plate damage or wear
- Movement or shifting under dynamic load
Advanced Inspection Tools and Methods
While visual and manual checks are still essential, modern inspections also involve advanced tools to improve accuracy. High-traffic and high-speed networks use rail flaw detection services and geometry scanners to detect issues before they pose a risk.
These tools include:
- Ultrasonic rail inspection systems for detecting internal rail flaws
- Automated geometry systems for measuring alignment, angles, and spacing
- Mobile rail flaw detection services that scan turnouts using sensors and data analytics
Technology has significantly improved the speed and reliability of inspections. But identifying a defect is just the first step.
Next, we’ll look at what happens after the inspection, and how proper railway turnout maintenance ensures long-term safety and performance.
Tools and Methods Used in Turnout Inspections
Inspecting a railway turnout requires more than just a set of eyes. While experienced inspectors can catch many surface-level issues, deeper flaws often hide beneath the surface.
That’s why modern turnout inspection combines traditional techniques with advanced technology to ensure every part of the turnout is functioning properly. From basic measurement tools to high-tech ultrasonic testing, each method plays a key role in keeping railway operations safe and efficient.
Manual Checks and Visual Inspections

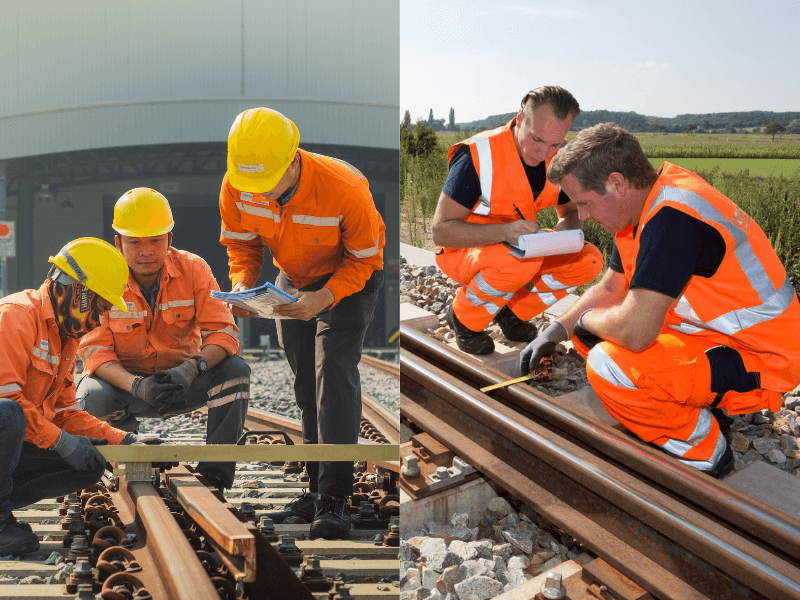

Turnout inspections often start with trained personnel walking along the tracks and visually scanning each component. These manual checks are essential for identifying surface-level damage, alignment issues, and signs of wear that can’t be detected by machines alone.
Inspectors assess the condition of switch points, frog assemblies, bolts, tie plates, and guard rails to ensure everything is aligned, secure, and functioning correctly.
Manual inspection is especially useful for spotting:
- Surface cracks and spalling
- Missing or loose fasteners
- Alignment between switch and stock rails
- Debris buildup in flangeways
While basic, these visual inspections provide real-time insights into the turnout’s condition and help determine whether deeper testing is needed.
Use of Gauges and Measurement Tools
To supplement visual checks, inspectors use mechanical gauges to measure specific tolerances. These tools help determine whether wear has reached critical thresholds that require maintenance.
Common measurements taken include:
- Switch point gap and thickness
- Flangeway depth and width
- Rail wear on the gauge and field sides
- Track gauge (distance between rails)
Consistent measurements allow for comparison over time, making it easier to track gradual wear and plan railway turnout maintenance before breakdowns occur.
Advanced Methods: Ultrasonic and Automated Technologies
Modern railway networks are increasingly turning to technology for more accurate and efficient inspections. This includes both ultrasonic rail inspection systems and rail flaw detection services that use sensors and software to locate internal defects.
Ultrasonic Rail Inspection
This non-destructive method uses sound waves to penetrate the metal and identify cracks or voids inside the rail. It’s highly effective for detecting flaws that manual checks can miss, especially in switch rails, frogs, and welded joints.
Rail Flaw Detection Services
These services often involve vehicles equipped with sensors that scan turnouts at speed. Data is then analyzed to detect:
- Subsurface cracking
- Misalignments
- Irregular rail profiles
- Excessive wear patterns
By combining manual skill with digital precision, inspectors can make more informed decisions, and that leads us to the next step.
What happens after a defect is detected? Let’s take a closer look at how maintenance is planned and executed following an inspection.
Turnout Maintenance After Inspection
Common Maintenance Actions
After a turnout inspection reveals defects, maintenance crews step in to address the issues. Depending on the severity, this can involve anything from simple repairs to full part replacements.
Typical maintenance tasks include:
- Grinding worn or chipped railheads
- Replacing switch points or frogs
- Tightening or replacing fasteners
- Clearing debris from flangeways
- Lubricating moving parts to reduce wear
The goal is not just to fix what’s broken but to restore the turnout to full operational condition, safely and efficiently.
Scheduled Railway Turnout Maintenance Programs
Most railway operators follow a strict maintenance schedule based on usage, load, and prior inspection data. High-traffic areas may require monthly or quarterly checks, while less-used tracks might be on a semi-annual cycle.
Scheduled programs help ensure:
- Regular inspection intervals
- Predictable wear monitoring
- Timely interventions to prevent sudden failures
Incorporating data from rail flaw detection services and ultrasonic testing into these programs allows for smarter, more targeted maintenance planning.
Preventive vs. Corrective Maintenance
There are two main strategies rail operators use when it comes to turnout maintenance:
- Preventive Maintenance: Involves routine inspections and minor repairs done before issues become serious. It helps avoid unexpected breakdowns and reduces long-term costs.
- Corrective Maintenance: Performed after a problem has been detected, often requiring more time, labor, and resources. This approach can lead to service delays if defects aren’t caught early.
When inspections are thorough and consistent, preventive maintenance becomes easier to implement, saving time, money, and lives.
How Turnout Inspection Improves Railway Safety
A railway system is only as safe as its weakest component, and for many networks, that weak link is often a poorly maintained turnout. Turnout inspection plays a direct and measurable role in enhancing safety, reducing disruptions, and increasing operational reliability.
It’s not just about spotting damage; it’s about proactively avoiding accidents and ensuring trains move through complex track areas without incident.
Real-World Improvements in Safety and Reliability
Rail operators around the world have seen major safety improvements simply by upgrading their turnout inspection programs. By identifying early-stage defects in switch rails, frog assemblies, and fasteners, crews can intervene before the damage leads to a service stoppage, or worse, a derailment.
Some key benefits observed include:
- Reduced track-related incidents in high-traffic zones
- Fewer emergency repairs and unexpected maintenance costs
- Longer component life due to timely intervention
- Improved worker and passenger safety
In some regions, incidents caused by turnout failures dropped significantly after introducing scheduled railway turnout maintenance backed by ultrasonic and digital inspection tools.
Reducing Disruptions with Regular Inspections
Service delays are often caused by preventable track issues, and turnouts are one of the leading contributors. By combining manual inspections with rail flaw detection services, operators can identify wear or internal cracks long before they result in a breakdown.
Routine turnout inspection allows teams to:
- Schedule repairs during low-traffic periods
- Avoid last-minute emergency maintenance
- Maintain consistent train schedules even under heavy loads
In short, well-executed inspections reduce unplanned disruptions, and that helps boost public trust in the rail system.
The Future of Turnout Inspection: Smarter, Faster, Safer
As rail traffic increases, so does the pressure to inspect more efficiently without compromising safety. That’s why the future of turnout inspection is moving toward automation, real-time data collection, and artificial intelligence.
Emerging technologies include:
- AI-powered visual inspection systems
- Autonomous track-monitoring vehicle
- Remote sensors that report component health in real-time
- Enhanced ultrasonic rail inspection integrated with digital mapping
These innovations aim to make inspections faster and more precise, helping crews detect flaws that would be impossible to see with the naked eye.
Conclusion
In railway operations, safety starts long before a train leaves the station, it begins on the tracks, especially at turnouts. These high-impact areas are where rail stress, wear, and risk converge. That’s why turnout inspection is more than just a maintenance task, it’s a critical safety measure that protects passengers, cargo, and infrastructure.
From manual checks to ultrasonic rail inspection and advanced flaw detection services, each method plays a vital role in identifying issues before they become hazards. Regular inspections combined with timely railway turnout maintenance not only reduce disruptions but also extend the life of essential components.
As technology evolves, turnout inspections will become even more precise, predictive, and efficient, setting a higher standard for rail safety across the industry.
By prioritizing turnout inspection, railway operators make a clear statement: safety isn’t negotiable, it’s engineered into every switch, every track, and every journey.
Key Points
- Turnout inspection is essential for ensuring the safety and smooth operation of railway systems, especially where tracks diverge or cross.
- Turnouts face higher stress and wear compared to straight tracks, making them more prone to defects if not regularly inspected.
- Key turnout components that require inspection include switch points, stock rails, frogs, flangeways, and fasteners.
- Manual and visual inspections are the foundation of turnout safety checks, used to detect surface-level wear and alignment issues.
- Measurement tools and gauges help inspectors assess switch gaps, rail wear, flangeway dimensions, and overall track geometry.
- Ultrasonic rail inspection is a non-destructive method used to detect internal cracks or flaws within rail components.
- Rail flaw detection services offer mobile or automated solutions that enhance accuracy and efficiency in detecting hidden turnout issues.
- Common maintenance actions after inspection include grinding, part replacement, bolt tightening, and debris removal from flangeways.
- Regular railway turnout maintenance programs help prevent breakdowns, extend component life, and reduce service disruptions.
- The future of turnout inspection includes smart technologies like AI-powered systems, autonomous monitoring vehicles, and real-time data sensors to further improve railway safety.
FAQs
How do regular inspections reduce service disruptions?
By detecting issues early, inspections allow maintenance to be scheduled during off-peak hours, avoiding emergency interventions that can halt rail traffic unexpectedly. This keeps train schedules on track and prevents costly delays.
Are turnout inspection practices standardized by regulation?
Yes. Regulatory bodies (like the FRA in the U.S.) set minimum standards for inspection frequency, methods, and personnel qualifications. These often include a mix of manual checks, geometry measurements, and ultrasonic or continuous rail testing.
How does ultrasonic rail inspection improve turnout safety?
Ultrasonic rail inspection sends high-frequency sound waves into the metal to find internal cracks, fissures, or voids that manual checks can’t detect. By catching hidden rail flaws early, this method prevents unexpected failures and supports safer, more reliable railway operations.
