Railways are the backbone of modern transportation, but ensuring their safety and reliability is a constant challenge. Ultrasonic Rail Testing has emerged as a crucial technology, enabling rail operators to detect internal flaws that are invisible to the naked eye.
This advanced method helps maintain smooth operations, reduces the risk of accidents, and supports the shift toward smarter railway infrastructure.
In this article, we will explore how ultrasonic rail inspection systems work and how they integrate with smart railway inspection technologies. You will learn about the role of non-destructive testing in railways, the benefits of automated inspection, and how ultrasonic data supports railway predictive maintenance.
By the end, you’ll understand why ultrasonic rail testing is becoming an essential part of modern, efficient, and safe rail networks.
Ultrasonic Rail Testing and Systems
Ultrasonic Rail Testing uses high-frequency sound waves to detect internal rail flaws such as cracks, voids, and inclusions that are invisible on the surface. The process involves a transducer emitting ultrasonic pulses into the rail.
When these waves encounter irregularities, they reflect back and are captured by sensors. By analyzing these reflections, technicians can pinpoint the location, size, and type of defects.
This method is a core part of non-destructive testing in railways, allowing detailed inspections without damaging the track material. Its precision ensures that even small flaws are detected before they escalate into serious safety issues.
Types of Ultrasonic Rail Inspection Systems

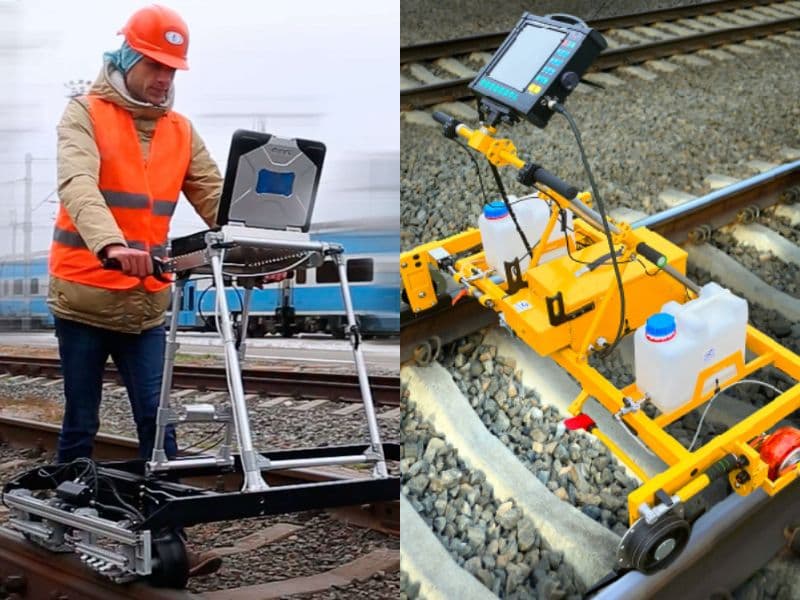

Modern rail networks can use different ultrasonic rail inspection systems depending on the inspection requirements. Manual handheld devices are lightweight and ideal for spot checks or small sections of track, allowing inspectors to quickly identify potential issues.
Vehicle-mounted systems are designed for high-speed inspections across long distances, automatically collecting data while the train moves. Semi-automated, one-pass portable systems provide a balance, enabling operators to move efficiently along tracks while gathering comprehensive data.
Each system type offers its own advantages, and selecting the right one depends on factors like track length, frequency of inspections, and operational priorities.
Comparison with Traditional Inspection
Compared to traditional visual inspections or magnetic methods, ultrasonic testing provides a much deeper and more accurate view of the rail’s internal condition. Traditional methods rely heavily on human observation, which can miss subtle internal flaws, whereas ultrasonic technology penetrates the rail material to uncover hidden defects.
It also allows inspections to be conducted faster and more efficiently, reducing operational downtime. While ultrasonic testing provides high accuracy and reliability, its integration with smart railway inspection systems unlocks its full potential, making proactive maintenance a reality.
Smart Railway Inspection
In modern rail networks, the integration of ultrasonic rail inspection systems with smart railway platforms has transformed maintenance and safety operations. By connecting inspection equipment to centralized management systems, data can be uploaded automatically, enabling real-time monitoring.
When potential defects are detected, alerts can be sent immediately to maintenance teams, allowing them to take prompt action. This integration ensures that inspections are no longer reactive but part of a continuous, proactive process.
Rail operators can plan maintenance schedules efficiently and avoid unexpected disruptions, while leveraging data to make informed operational decisions.
Real-Time Data Collection and Analysis
Smart railway inspection systems enhance the value of ultrasonic rail testing by enabling real-time data collection and analysis. Automated inspection vehicles equipped with ultrasonic sensors can scan thousands of meters of track in a single run.
Advanced software and AI algorithms then process this data to identify defects, classify them, and even predict their growth over time. The result is faster, more accurate decision-making, with critical issues flagged immediately.
Historical data can also be stored to track trends, helping operators anticipate maintenance needs before defects pose safety risks.
Benefits for Safety and Reliability
The combination of ultrasonic rail testing and smart inspection technologies dramatically improves the safety and reliability of rail networks. Early defect detection prevents accidents and derailments, while optimized maintenance schedules extend the lifespan of the tracks.
Reduced downtime ensures smoother transport operations and minimizes service interruptions. By integrating inspection with intelligent systems, railways shift from reactive maintenance to a predictive, proactive approach, enhancing both operational efficiency and passenger safety.
Non-Destructive Testing in Railways
Non-destructive testing (NDT) has become a cornerstone of modern railway maintenance. Unlike traditional methods that may require removing or damaging parts of the track, NDT techniques allow for in-depth inspection without disrupting operations.
Common NDT methods in railways include ultrasonic testing, magnetic particle inspection, eddy current testing, and visual inspections enhanced with digital imaging. These methods ensure that potential defects, such as cracks, corrosion, or inclusions, are identified early, helping to prevent accidents and costly downtime.
How Ultrasonic Testing Fits Within NDT
Among the NDT techniques, ultrasonic rail testing stands out for its ability to detect internal flaws that are invisible on the surface. By sending high-frequency sound waves through the rail and analyzing reflections, ultrasonic testing provides a detailed view of the rail’s internal condition.
Its precision makes it an essential part of the NDT toolkit for railway operators. Unlike surface inspections or simpler testing methods, ultrasonic testing can identify micro-cracks or subsurface voids before they develop into serious safety issues, supporting proactive maintenance strategies.
Complementary Inspection Techniques
While ultrasonic testing is highly effective, combining it with other NDT methods increases overall reliability. For example:
- Magnetic particle inspection can quickly detect surface cracks in railhead areas.
- Eddy current testing is useful for spotting defects in specific rail components.
- Digital visual inspections enhance monitoring for corrosion or wear.
Together, these methods create a layered approach to rail safety, ensuring no defect goes unnoticed. But even with multiple NDT methods, manual inspections have limitations. This is where automated rail inspection technologies take the process to the next level.
Automated Rail Inspection
Automation has revolutionized the way railways conduct inspections. Modern inspection vehicles are equipped with ultrasonic rail inspection systems that scan tracks at high speeds, capturing vast amounts of data without halting train operations.
These systems use multiple transducers and advanced sensors to ensure comprehensive coverage of the rails, including areas that are difficult to access manually. Automation not only increases inspection frequency but also reduces human error, creating a more consistent and reliable maintenance process.
AI and Machine Learning for Defect Detection
The power of automation is amplified when combined with AI and machine learning. Collected ultrasonic data is processed in real time to identify patterns and classify defects automatically.
AI algorithms can distinguish between minor anomalies and critical defects, prioritizing maintenance tasks and reducing the risk of human oversight. Over time, machine learning improves predictive capabilities by learning from historical data, further enhancing the precision of inspections.
Efficiency and Accuracy Improvements
Automated rail inspection delivers multiple benefits:
- Covers longer track sections faster than manual methods
- Provides highly accurate and repeatable measurements
- Reduces track downtime and service interruptions
- Supports predictive maintenance planning
By integrating automation, ultrasonic rail testing evolves from a standalone tool into a strategic component of smart railway inspection. With real-time monitoring and intelligent data analysis, railway operators can anticipate problems before they become safety hazards.
Predictive Maintenance Using Ultrasonic Data
One of the most transformative applications of ultrasonic rail testing is its role in railway predictive maintenance. By continuously monitoring rail conditions, ultrasonic systems provide data that allows operators to anticipate potential failures before they occur.
This proactive approach moves rail maintenance away from reactive repairs and towards a strategy where interventions are planned based on real rail health data. Predictive maintenance not only improves safety but also optimizes resource allocation, reducing unnecessary inspections and emergency repairs.
Early Defect Detection and Track Longevity
Detecting defects early is the key to extending the lifespan of rail tracks. Ultrasonic testing identifies internal flaws such as cracks, corrosion, or voids long before they become surface-level problems. Addressing these issues promptly prevents further deterioration and reduces the risk of derailments.
In addition, early detection helps operators plan targeted maintenance, minimizing service interruptions and preserving track integrity. By combining ultrasonic rail inspection systems with historical inspection data, railways can forecast maintenance needs, ensuring tracks remain safe and reliable for years.
Smart railway infrastructure demands precise and reliable testing. Our ultrasonic examination services detect hidden rail defects, while our Level III services provide expert oversight to ensure testing accuracy and compliance. Enhance safety and efficiency in your modern rail network with our professional NDT solutions.
Challenges and Future Trends
While ultrasonic testing offers unmatched insight into rail conditions, it is not without limitations. Detection accuracy can be affected by rail surface conditions, operator experience, and equipment calibration.
Some defect types, particularly very small or angled cracks, may be difficult to detect. Furthermore, manual ultrasonic inspections can be time-consuming, and even automated systems require periodic verification to ensure reliability. Despite these challenges, ongoing improvements in sensor technology and software continue to enhance system performance.
Emerging Technologies and Innovations
The future of ultrasonic rail testing lies in the integration of advanced technologies. AI-powered analytics, machine learning algorithms, and IoT-enabled sensors are improving defect detection and predictive modeling.
High-speed automated inspection vehicles equipped with multi-sensor systems promise faster, more accurate coverage of rail networks.
Additionally, combining ultrasonic testing with complementary NDT methods, such as eddy current or magnetic particle testing, offers a holistic view of rail health. These innovations are paving the way for fully smart railway inspection systems, where maintenance decisions are guided by real-time, intelligent insights.
As ultrasonic rail testing evolves alongside automation and predictive technologies, it is clear that railways of the future will be safer, more efficient, and better prepared to prevent failures before they occur.
Conclusion
Ultrasonic Rail Testing has become an essential tool for modern railways, combining precision, efficiency, and safety in a single technology. By detecting internal rail flaws early, supporting predictive maintenance, and integrating with smart railway inspection systems, it helps rail operators prevent accidents, extend track lifespan, and minimize service disruptions.
As automation, AI, and advanced data analytics continue to evolve, ultrasonic testing will play an even more central role in railway predictive maintenance and automated rail inspection.
The future of rail infrastructure lies in these intelligent systems, where maintenance decisions are driven by real-time insights and proactive strategies. For rail networks striving for safety, reliability, and efficiency, ultrasonic rail testing is no longer optional, it is indispensable.
Key Points
- Ultrasonic Rail Testing uses high-frequency sound waves to detect internal rail flaws that are invisible on the surface.
- It is a critical part of non-destructive testing in railways, allowing inspections without damaging tracks.
- Various ultrasonic rail inspection systems exist, including manual handheld devices, vehicle-mounted systems, and semi-automated portable units.
- Compared to traditional inspections, ultrasonic testing provides faster, more accurate, and deeper insights into rail conditions.
- Integration with smart railway inspection systems enables real-time data collection, automated alerts, and centralized monitoring.
- Automated inspection technologies, combined with AI and machine learning, improve defect detection, classification, and predictive maintenance capabilities.
- Predictive maintenance using ultrasonic data allows early defect detection, prolongs track lifespan, and reduces downtime.
- Case studies show that ultrasonic inspections prevent accidents, optimize maintenance schedules, and enhance rail safety.
- Limitations of ultrasonic testing include challenges in detecting very small or angled cracks and reliance on proper calibration and operator expertise.
- Emerging technologies, including AI, IoT sensors, and multi-sensor automated systems, are shaping the future of smart railway inspection and proactive rail maintenance.
FAQs
How does Ultrasonic Testing compare to traditional methods?
Traditional inspection methods often rely on visual assessments or surface-level techniques, which may miss internal defects. Ultrasonic testing provides a deeper, more accurate analysis, ensuring that even minute flaws are detected and addressed promptly.
What role does Ultrasonic Testing play in Smart Railway Infrastructure?
In smart railways, ultrasonic testing integrates with digital monitoring systems, enabling real-time data collection and analysis. This integration facilitates predictive maintenance, allowing for timely interventions and reducing the risk of unexpected failures.
Are there any limitations to Ultrasonic Rail Testing?
While highly effective, ultrasonic testing requires skilled operators and proper calibration. Additionally, certain rail conditions, such as rough surfaces or extreme temperatures, may affect the accuracy of the results.
How does Ultrasonic Testing contribute to predictive maintenance?
By continuously monitoring rail conditions and identifying potential issues early, ultrasonic testing allows for maintenance activities to be scheduled proactively. This approach minimizes downtime and extends the lifespan of the rail infrastructure.
