Ultrasonic Testing Guide: Basics, Equipment, and Railway Applications

Railway tracks, industrial pipelines, and critical machinery all face the risk of hidden defects that can lead to costly failures or safety hazards. This Ultrasonic Testing Guide will show you how ultrasonic testing (UT) can detect these flaws early, saving time, money, and lives.

In this article, you will learn the basics and principles of UT, an overview of ultrasonic testing methods, step-by-step inspection procedures, tips for choosing the right equipment, and how UT is applied in the railway industry. Whether you are a beginner or a professional looking to refresh your knowledge, this guide provides clear and practical insights into ultrasonic testing and its applications.

UT Basics and Principles

Ultrasonic testing (UT) is a non-destructive testing method that uses high-frequency sound waves to detect internal flaws in materials. This Ultrasonic Testing Guide will help you understand the fundamentals of UT, starting with its definition and working principle.

Essentially, UT works by sending ultrasonic waves into a material and analyzing the echoes reflected back. Any disruption in the wave’s path, such as cracks, voids, or inclusions, creates a measurable signal, revealing hidden defects before they cause serious problems.

Key Components: Transducers, Couplants, and Instrumentation

For UT to work effectively, several components must function together:

• Transducers: Convert electrical signals into ultrasonic waves and back, acting as the “eyes” of UT.
• Couplants: Substances like gels or oils that facilitate smooth transmission of waves from the transducer into the test material.
• Instrumentation: Devices that process echoes, display results, and help inspectors interpret data accurately.

Each of these components plays a critical role in ensuring accurate detection. Without proper equipment, even the most skilled inspector could miss vital defects.

Types of Ultrasonic Waves: Longitudinal and Shear Waves

UT uses two main types of waves, each suited for different applications:

• Longitudinal waves: Travel parallel to the wave direction; ideal for thickness measurement and detecting surface and near-surface defects.
• Shear waves: Travel perpendicular to the wave direction; effective for detecting cracks and flaws at various angles.

Grasping these wave types lays the foundation for selecting the right ultrasonic testing methods for your inspection needs.

Mastering ultrasonic testing is key to effective long-range rail inspections. Our ultrasonic examination services detect internal rail defects, while Level III services provide expert guidance for accurate, reliable testing. Ensure railway safety with our professional non-destructive testing solutions.

Ultrasonic Testing Methods Overview

The success of UT depends not just on equipment but also on choosing the right testing method. This section of the Ultrasonic Testing Guide introduces the main methods used in industry, including their unique advantages and applications.

Pulse-Echo Method

The pulse-echo method is the most common UT technique. Here’s how it works:

• A transducer sends a pulse into the material.
• The same transducer receives echoes reflected from internal defects or the material’s back surface.

Applications:

• Detecting cracks in metal components
• Measuring material thickness
• Evaluating weld quality

This method is popular because it uses a single transducer and provides fast, reliable results. But when materials are thick or complex, inspectors often turn to another method…

Through-Transmission Method

Unlike pulse-echo, the through-transmission method uses two transducers: one to send waves and another to receive them on the opposite side.

• Advantages:

  • Detects very small or subtle flaws
  • Provides clear signals in uniform materials

Applications:

• Composite materials
• Thick metals
• Critical aerospace components

While highly effective, it requires access to both sides of the material, which is not always practical. That’s why advanced methods like Phased Array Ultrasonic Testing have become game-changers.

Phased Array Ultrasonic Testing (PAUT)

PAUT uses multiple small elements in a single transducer that can be electronically controlled to focus and steer the beam.

Advantages:

• Can inspect complex shapes and welds
• Provides high-resolution images of defects
• Reduces inspection time significantly

Use Cases:

• Weld inspection in pipelines and railways
• Aerospace and power generation industries

PAUT offers precision, but for certain critical welds, inspectors may rely on yet another specialized technique: Time-of-Flight Diffraction (TOFD).

Time-of-Flight Diffraction (TOFD)

TOFD measures the time it takes for diffracted waves from a defect’s tip to reach the receiver. Unlike conventional methods, it focuses on defect sizing rather than detection alone.

Benefits:

• Accurate crack sizing
• High repeatability
• Detects both surface and internal flaws

Applications:

• Rail weld inspections
• Pressure vessel evaluations
• Pipelines in critical infrastructure

By understanding these ultrasonic testing methods, you are ready to dive deeper into practical inspection procedures, ensuring every flaw is detected before it becomes a problem. And next, we’ll explore exactly how inspections are carried out step by step.

Ultrasonic Inspection Procedures

Performing an effective ultrasonic inspection requires more than just equipment; careful preparation and setup are critical. This part of the Ultrasonic Testing Guide will guide you through each step, from preparing the surface to reporting your findings. Proper procedures ensure reliable results and prevent missed defects.

Preparation and Setup

Before starting any UT inspection, ensure the material is accessible and the equipment is calibrated. Key steps include:

• Checking the transducer and instruments for proper function
• Calibrating equipment according to material type and thickness
• Ensuring safe working conditions for inspectors

Surface Preparation and Coupling Methods

The surface of the material must be smooth and clean to allow ultrasonic waves to pass efficiently. Couplants such as gels, oils, or water create a bridge between the transducer and the material, ensuring minimal signal loss. Without proper coupling, even high-quality equipment can produce unreliable results.

Inspection Techniques

Effective inspections rely on systematic scanning. Techniques include:

• Straight-line scans: Move the transducer linearly along the surface
• Raster scans: Cover the area in a grid pattern for complete coverage
• Angle beam scans: Use shear waves for angled defects or weld inspections

Scanning Patterns and Data Acquisition

Consistent scanning patterns help capture accurate data. Modern instruments display results in real-time, allowing inspectors to track defects and identify trends.

Data Interpretation

Interpreting the echoes is where skill meets science. Key steps include:

• Identifying indications: Recognizing echoes that may signal cracks, voids, or inclusions
• Analyzing indications: Assessing size, location, and severity of defects

Even after accurate detection, your work isn’t complete until the findings are documented correctly.

Reporting

Documenting findings is essential for accountability and future reference. A standard report should include:

• Material details and inspection conditions
• Methods used and equipment specifications
• Observed defects, measurements, and recommended actions

By following these procedures, inspectors ensure UT results are consistent, reliable, and actionable. But all of this starts with choosing the right ultrasonic equipment, which we’ll cover next.

Choosing Ultrasonic Equipment

Selecting the proper equipment is crucial for accurate inspections. This section of the Ultrasonic Testing Guide will help you make informed choices based on your material, inspection type, and specific needs.

Factors to Consider

Before buying or using UT equipment, consider:

• Material type: Metals, composites, or plastics respond differently to ultrasonic waves
• Thickness and geometry: Determines wave type, probe frequency, and inspection method
• Defect type: Surface cracks, internal flaws, or weld imperfections

Types of Equipment

Ultrasonic equipment comes in different forms to suit various applications:

• Portable units: Lightweight, battery-powered, ideal for field inspections
• Stationary units: High-resolution, suitable for lab or production-line testing

Selecting Probes and Accessories

The choice of probes and accessories affects the accuracy of detection. Key factors include:

• Frequency: Higher frequency for small or near-surface flaws, lower for deeper penetration
• Size: Matches surface area and accessibility
• Beam angle: Adjusts wave direction to detect angled cracks or weld defects

Choosing the right combination of equipment and accessories ensures your ultrasonic inspections are both effective and efficient. Once you’ve selected the proper tools, you are ready to apply them in real-world scenarios, such as railway inspections, which we’ll explore in the next section.

Railway Applications of Ultrasonic Testing

Railways are critical infrastructure where safety cannot be compromised. This part of the Ultrasonic Testing Guide explains how UT plays a key role in keeping rails, welds, wheels, and axles safe and reliable. From detecting hidden defects to ensuring long-term performance, ultrasonic testing has become a cornerstone of modern railway maintenance.

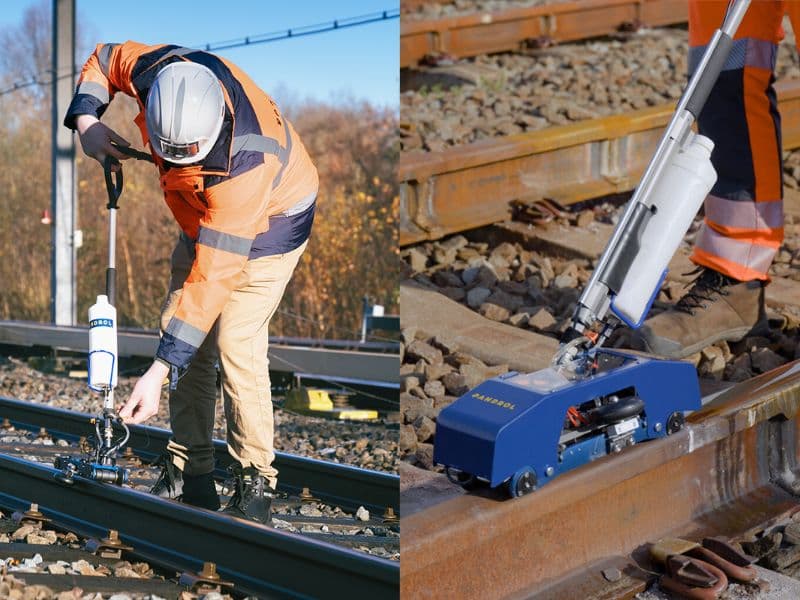

Rail Inspection

Rail integrity is vital to prevent accidents and ensure smooth operations. UT can detect both internal flaws and surface defects that are invisible to the naked eye.

• Internal flaws: Cracks, inclusions, or voids inside the rail that could grow under heavy loads
• Surface defects: Head checks, spalling, and corrosion that weaken the rail over time

Regular ultrasonic rail inspections allow maintenance teams to address problems early, avoiding costly repairs and service interruptions.

Weld Inspection

Rail joints are particularly vulnerable to stress and wear. UT ensures the integrity of rail welds by detecting cracks or incomplete fusion.

• Pulse-echo and PAUT methods are commonly used to inspect welds
• Detects defects such as porosity, slag inclusions, and cracks

By identifying issues before they escalate, rail companies maintain safer tracks and extend the lifespan of welded joints.

Wheel and Axle Testing

Wheels and axles are critical components subjected to extreme forces. UT identifies cracks and wear before failures occur.

• Detects internal cracks that could lead to catastrophic failures
• Monitors wear patterns to plan replacements and maintenance schedules

Proper wheel and axle inspections help prevent derailments and maintain the smooth operation of trains.

Advantages of UT in Railways

Ultrasonic testing provides several advantages that make it ideal for railway applications:

• Non-destructive: Inspect components without causing damage
• Accurate: Detects even small defects before they become serious
• Efficient: Covers large areas quickly, reducing downtime

With these benefits, UT has become indispensable in modern rail maintenance. Now that you know how UT is applied in railways, the next step is understanding how to implement inspections effectively, select the right equipment, and ensure accurate results, the topics we’ve already covered in the previous sections of this guide.

Conclusion

Ultrasonic testing is a powerful, non-destructive method that plays a critical role in maintaining safety and quality across industries, especially in railways.

This Ultrasonic Testing Guide has walked you through the fundamentals, UT basics and principles, key ultrasonic testing methods, step-by-step inspection procedures, and tips for choosing the right equipment. Understanding these elements ensures accurate detection of defects before they lead to costly failures.

From rail inspections to weld, wheel, and axle testing, UT offers fast, reliable, and precise results that help prevent accidents and extend the lifespan of critical components.

By following proper procedures, selecting the right tools, and applying the appropriate testing methods, inspectors and maintenance teams can maximize safety, efficiency, and performance. Whether you are new to UT or looking to refine your skills, this guide provides a solid foundation to carry out effective inspections with confidence.

Key Points

• Ultrasonic Testing (UT) Basics: UT is a non-destructive method that uses high-frequency sound waves to detect internal flaws in materials.
• Key Components: UT requires transducers, couplants, and instrumentation for accurate defect detection.
• Ultrasonic Waves: Longitudinal waves are ideal for thickness and surface measurements, while shear waves detect angled or deeper cracks.
• Pulse-Echo Method: Uses a single transducer to send and receive pulses; widely used for crack detection and thickness measurement.
• Through-Transmission Method: Requires two transducers; effective for thick or composite materials and small defect detection.
• Advanced UT Methods: PAUT and TOFD provide high-resolution imaging, accurate crack sizing, and efficient inspections of complex geometries.
• Inspection Procedures: Proper surface preparation, coupling, scanning techniques, and systematic data interpretation are critical for reliable results.
• Reporting: Findings must be documented with details of materials, methods, defects, and recommendations for maintenance.
• Choosing Equipment: Selection depends on material type, thickness, defect type, and equipment features such as frequency, size, beam angle, and portability.
• Railway Applications: UT is essential in rail, weld, wheel, and axle inspections, offering non-destructive, accurate, and efficient detection of defects to maintain safety and performance.
