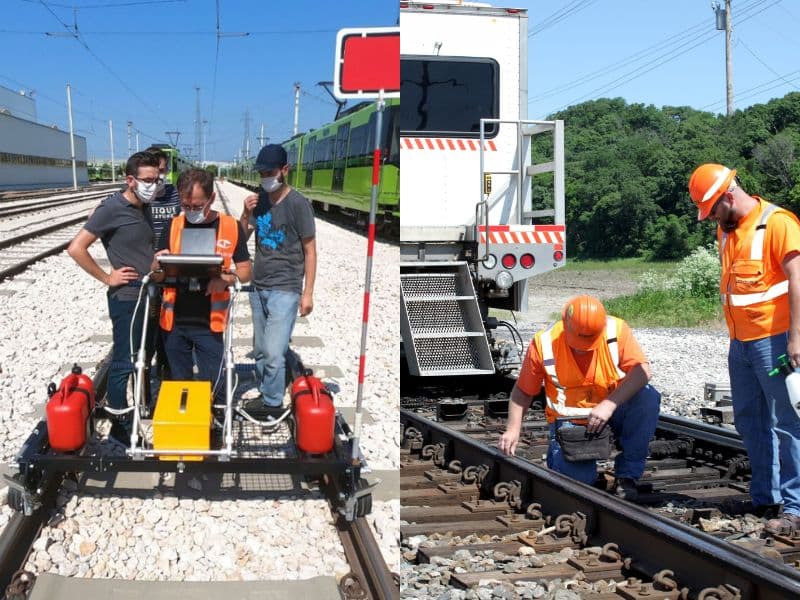

Ever wondered how inspectors find tiny cracks or flaws inside solid metal without breaking it open? The answer lies in the ultrasonic testing process, a widely used method that relies on high-frequency sound waves to spot hidden defects. It’s a go-to technique in industries like aerospace, construction, and manufacturing, where safety and accuracy matter most.
In this article, we’ll break down the ultrasonic testing procedure into simple, easy-to-follow steps. From surface prep to data analysis, this UT step-by-step guide covers all the ultrasonic inspection steps you need to know. Whether you’re getting started in NDT or brushing up your knowledge, you’ll see exactly how ultrasonic testing works and why it’s such a reliable choice.
What is Ultrasonic Testing?
The ultrasonic testing process is a reliable non-destructive testing (NDT) method that uses high-frequency sound waves to find internal defects or measure the thickness of a material. A transducer sends sound waves into the object being tested.
When these waves hit a boundary, such as a crack or the opposite side of the material, they bounce back. By capturing and analyzing these echoes, inspectors can locate flaws deep inside without causing any damage. This process works well on metals, composites, and even concrete, making it useful across many industries.
In manufacturing, ultrasonic testing is used to inspect welds, detect voids in castings, and check the quality of joints. In the aerospace industry, it ensures that aircraft components are free from cracks or corrosion, especially in parts that face stress or high pressure.
Construction projects use it to test the strength of steel beams, bridges, and concrete structures. Other industries that rely on UT include:
- Oil and gas (for pipeline inspections)
- Power generation (for turbine and boiler checks)
- Automotive (to verify component durability)
Ultrasonic testing has several advantages over other NDT methods:
- High accuracy in detecting even small internal flaws
- Deep penetration into thick materials
- Immediate results, which help speed up decision-making
- No damage to the tested item
- Minimal preparation required compared to methods like radiographic testing
According to the American Society for Nondestructive Testing (ASNT), the ultrasonic testing process is one of the most sensitive and versatile NDT techniques available today. Its ability to detect flaws quickly and safely makes it a trusted option in safety-critical industries.
Ultrasonic Testing Procedure: Step-by-Step Guide
The ultrasonic testing process follows a systematic approach to ensure accuracy and repeatability. Each step plays a critical role in detecting internal flaws and verifying material integrity without causing damage. Below is a detailed guide outlining each phase of the procedure.
1. Surface Preparation
Before starting the inspection, the test surface must be clean and smooth. Dirt, oil, rust, or any loose particles can interfere with the sound waves and reduce test reliability. Inspectors typically use a cloth, brush, or solvent to remove contaminants.
The surface must also be flat enough to allow even contact between the transducer and the material. Smoothness ensures better transmission of sound waves from the transducer into the test object.
2. Equipment Calibration
Accurate results depend on proper calibration. Technicians adjust the ultrasonic testing device using known reference standards and select the right frequency for the test, usually between 1 MHz and 5 MHz, depending on the material type and thickness.
Calibration helps align the time base, gain, and sensitivity of the equipment so that it accurately reflects the true size and position of any detected flaw.
3. Selection of Transducers and Couplants
Not all tests require the same transducer. The type chosen depends on the inspection goal:
- Straight beam transducers are used for detecting flaws parallel to the surface.
- Angle beam transducers help find defects at specific orientations, such as weld flaws.
To enable proper transmission of ultrasonic waves, a couplant is applied between the transducer and the test surface. This material often gel, oil, or water eliminates air gaps that would otherwise block sound waves from entering the object.
4. Conducting the Inspection
The transducer is positioned firmly on the test surface, and the inspector moves it systematically across the area being evaluated. As the sound waves pass through the material, they bounce back upon hitting any boundary or flaw. The signals are displayed on an oscilloscope or digital screen.
Key inspection actions include:
- Scanning the surface evenly to ensure complete coverage
- Watching the display for reflected signals (indicating cracks, voids, or inclusions)
5. Data Analysis and Interpretation
After collecting the signals, the technician analyzes the waveform patterns to determine if there are any flaws. The amplitude and timing of the reflections help identify the location, size, and shape of discontinuities.
These readings are then compared with acceptance criteria defined by industry standards or project specifications to decide if the material passes inspection.
6. Documentation and Reporting
Once the inspection is complete, results are documented in detail. This includes:
- Equipment settings
- Transducer type and frequency
- Couplant used
- Scanning technique
- Defect location and size (if any)
A final inspection report is prepared for quality assurance and record-keeping, ensuring that the results can be reviewed or verified later if needed.
Common Applications of Ultrasonic Testing
The ultrasonic testing process is used in a wide range of industries due to its ability to detect internal flaws without damaging the test object. It plays a key role in quality control, maintenance, and safety inspections across many sectors.
One of the most common uses is the inspection of welds in pipelines, pressure vessels, and structural components. UT helps identify cracks, lack of fusion, and other welding defects that could lead to serious failures if left undetected. It is also used during the construction of bridges, ships, and buildings where strong, flawless welds are essential.
Another major application is measuring material thickness to check for corrosion or erosion. This is especially useful in industries like oil and gas, where pipelines, storage tanks, and boiler tubes are exposed to harsh environments. Regular thickness checks using UT help prevent leaks and extend equipment lifespan.
In addition, UT is widely used to detect internal flaws in castings, forgings, and composite materials. These flaws can include voids, inclusions, and delaminations that weaken the structure. By identifying them early, manufacturers can take corrective action before the component is put into service.
Thanks to its accuracy and non-destructive nature, ultrasonic testing is a trusted method in industries where material reliability and safety are critical.
Advantages and Limitations
The ultrasonic testing process is widely used due to its precision and non-invasive nature. Below are the key advantages and limitations explained under specific subtopics for clarity.
Advantages
- Non-Destructive Nature
One of the biggest strengths of ultrasonic testing is that it doesn’t damage the material being inspected. This makes it ideal for quality assurance in critical components where maintaining structural integrity is essential. Components can be tested multiple times throughout their lifecycle. - High Sensitivity
Ultrasonic testing is highly sensitive to tiny flaws such as cracks, voids, or inclusions, even those that are deep inside the material. This sensitivity allows early detection of potential issues before they become serious failures. - Immediate Results
Technicians can often view results in real-time using the instrument’s display. This immediate feedback supports quick decision-making during manufacturing, maintenance, or inspections, reducing downtime and improving efficiency. - Wide Range of Applications
UT can be used on various materials including metals, plastics, and composites. It is applied in multiple industries such as aerospace, construction, manufacturing, and oil and gas, making it a versatile and reliable testing method.
Limitations
- Accessibility Requirements
Some ultrasonic tests require access to both sides of the object, especially when measuring thickness or locating deep flaws. This can be a challenge for large, fixed, or complex structures where only one side is reachable. - Surface Condition Sensitivity
The effectiveness of ultrasonic testing depends heavily on surface conditions. Rough, dirty, or corroded surfaces can disrupt sound wave transmission and lead to inaccurate results unless properly cleaned and prepared. - Material Limitations
Certain materials, such as cast iron or coarse-grained alloys, can scatter or absorb ultrasonic waves. This makes it difficult to get reliable readings and limits the use of UT on these materials. - Skilled Operation Needed
Ultrasonic testing requires trained and experienced technicians. Proper calibration, correct transducer selection, and accurate signal interpretation are all necessary to ensure valid results. Mistakes in any of these areas can lead to false readings or overlooked flaws.
Conclusion
The ultrasonic testing process plays a vital role in ensuring the safety, reliability, and quality of materials across multiple industries. By using high-frequency sound waves, UT helps detect internal flaws, measure thickness, and assess material integrity, all without causing any damage.
From surface preparation to data interpretation, each step in the ultrasonic testing procedure is essential for accurate results. While the method offers high sensitivity, immediate feedback, and broad application, it does require skilled operators and proper conditions to be truly effective.
Whether you’re in manufacturing, construction, or aerospace, understanding the UT step-by-step guide can help you make informed decisions about your testing strategy. As part of the wider NDT process, ultrasonic testing continues to be a reliable and efficient solution for modern inspection needs.
Key Points
- Ultrasonic testing (UT) uses high-frequency sound waves to detect internal flaws and measure material thickness without damaging the test object.
- UT is widely used in industries like manufacturing, aerospace, and construction for inspecting welds, castings, and composite materials.
- The step-by-step ultrasonic testing procedure includes surface preparation, equipment calibration, transducer selection, inspection, data analysis, and reporting.
- Proper surface cleaning and smoothness are crucial for effective sound wave transmission during UT inspections.
- Calibration of the ultrasonic equipment ensures accurate results and typically involves adjusting settings between 1 MHz and 5 MHz using reference standards.
- Technicians choose different types of transducers and couplants based on the testing material and inspection requirements.
- During inspection, the transducer is moved systematically, and signal reflections on the display are analyzed for flaws or irregularities.
- UT provides real-time results, helping teams make fast, informed decisions in quality control and maintenance settings.
- Advantages of UT include its non-destructive nature, high sensitivity to small flaws, and wide application range, while limitations include sensitivity to surface conditions and the need for skilled operators.
- UT is a critical part of the non-destructive testing (NDT) process, supporting safe and reliable operation of structures and equipment in various industries.
FAQs
What are the components of ultrasonic testing?
A typical ultrasonic testing system includes three key parts: the pulser/receiver, the transducer, and a display screen. The pulser sends out high-voltage signals that energize the transducer, causing it to emit high-frequency sound waves, usually between 0.1 and 15 MHz, which are beyond the range of human hearing.
What are the two types of ultrasonic inspection?
There are several ultrasonic testing methods, but the two commonly used types include:
- Pulse-Echo Testing – This method sends sound waves into the material and analyzes the echoes that return to detect flaws.
- Phased Array Ultrasonic Testing (PAUT) – Uses multiple elements to steer and focus the ultrasonic beam electronically, allowing detailed and flexible inspections.
Other advanced methods include Time-of-Flight Diffraction (TOFD), Immersion Testing, and Guided Wave Testing, depending on the inspection requirements.
