Ultrasonic Thickness Testing in Railway Inspection

How can we ensure that railway tracks remain safe and reliable without causing damage during inspections? Ultrasonic thickness testing offers a powerful solution by providing accurate measurements of rail and metal thickness without harming the materials.

This non-destructive thickness check method helps detect wear and corrosion early, ensuring that railways stay strong and safe for daily operations.

In this article, you will learn how ultrasonic thickness testing works and why it is essential for rail thickness checks and track thickness inspection.

We will explore the advantages of ultrasonic measurement, its application in railway maintenance, and the benefits it brings to metal thickness testing in the rail industry. By the end, you’ll understand why this method is a trusted tool for maintaining railway safety efficiently and effectively.

Why Thickness Testing is Crucial for Rail Safety

Rail safety depends heavily on maintaining proper rail thickness. Over time, rails endure constant stress from heavy trains, weather conditions, and environmental factors such as moisture and chemicals.

These forces cause the metal to wear down or corrode, weakening the rail structure. Regular rail thickness check is essential to detect these changes early and prevent serious accidents such as derailments or track failures.

When metal thickness decreases, it creates weak spots prone to cracking or breaking under load. If these defects are not found in time, they can lead to rail fractures, putting passengers and cargo at risk. Therefore, routine thickness testing is critical for safe railway operations.

Common Issues Caused by Metal Wear and Corrosion in Rails

Metal wear and corrosion are the primary causes of rail thinning. Exposure to rain, snow, and other environmental elements accelerates corrosion, especially in areas where protective coatings wear off. Wear can also result from friction between the train wheels and rails. Together, these issues reduce the strength and durability of the rails, increasing the risk of failure.

Impact on Track Durability and Maintenance Costs

Loss of metal thickness impacts not only safety but also the longevity and cost-efficiency of railway tracks. Thin rails require more frequent repairs or complete replacement, which disrupts rail service and raises maintenance costs.

Proactive detection through thickness testing allows maintenance teams to schedule repairs before major damage occurs, extending the lifespan of rails and minimizing expensive downtime.

Key benefits of regular thickness testing include:

  • Early detection of corrosion and wear
  • Prevention of accidents due to rail failure
  • Lower maintenance and repair costs
  • Improved track durability and lifespan

Now that we know why thickness testing is so important, how does ultrasonic technology perform this task with such precision? Let’s explore.

How Ultrasonic Thickness Testing Works

Ultrasonic thickness testing uses high-frequency sound waves to measure the thickness of metal without causing any damage. The testing device sends ultrasonic pulses into the rail, which travel through the metal until they reach the opposite surface or any internal flaw.

The waves then reflect back to the probe. By measuring the time it takes for the echo to return, the device calculates the thickness based on the known speed of sound in metal.

This technique allows inspectors to quickly get precise measurements, even on curved or hard-to-reach rail surfaces.

Equipment Used for Ultrasonic Thickness Testing

Typical ultrasonic thickness testing equipment includes:

  • Portable thickness gauges that display readings instantly
  • Probes designed to fit rail shapes and surfaces
  • Couplant gel to improve sound transmission between the probe and rail
  • Calibration blocks for ensuring measurement accuracy

These tools are lightweight and easy to carry along railway tracks, enabling quick spot checks or full-length inspections.

Advantages of Ultrasonic Testing Over Other Methods

Ultrasonic thickness testing offers several advantages compared to traditional or destructive methods:

  • It is a non-destructive thickness check, leaving rails intact
  • Provides high accuracy and reliability in thickness measurement
  • Fast testing process with immediate results
  • Can be used on rails without dismantling or interrupting train operations
  • Detects internal flaws along with thickness variations

Because of these benefits, ultrasonic testing is becoming the standard approach for track thickness inspection and metal thickness testing in the railway industry.

What does this mean in practice for rail maintenance teams and safety standards? The next sections will dive into real-world applications and the advantages ultrasonic testing brings to railway inspection.

Application of Ultrasonic Thickness Testing in Railway Inspection

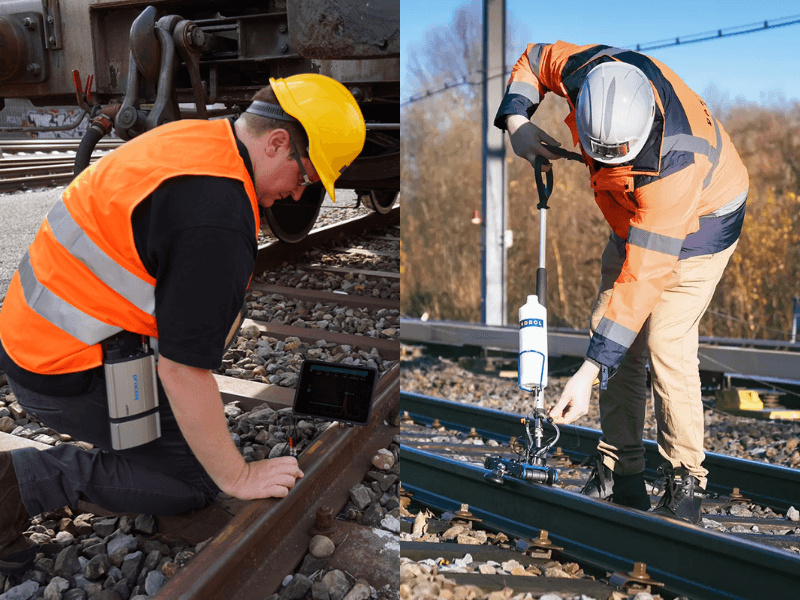

Ultrasonic thickness testing in railway inspection follows a straightforward procedure that ensures accurate and efficient measurements. First, the inspector cleans the rail surface to remove dirt or rust that could affect the ultrasonic signal. Next, a couplant gel is applied to the rail to help the ultrasonic waves transmit smoothly between the probe and the metal.

The ultrasonic probe is then placed firmly on the rail surface, and the device sends high-frequency sound waves into the metal.

The gauge measures the time it takes for the echo to return from the opposite side or any internal defect, instantly displaying the thickness. This process is repeated along different points of the track to get a comprehensive map of the rail thickness.

Types of Metals and Rail Components Tested

Ultrasonic thickness testing is commonly used on various metals and rail components, including:

  • Steel rails, which form the main running surface
  • Welded joints between rail segments
  • Rail fasteners and clips
  • Supporting metal parts such as fishplates and tie plates

The versatility of ultrasonic measurement allows inspectors to check the integrity of many components critical to track stability.

Frequency and Timing of Inspections

The timing of inspections depends on rail usage, environmental conditions, and safety standards. Typically, railways perform thickness checks:

  • During routine maintenance cycles
  • After extreme weather events or heavy usage periods
  • When wear or corrosion is suspected based on visual inspection or other indicators

Regular rail thickness check using ultrasonic tools ensures ongoing safety and helps schedule repairs before problems escalate.

With an understanding of how ultrasonic testing is applied, it’s important to consider why it has become a preferred choice in rail maintenance. Let’s look at the key benefits it offers.

Benefits of Using Ultrasonic Thickness Testing for Rail Maintenance

One of the greatest advantages of ultrasonic thickness testing is its high accuracy. The technology detects even small changes in thickness, helping maintenance teams catch wear and corrosion before they cause failure. This reliable measurement means fewer surprises and safer tracks.

Non-Destructive Nature Preserving Rail Integrity

Unlike some inspection methods that require cutting or damaging the rail, ultrasonic testing is a non-destructive thickness check. It keeps the rail intact, allowing for frequent testing without harming the track. This preserves the rail’s structural integrity and reduces repair costs linked to inspection damage.

Fast and Efficient Inspection Process

Ultrasonic thickness testing tools provide instant readings, making the inspection process much faster than traditional methods. Inspectors can quickly move along the track and gather data from many points in a short time. This efficiency allows for more frequent inspections, which improves overall rail safety and maintenance planning.

These benefits make ultrasonic thickness testing an invaluable tool for railway operators. In the following sections, we will explore how to interpret testing results and integrate them into effective maintenance strategies.

Challenges and Limitations

While ultrasonic thickness testing is a powerful tool for railway inspection, field conditions can introduce challenges. Railway environments are often noisy, dusty, and exposed to weather none of which are ideal for precise measurements. Rain or extreme cold can affect the couplant’s performance, while vibrations from nearby train traffic may interfere with signal stability.

Additionally, uneven terrain or limited access to certain track sections can make it difficult to place the ultrasonic probe correctly. These factors can reduce the accuracy and consistency of track thickness inspection results unless carefully managed.

Surface Condition and Its Effect on Measurements

For ultrasonic signals to travel effectively into the rail, the surface needs to be clean, smooth, and free of rust or paint. However, many rail components suffer from surface corrosion, wear, or contamination. These imperfections can:

  • Scatter or absorb the ultrasonic waves
  • Create false readings or mask actual thinning
  • Require additional preparation time before testing

Without proper cleaning and preparation, metal thickness testing results may be unreliable or misleading. This adds time and effort to the inspection process, especially in large rail networks.

Need for Skilled Operators

Despite advances in technology, ultrasonic testing still requires skilled personnel. Interpreting the readings correctly, identifying flaws, and recognizing abnormal patterns depend on operator experience. A minor mistake in probe placement or reading interpretation can lead to inaccurate results or missed issues.

Operators must be trained to:

  • Calibrate equipment correctly
  • Recognize when a reading is distorted by surface conditions
  • Understand the physics behind ultrasonic measurement
  • Troubleshoot issues on the spot

Without trained technicians, the reliability of ultrasonic thickness testing decreases significantly.

Conclusion

Rail safety isn’t just about strong materials and solid construction, it’s about vigilance. With thousands of tons of steel moving across tracks every day, even the smallest flaw in rail thickness can lead to serious consequences. That’s where ultrasonic thickness testing becomes more than a maintenance tool, it becomes a safety net.

By making it possible to look inside the rails without tearing them apart, this method helps railway professionals stay ahead of wear, corrosion, and hidden damage. It doesn’t just measure, it reveals what the eye can’t see and what the train can’t feel until it’s too late.

Of course, no inspection method is without its hurdles. Rough surfaces, harsh environments, and the need for trained hands all come with the territory. But as technology improves and teams become better equipped, these challenges are becoming easier to manage. The payoff? Safer tracks, longer-lasting infrastructure, and peace of mind for those who depend on the rails every day.

Key Points

  • Ultrasonic thickness testing is a non-destructive method used to measure rail thickness and detect internal wear or corrosion without damaging the track.
  • Regular rail thickness checks help prevent accidents by identifying thinning rails before they become hazardous.
  • Common issues like metal fatigue, rust, and corrosion can reduce track durability and increase long-term maintenance costs.
  • Ultrasonic testing works by sending high-frequency sound waves through the rail and measuring the time it takes for the echo to return, indicating material thickness.
  • Specialized equipment, including ultrasonic gauges and probes, are used for metal thickness testing on various rail components like steel rails, joints, and clips.
  • Compared to other inspection methods, ultrasonic testing is more accurate, faster, and preserves the integrity of the rail.
  • It is used during routine maintenance, after extreme weather, or when damage is suspected, ensuring timely and targeted repairs.
  • Track thickness inspection using ultrasonic tools can be affected by rough surfaces, harsh weather, and inaccessible locations, requiring extra preparation and care.
  • Skilled operators are essential for proper calibration, interpretation, and troubleshooting during ultrasonic measurement.
  • Despite challenges, the benefits, speed, accuracy, and non-destructive inspection, make ultrasonic thickness testing vital for modern rail safety and infrastructure management.

FAQs

Can ultrasonic thickness testing measure through coatings or paint on rails?
Yes, certain ultrasonic thickness gauges are designed to measure metal thickness through coatings or paint layers. These devices use specific modes or features to differentiate between the coating and the metal substrate, allowing accurate measurements without removing the coating.

What is the minimum and maximum thickness that can be measured using ultrasonic testing?
Ultrasonic testing can measure a wide range of thicknesses. Typically, the minimum measurable thickness is around 1 mm, while the maximum can extend up to several meters, depending on the material and the equipment used.

How does temperature affect ultrasonic thickness measurements?
Temperature can influence the speed of sound in materials, which in turn affects ultrasonic measurements. Higher temperatures generally decrease the material’s sound velocity, potentially leading to inaccurate readings if not compensated for. Therefore, it’s important to calibrate the equipment considering the operating temperature.
