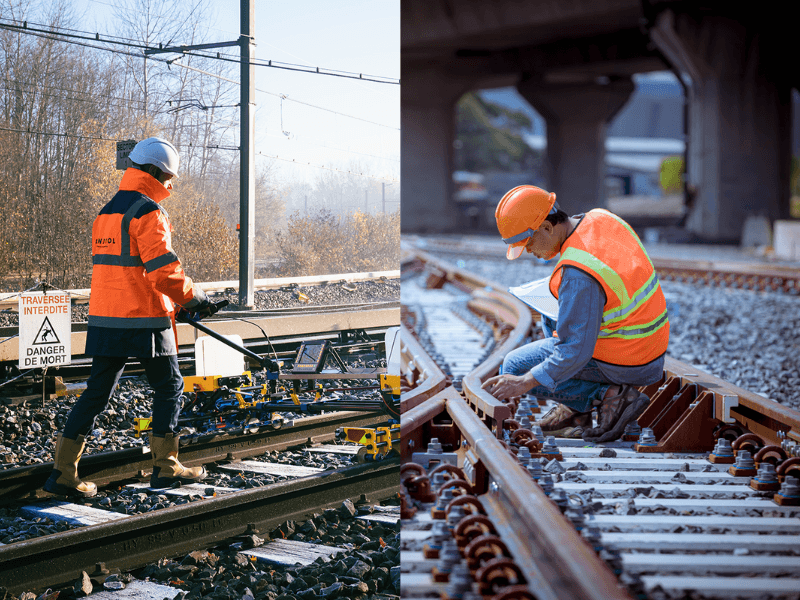

Railway safety is a critical concern worldwide, where even the smallest flaw in tracks can lead to serious accidents. When it comes to detecting these flaws, the debate between Ultrasonic vs Visual Inspection methods has gained significant attention in the rail industry.
This article will explore both inspection techniques in detail, comparing their strengths and weaknesses. You’ll learn how ultrasonic inspection railway tracks work versus traditional visual methods, and discover which approach offers better reliability for maintaining safe railways.
Whether you’re interested in manual rail inspection vs automated testing or want a clear rail inspection techniques comparison, this guide has you covered.
Visual Inspection for Railway Tracks
Visual inspection is one of the oldest and most common methods used for checking railway track conditions. In this process, experienced inspectors walk along the tracks, looking closely for visible signs of wear, cracks, misalignment, or other defects. This method follows established visual inspection railway standards to ensure safety and reliability.
Key steps in manual rail inspection include:
- Visual examination: Inspectors look for surface cracks, corrosion, and track geometry issues.
- Use of simple tools: Handheld gauges, flashlights, and sometimes magnifying glasses help identify defects.
- Recording observations: Inspectors document any damage or irregularities found during the inspection.
Despite its long-standing use, manual visual inspection depends heavily on the inspector’s skill and attention to detail. It is time-consuming and may miss internal flaws hidden beneath the surface.
Strengths and Limitations of Visual Inspection
Visual inspection offers several advantages:
- Low cost: Requires minimal equipment and can be performed with little training.
- Immediate detection: Visible defects such as broken ties or loose bolts are quickly identified.
- Simplicity: Easy to implement anywhere without advanced technology.
However, there are important limitations:
- Surface-only detection: Internal cracks or flaws beneath the rail surface often go unnoticed.
- Human error: Fatigue or oversight can lead to missed defects.
- Slower process: Walking and inspecting manually limits the speed of track checks.
Given these constraints, many rail operators have turned to more advanced methods. This brings us to the next level of rail inspection, the high-tech world of ultrasonic testing. So, what makes ultrasonic inspection different and potentially better? Let’s find out.
Ultrasonic Inspection of Railway Tracks
Ultrasonic inspection uses high-frequency sound waves to detect flaws inside the rail material that are invisible to the naked eye. These waves are sent into the rail, and reflections from internal cracks or defects are recorded and analyzed.
The process includes:
- Transmitting ultrasonic pulses: A probe sends sound waves into the rail at specific angles.
- Receiving echoes: Flaws reflect these waves back differently than intact metal.
- Interpreting signals: Specialized equipment translates echoes into images or signals for inspectors to review.
This method allows for the detection of internal flaws such as cracks, inclusions, and voids before they become visible or cause serious problems.
Automated Testing vs Manual Ultrasonic Inspection
Ultrasonic inspection can be done manually or with automated systems:
- Manual ultrasonic inspection:
- Operators move probes by hand along the rail.
- Requires skilled technicians to interpret results in real time.
- Suitable for spot checks or smaller track sections.
- Automated testing:
- Uses machines or rail cars equipped with ultrasonic sensors.
- Covers long distances faster and with consistent accuracy.
- Data is recorded for detailed post-inspection analysis.
The choice between manual and automated testing depends on resources, track length, and inspection frequency.
Benefits and Challenges of Ultrasonic Inspection Railway Tracks
Benefits include:
- Deep flaw detection: Finds internal defects missed by visual inspection.
- Increased safety: Early identification of hidden problems reduces risk of accidents.
- Efficiency: Automated systems can inspect large sections quickly.
Challenges to consider:
- Cost: Equipment and training for ultrasonic inspection can be expensive.
- Complex interpretation: Requires skilled technicians to analyze data correctly.
- Environmental factors: Dirt, rust, or moisture on rails can affect results.
With both visual and ultrasonic methods having their own pros and cons, the question remains: which inspection method truly offers the best balance of safety and efficiency for railway maintenance? The answer lies in comparing these methods side-by-side, and that’s exactly what we’ll explore next in the Ultrasonic vs Visual Inspection debate.
Comparison of Ultrasonic and Visual Inspection
Both ultrasonic and visual inspection methods are widely used to monitor the condition of railway tracks, but they work in very different ways.
To decide which method is more effective for railway safety, it’s important to compare their accuracy, efficiency, and ability to detect flaws. This section breaks down how each technique performs and where each one has the upper hand.
Accuracy, Efficiency, and Detection Capabilities
When comparing Ultrasonic vs Visual Inspection, three major factors come into play: how accurately each method detects flaws, how efficiently it works across rail networks, and what types of defects each can uncover.
Ultrasonic inspection is highly accurate when it comes to identifying internal rail defects, such as cracks or voids beneath the surface. This is something visual inspection simply can’t detect, as it focuses only on visible, surface-level damage. In contrast, visual inspection can catch external issues like broken fasteners, missing bolts, corrosion, or visible wear, but anything beneath the surface may go unnoticed.
In terms of efficiency, visual inspection is labor-intensive and slow. Inspectors must walk along the track and closely examine each section. It works, but it takes time and effort. Ultrasonic inspection, especially when automated, covers long distances quickly.
Automated systems can scan large sections of track in a fraction of the time it takes a manual team to inspect the same stretch. Even manual ultrasonic inspections, although slower than automated ones, are faster and more thorough than visual methods for detecting internal damage.
To summarize the capabilities:
- Ultrasonic inspection:
- Detects both surface and internal flaws
- High accuracy and repeatability
- Faster when automated
- Visual inspection:
- Detects surface-level defects only
- Dependent on inspector experience
- Slower and more prone to human error
So, while both methods have their strengths, ultrasonic testing clearly leads when it comes to detecting hidden problems that could pose major safety risks.
Manual Rail Inspection vs Automated Testing
The debate doesn’t end with Ultrasonic vs Visual Inspection, there’s also a key difference in how inspections are carried out: manually or through automation.
Manual inspections, whether visual or ultrasonic, involve trained workers physically moving along the track. They use handheld tools and rely heavily on skill and judgment. While this method offers flexibility and is useful for smaller sections or targeted inspections, it’s time-consuming and varies in quality depending on the inspector.
Automated ultrasonic testing, on the other hand, uses specialized rail-mounted equipment to perform inspections at speed. These systems can scan thousands of feet of track in a single run, collect data, and flag defects for further review. The consistency and objectivity offered by machines reduce the chance of oversight or missed flaws.
Key points to consider:
- Manual inspection:
- Requires more time and labor
- Can be inconsistent due to fatigue or varying skill levels
- Useful for areas machines can’t reach
- Automated testing:
- High-speed, high-accuracy inspections
- Reduces human error
- Ideal for large-scale or routine scanning
The choice between manual and automated testing depends on available resources, the size of the rail network, and how often inspections are scheduled.
Rail Inspection Techniques Comparison
Both ultrasonic and visual inspection techniques play important roles in railway safety, but they are best suited for different needs. Visual inspection remains valuable for spotting immediate, surface-level issues like missing hardware or signs of surface damage. It’s also more accessible, requiring less equipment and setup.
However, ultrasonic inspection offers a deeper, more technical layer of protection. It identifies internal flaws before they become dangerous, making it ideal for preventive maintenance. Automated ultrasonic systems, in particular, enable frequent and thorough checks without slowing down rail operations.
In summary:
- Visual inspection is simple, low-cost, and effective for obvious defects.
- Ultrasonic inspection, especially automated, is faster, more accurate, and essential for detecting hidden structural weaknesses.
As you’ll see in the next section, combining these methods may offer the most comprehensive approach to maintaining safe and reliable railway systems.
Conclusion
Railway safety depends on regular, accurate inspections, and choosing the right method can make all the difference. In the comparison of Ultrasonic vs Visual Inspection, each approach has unique strengths.
Visual inspection is cost-effective and useful for detecting surface-level damage, but it relies heavily on human judgment and can miss hidden flaws. Ultrasonic inspection, on the other hand, provides a deeper look inside the rail and offers greater accuracy, especially when automated.
While ultrasonic testing stands out for its ability to detect internal defects and improve inspection speed, visual inspection still plays a vital role in day-to-day maintenance. The best safety outcomes often come from using both methods together, visual for quick checks and ultrasonic for detailed evaluations.
As rail networks grow and demand more efficient maintenance strategies, investing in advanced technologies like ultrasonic testing will be key to preventing accidents and maintaining long-term infrastructure health.
Key Points
- Ultrasonic vs Visual Inspection is a key debate in railway safety, comparing traditional surface-level methods with advanced internal flaw detection.
- Visual inspection involves manual checking of tracks for visible defects using basic tools, following set railway standards.
- This method is cost-effective and simple but limited to detecting only surface-level damage and is prone to human error.
- Ultrasonic inspection uses high-frequency sound waves to detect internal rail flaws that cannot be seen during visual checks.
- It can be performed manually or through automated testing, with automated systems offering faster and more consistent results.
- Ultrasonic flaw detection in rail is more accurate and reliable, especially for identifying cracks, voids, and internal defects.
- Manual rail inspection is slower and less consistent compared to automated ultrasonic testing, which increases efficiency and data accuracy.
- Rail inspection techniques comparison shows visual inspection is useful for surface issues, while ultrasonic testing is better for deeper, hidden problems.
- The best rail safety strategy often combines both methods, visual for quick, low-cost checks and ultrasonic for in-depth inspections.
- As rail networks expand, integrating automated ultrasonic inspection will be essential for maintaining track safety and preventing failures.
FAQs
How does automated ultrasonic track inspection work compared to manual?
Automated systems mount ultrasonic sensors on rail vehicles to scan long stretches of track quickly and consistently. Data is recorded for detailed analysis later. Manual ultrasonic inspection, by contrast, requires operators to move handheld probes along the rail and interpret readings in real time
Can visual inspection detect internal rail flaws?
No. Visual inspection only identifies surface-level defects, such as cracks and corrosion, and cannot detect internal issues that may lead to rail failure
Why combine ultrasonic and visual inspection in rail safety?
Combining visual and ultrasonic methods gives a more comprehensive safety strategy. Visual inspections quickly reveal surface issues like loose fasteners and corrosion, while ultrasonic testing uncovers hidden flaws. Using both ensures rail integrity is monitored on all levels .
