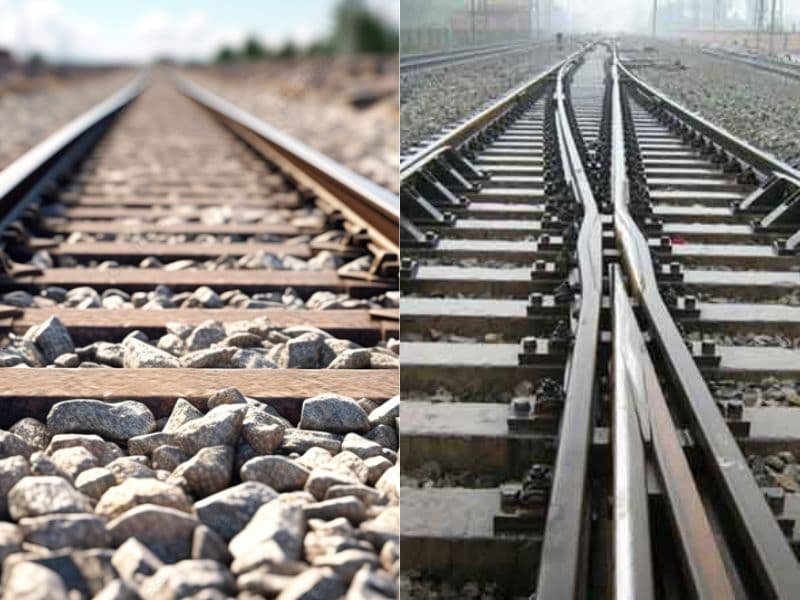

Types of Railway Tracks: Guide to Rail Systems and Their Uses

Railway tracks form the backbone of rail transportation, ensuring safe and efficient movement of trains across cities and countries. Different types of railway tracks are designed to handle various speeds, loads, and environments, from high-speed bullet trains to industrial freight lines.

Understanding the differences helps in choosing the right track system for specific needs, whether for urban transit, heavy cargo, or long-distance travel.

This article will break down the types of railway tracks, covering their classification, materials, and construction methods. You’ll learn about railway track classification, the difference between ballast and non-ballast tracks, and the materials that make up modern rail systems.

Whether you’re curious about high-speed railway tracks or specialized railways for industrial use, this guide will provide clear insights into how different tracks support efficient rail operations.

Railway Track Classification

Railway tracks are classified based on operational speed, usage, and structural design. Understanding these classifications helps determine the best track type for different rail systems, including freight, passenger, and high-speed railway tracks.

The classification system ensures that tracks are built to handle the specific demands of trains running on them, improving safety, efficiency, and durability.

One of the most widely recognized systems for railway track classification is the Federal Railroad Administration (FRA) track classes used in the United States.

The FRA classifies railway tracks into several categories based on the maximum allowable speed for both freight and passenger trains. These classifications help regulate maintenance standards, ensuring tracks remain in optimal condition.

FRA Track Classes and Speed Limits

The FRA defines track classes from Class 1 to Class 9, with higher numbers representing tracks that can support faster speeds. Here’s a breakdown of the key classes and their corresponding speed limits:

Class 1 – Allows freight trains up to 10 mph and passenger trains up to 15 mph. Typically used for low-traffic or industrial tracks.
Class 2 – Supports freight trains up to 25 mph and passenger trains up to 30 mph. Found on branch lines and secondary routes.
Class 3 – Permits freight speeds of 40 mph and passenger speeds of 60 mph. Commonly used for regional and commuter rail lines.
Class 4 – Allows freight trains up to 60 mph and passenger trains up to 80 mph. Found on mainline routes.
Class 5 – Supports freight trains up to 80 mph and passenger trains up to 90 mph. Used for high-density passenger corridors.
Class 6 to Class 9 – Designed for high-speed railway tracks, with passenger train speeds ranging from 110 mph (Class 6) to over 200 mph (Class 9). These tracks use advanced railway track materials and construction techniques to withstand high speeds.

Each classification dictates specific maintenance requirements, rail quality, and track structure, ensuring trains operate safely at designated speeds. Whether for heavy freight loads or high-speed passenger travel, selecting the right railway track classification is crucial for efficient rail operations.

Rail Gauges

Rail gauge refers to the distance between the inner sides of two parallel railway tracks. It is a crucial factor in railway track classification, as it affects the stability, speed, and compatibility of trains operating on different track systems. The choice of rail gauge depends on factors like terrain, construction costs, and the type of rail service required.

Types of Rail Gauges

Standard Gauge (1435 mm): The most widely used gauge worldwide, including in the U.S., Europe, and China, provides a balance between speed, stability, and cost-efficiency and commonly found in high-speed railway tracks and modern passenger rail networks.
Narrow Gauge (Less than 1435 mm, typically 600 mm to 1067 mm): Used in mountainous regions, industrial railways, and older rail networks, lower construction costs and ability to navigate sharp curves, found in specific regions like India, South Africa, and Japan for local and tourism-based railways.
Broad Gauge (More than 1435 mm, typically 1520 mm to 1676 mm): Used in countries like Russia, India, and Spain for added stability and heavy freight transport, Supports higher speeds and larger train capacities, and more expensive to build but allows for comfortable, long-distance travel.

Impact of Gauge Variations on Train Operations

Interoperability Issues: Trains built for one gauge cannot operate on another without modifications or special infrastructure, such as track gauge changers.
Speed and Stability: Broader gauges provide better stability at high speeds, making them ideal for high-speed railway tracks, while narrow gauges are more suited for rugged terrains.
Freight Capacity: Wider gauges support heavier loads, making them preferable for freight transport.
Construction and Maintenance Costs: Narrow-gauge tracks are cheaper and easier to build but may not support high-speed or heavy rail operations.

Rail gauge selection plays a significant role in determining how railway tracks function in different environments, affecting both passenger and freight transportation efficiency.

Types of Railway Tracks by Construction

Ballast vs. Non-Ballast Tracks

Railway tracks are constructed using either a ballasted or non-ballasted (slab) track system. Each system has unique characteristics, advantages, and applications, making them suitable for different railway operations.

The choice between the two depends on factors such as maintenance requirements, operational speed, load-bearing capacity, and environmental conditions.

Ballasted Tracks

Ballasted tracks are the traditional and most widely used railway track system. They consist of rails supported by sleepers (ties), which rest on a bed of crushed stones known as ballast. The ballast layer plays a crucial role in distributing loads, absorbing vibrations, and providing drainage.

Advantages of Ballasted Tracks

Cost-effective – Initial construction costs are lower than non-ballasted systems.
Good drainage – The ballast allows water to drain effectively, preventing track flooding and damage.
Shock absorption – The stone bed helps absorb vibrations and reduces track wear.
Ease of repair – Damaged sections can be replaced quickly without extensive construction work.

Disadvantages of Ballasted Tracks

High maintenance – Ballast requires frequent renewal and tamping to maintain track stability.
Prone to displacement – Heavy train loads and weather conditions can cause ballast stones to shift.
Dust and noise – Ballast movement generates dust, and train operations produce more noise compared to slab tracks.

Ballasted tracks are commonly used for freight rail, conventional passenger rail, and rural railway lines where cost and ease of maintenance are key considerations.

Non-Ballasted (Slab) Tracks

Non-ballasted or slab tracks use a concrete or asphalt foundation instead of a ballast bed. The rails are fixed directly onto this rigid structure, offering a more stable and long-lasting track system. This type of track is commonly used in high-speed railways, metro systems, and tunnels where precision, durability, and minimal maintenance are required.

Advantages of Non-Ballasted Tracks

Lower maintenance – Requires minimal upkeep since there is no ballast to renew or adjust.
Greater stability – The rigid foundation prevents track deformation, ensuring smooth and precise train operations.
Ideal for high-speed rail – Reduces vibrations and improves ride comfort at high speeds.
Better performance in tunnels and bridges – Does not require deep foundations, making it suitable for confined spaces.

Disadvantages of Non-Ballasted Tracks

High initial cost – Construction requires more investment in materials and labor.
Difficult repairs – Damage to slab tracks is more complex and costly to fix compared to ballasted tracks.
Limited shock absorption – Lacks the natural cushioning effect of ballast, which may increase stress on rolling stock.

Non-ballasted tracks are preferred for urban metro lines, high-speed railways, and railway systems in extreme environments where long-term durability and precision are more critical than cost.

Choosing the Right Track Type

The selection of ballasted vs. non-ballasted tracks depends on several factors:

Operational Speed – High-speed rail networks favor slab tracks for their stability and low maintenance.
Load Requirements – Heavy freight railways often use ballasted tracks due to their flexibility and cost-effectiveness.
Environmental Conditions – Areas with heavy rainfall, loose soil, or tunnels may require non-ballasted tracks for durability.
Maintenance Considerations – If regular maintenance is challenging, slab tracks provide a better long-term solution.
Budget Constraints – Ballasted tracks are more affordable for initial construction, while slab tracks are costlier but offer long-term savings.

Both track systems have their advantages, and rail operators choose based on specific needs, ensuring efficiency, safety, and cost-effectiveness in railway infrastructure.

High-Speed Railway Tracks

High-speed railway tracks are specifically designed to support trains traveling at speeds exceeding 250 km/h (155 mph). These tracks must be constructed with precision, using advanced materials and techniques to ensure stability, safety, and minimal maintenance.

Unlike conventional railway tracks, high-speed rail systems require specialized track layouts, reinforced components, and optimized design features to accommodate the immense forces generated by high-speed travel.

Key Design Features of High-Speed Railway Tracks

High-Quality Steel Rails – Made from premium-grade steel, these rails are stronger and more resistant to wear and deformation, ensuring a longer lifespan and better durability under extreme operational conditions.
Pre-Stressed Concrete Sleepers – These sleepers provide superior track stability by distributing train loads more evenly, reducing track movement, and minimizing maintenance needs.
Non-Ballasted (Slab) Track Design – Unlike traditional ballasted tracks, slab tracks use a solid concrete foundation, which enhances track durability, reduces vibrations, and minimizes maintenance, making them ideal for high-speed applications.
Optimized Curves and Gradients – High-speed rail tracks are designed with gentle curves and minimal gradients to allow smooth acceleration and braking, ensuring passenger comfort while reducing lateral forces that could affect train stability.

Materials and Construction Techniques:

Continuously Welded Rails (CWR) – High-speed railway tracks use long, continuously welded rails to eliminate joints, reducing vibrations, noise, and mechanical stress on both the train and the track. This improves overall ride quality and track longevity.
Advanced Damping Systems – These systems incorporate elastic pads, vibration absorbers, and sound barriers to minimize track noise, enhance passenger comfort, and extend the lifespan of the rail infrastructure.
Electrification Systems – Overhead catenary wires provide a continuous and efficient power supply to high-speed trains, enabling smooth, uninterrupted travel while reducing environmental impact compared to diesel-powered trains.

High-speed railway tracks represent the future of modern rail transportation, combining cutting-edge engineering, innovative materials, and efficient construction techniques to enable safe, rapid, and reliable travel across long distances.

Railway Track Materials

The durability and performance of railway tracks depend significantly on the materials used in their construction. Each component, rails, sleepers (ties), and fastenings, plays a crucial role in maintaining track stability, ensuring smooth train operations, and reducing maintenance requirements.

The choice of materials impacts factors such as longevity, load-bearing capacity, and resistance to environmental conditions.

1. Rails

Rails are the most critical component of railway tracks, providing a continuous and stable surface for trains to move on. They are typically made from high-carbon steel, which offers high tensile strength, durability, and resistance to wear. The steel undergoes heat treatment to enhance hardness and reduce the risk of deformation under heavy loads.

High-carbon steel rails – Offer exceptional durability and resistance to fatigue.
Alloy steel rails – Include additional elements such as manganese to improve strength and corrosion resistance.
Head-hardened rails – Undergo special heat treatment to withstand high-speed and heavy-load applications.

Rails must be able to endure constant pressure, friction, and thermal expansion while maintaining a precise alignment to ensure safety and efficiency in railway operations.

2. Sleepers (Ties)

Sleepers, also known as railroad ties, provide support to the rails by maintaining proper gauge spacing and distributing the load from passing trains. They are made from various materials, each with its own advantages and limitations.

Wooden Sleepers: traditional choice, widely used in older rail networks, offer good shock absorption but require frequent maintenance due to susceptibility to weathering, rotting, and pest damage, and treated with preservatives to extend lifespan.
Concrete Sleepers: Common in modern rail systems, especially in high-speed and heavy-haul lines, provide excellent stability and durability but are heavier, requiring stronger foundations, and low maintenance and resistant to environmental factors.
Steel Sleepers: Lightweight yet strong, making them suitable for certain track sections, corrosion-resistant coatings enhance longevity, though they may still degrade in humid environments, and less commonly used due to higher material costs.
Composite Sleepers: Made from a mix of recycled plastics and other synthetic materials, environmentally friendly, resistant to decay, and require minimal maintenance, and higher initial cost but offer long-term durability.

The selection of sleeper materials depends on factors such as track type, operational speed, budget constraints, and environmental conditions.

3. Fastenings

Rail fastenings are essential components that secure rails to sleepers, preventing movement and maintaining track stability. They absorb vibrations, distribute loads, and help reduce wear on rails and sleepers.

Pandrol clips – Spring steel clips that firmly hold rails in place, commonly used in modern railway systems.
Screw spikes – Provide strong fastening for wooden sleepers but require periodic tightening.
Elastic fastenings – Absorb shocks and vibrations, improving ride quality and track longevity.
Fishplates (Joint Bars) – Connect rail sections together, though increasingly replaced by continuously welded rails.

Fastening systems must be carefully selected to match track design, operational requirements, and maintenance capabilities.

Specialized Track Types

In addition to standard railway tracks, specialized track types are used for specific industrial and urban applications. These tracks are designed to accommodate unique operational needs, such as handling heavy loads in industrial environments or integrating with city infrastructure for light rail transit.

Crane Rails

Crane rails are specialized tracks used in industrial settings to support the movement of heavy-duty cranes. These tracks must be able to bear extreme loads and provide precise alignment for crane operations in environments such as shipping ports, steel mills, and warehouses.

Typically made from high-strength steel to withstand continuous stress and impact.
Installed with reinforced foundations to prevent rail deformation under heavy loads.
Used for gantry cranes, container cranes, and overhead crane systems.

These rails ensure smooth and efficient movement of cranes, playing a vital role in industrial logistics and material handling.

Embedded Tracks

Embedded tracks are designed for use in urban transit systems such as trams and light rail networks. Unlike traditional railway tracks, these tracks are embedded into road surfaces, allowing trains to operate alongside road traffic.

Construction – The rails are set into concrete or asphalt, ensuring a smooth and durable surface that integrates seamlessly with city streets.
Application – Commonly found in tramways, streetcar systems, and guided busways in urban environments.
Advantages – Reduces noise pollution, enhances aesthetic appeal, and minimizes disruption to pedestrian and vehicular traffic.

Embedded tracks provide a practical solution for public transportation in densely populated areas, offering a safe and efficient way to integrate rail transit with city infrastructure.

Conclusion

Railway tracks are the backbone of modern transportation, supporting everything from heavy freight trains to high-speed rail networks. The choice of track type, construction method, and materials depends on factors such as operational speed, durability, maintenance requirements, and environmental conditions.

Whether it’s the traditional ballasted tracks, the precision of non-ballasted systems, or the specialized tracks used in industrial and urban settings, each plays a vital role in ensuring efficient and safe rail operations.

As railway technology advances, so does the innovation in track design and construction. High-speed rail networks are expanding globally, demanding stronger and more resilient track systems, while urban transit systems continue to refine embedded track solutions for seamless city travel.

The future of railway infrastructure will likely see even greater improvements in materials, sustainability, and efficiency, making train travel faster, smoother, and more reliable.

Key Points

Railway tracks are classified based on operational speed and usage, with high-speed, freight, and urban transit tracks having distinct designs and requirements.
Rail gauges determine the width between rails, with standard, narrow, and broad gauges affecting train compatibility, speed, and stability.
Ballasted tracks use crushed stone to support sleepers and rails, offering cost-effectiveness and good drainage but requiring frequent maintenance.
Non-ballasted (slab) tracks rely on a rigid concrete or asphalt foundation, providing greater stability and lower maintenance, making them ideal for high-speed rail and metro systems.
High-speed railway tracks use specialized materials and construction techniques, such as continuously welded rails and pre-stressed concrete sleepers, to handle speeds over 250 km/h.
Railway track materials include steel rails, sleepers made from wood, concrete, steel, or composites, and fastening systems that ensure track stability.
Specialized track types, such as crane rails and embedded tracks, serve specific industrial and urban transport needs, ensuring efficient and safe operations.
Ballasted tracks are preferred for freight and conventional passenger rail, while non-ballasted tracks are chosen for high-speed and urban transit due to their durability and precision.
The selection between ballast and non-ballast tracks depends on speed, maintenance needs, cost, and environmental conditions, influencing long-term railway infrastructure decisions.
The future of railway tracks lies in improved materials, sustainability, and innovative designs, ensuring safer, faster, and more efficient rail transport globally.

FAQs

What is a 3 rail track?
A three-rail track includes an additional rail, known as the third rail, which supplies electric power to trains through a conductor positioned alongside the main tracks.
How many types of railways are there?
Railways play a crucial role in public transportation, linking cities, suburbs, and remote areas. Different railway systems, such as surface, elevated, underground, and tube railways, are designed to suit varying geographical conditions, population densities, and infrastructure requirements.
What is a 3 circuit track?
A three-circuit track lighting system features a track containing three independent electrical circuits, allowing multiple lights to be controlled separately within the same setup.
